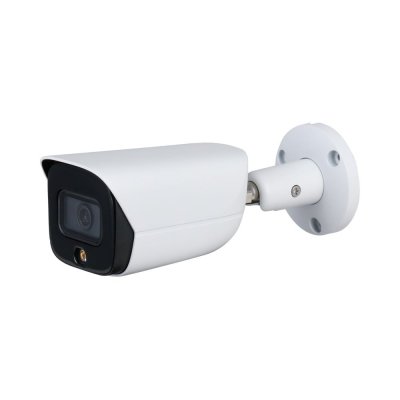

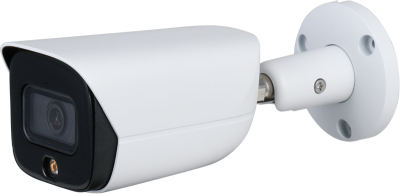

iMaxCamPro HNC3I149E-ASN1/28 | 4MP Full-color LED 2.8 Fixed Bullet IP Security Camera


Availability: In Stock
List Price: $315.00
SKU: WEC3I149E-ASN1/28
Product #: 117428
Camera Type: Fixed Bullet
Camera Resolution: 4 MP

Remote Login Support:

Bullet Networking / Internet Protocol Security Camera (IPC),1/2.7",4MP@30fps,2.8mm Fixed Lens, WDR, Starlight, Warm LED LED distance: 30 m 98ft, Full-color. video content analytics (VCA) for security IP camera: Line Crossing, Intrusion, Object detection, Scene change, SMD+, Perimeter Protection (PP), SD Slot, Built-in mic. UL Listed professional surveillance products.

  • · 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • · Outputs max. 4MP (2688 × 1520) @ 30 fps
  • · H.265 codec, high compression rate, ultra-low bit rate
  • · Built-in Warm LED, max. LED distance: 30 m 98ft,
  • · ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • · Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • · Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
  • · Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • · Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
  • · 12V DC/PoE power support
  • · IP67 protection
  • · SMD Plus
  • ·Full-color Starlight: Using high-performance sensors and a large aperture lens, even in locations with low light, these cameras can provide colorful images of the environment. In low light conditions exceeding 1 lux, Full-color Starlight Cameras are a suitable choice for environments such as big parking lots, city streets, schools, museums, etc. Note: Full-color Starlight Cameras cannot work in complete darkness.


More Information
Image Sensor 1/2.7”4Megapixel progressive CMOS
Image Size 2688(H) x 1520(V)
Electronic Shutter Auto/Manual, 1/3~1/100000s
Minimum Illumination

0.003 Lux @ F1.0

S/N Ratio More than 56dB
Smart IR Support
IR Distance Warm LED, max. LED distance: 30 m 98ft,
IR On/Off Control Auto/ Manual
Focal Length 3.6mm
Angle of View 3.6 mm: Horizontal 80° × vertical 43° × diagonal 95°
Max. Aperture F1.0
Close Focus Distance 3.6 mm
DORI Distance
Lens(mm) Detect(m) Observe(m) Recognize(m) Identify(m)
3.6mm 80.0 m (262.5 ft) 32.0 m (105.0 ft) 16.0 m (52.5 ft) 8.0 m (26.3 ft)
Pan / Tilt / Rotation Pan/Tilt/Rotation Range Horizontal:0°-360°;Vertical:0°-90°;Rotation:0°-360°
Video Compression H.265; H.264; H.264H; H.264B; MJPEG(only supported by the sub stream)
Video Resolution

4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 ×
1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704
× 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352
× 240)

Video Frame Rate

Main stream (2688 × 1520 @ 1–25/30 fps)
sub stream (704 × 576 @ 1–25/704 × 480 @ 1-30 fps)
third stream (1280 × 720 @ 1–25/30 fps)

Video Bitrate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day / Night Color/B/W
Wide Dynamic Range 120dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Digital Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest Yes (4 areas)
Defog Support
Mirror YES
Privacy Masking 4 areas
Audio Compression G.711a; G.711Mu; G726; AAC
AI Perimeter Protection Tripwire, intrusion (Recognition of vehicle and people)
Advanced AI Functions Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Network Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x;
Network Interoperability ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Network Max. Users 20 (Total bandwidth: 64M.)
Storage FTP; SFTP; Micro SD Card (support max. 256 G); Manufacturer's Cloud; NAS
Storage Card max. 256 G
Web Viewer IE: IE8; IE9; IE11 Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Mobile iPhone, Android
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power Supply 12V DC/PoE
Power Consumption < 8.4W
Operating Temperature -40°C to +60°C (-40°F to +140°F)/less than 95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Ingress Protection IP67
Dimensions 192.7 mm × 70.5 mm × 66.4 mm (632.2" × 231.3" × 217.8") (L × W × H)
Weight Net Weight 590 g (1.3 lb) Gross Weight 780 g (1.7 lb)

There have been no reviews
