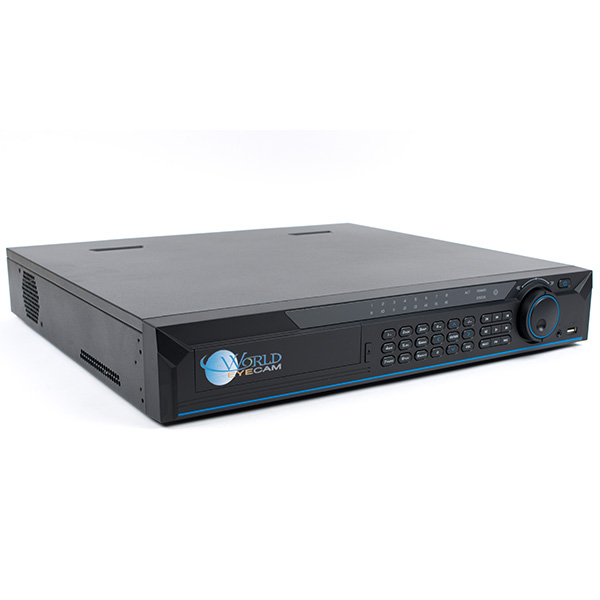

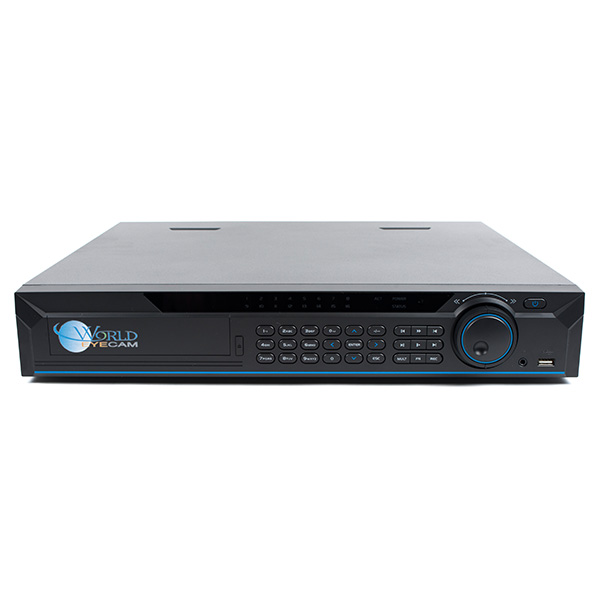

4Ch iMaxCamPro HD-SDI 1.5U DVR 1080p


Availability: In Stock
Ships Same Day
Product #: 83550
UPC: 683405211235

Hard Drive #1:
Hard Drive #2:
Hard Drive #3:
DVD Burner:
Remote Login Support:

This HD-SDI DVR has 4 internal SATA ports for up to 16TB of storage so users never have to erase important footage. The device records high definition 1080p resolution on all four channels and offers real time recording. It also comes with a dual core processor, smart video detection and 3D intelligent positioning for pan/tilt/zoom surveillance cameras. This DVR is easy to use but can still handle a large amount of high definition footage.


This four camera HDSDI DVR features:

  • 1.5U Case Allows for DVD-RW Drive/ Rack Mountable
  • 4 Channel HD-SDI Video with 1080p Realtime Live View
  • Dual Core CPU
  • H.264 Dual Stream Compression
  • HDMI, VGA, TV(BNC) Simultaneous Output
  • Live, Recording, Playback, Backup & Remote Access
  • All Channel Simultaneous Realtime Playback & Smart-search
  • Smart Video Detection; MD, Camera Blank, Video-Loss
  • 3D Intelligent Positioning with iMaxCam PTZ Cameras
  • Alarm triggering screen tips, buzzer, PTZ, E-Mail & FTP Upload
  • 4 Internal SATA Ports support 16TB of Storage
  • 1 eSATA
  • Built In Web Server, CMS (PSS) & imaxcam (Smart Phone)

Video Inputs 4 Channel BNC
Video Outputs HDMI, VGA & BNC
Audio Inputs 4 Channel BNC
Audio Outputs 1 Channel BNC
Two-way Talk 1 Channel Input, 1 Channel Output, BNC
Video Compression H.264
Recording Resolution 1080P(1920x1080), 720P(1280x720) D1(704x480), CIF(352x240)
Record Rate 120FPS@ 1080p
Bit Rate 256-8096 Kbps
Record Mode Manual, Schedule, MD, Camera Bank/Video Loss, Alarm
Trigger Events Recording, PTZ Movement, Tour, Alarm, Email, Spot Output
Motion Detection 22x18, 1-6 Sensitivity
Alarm Input 4 Channel
Relay Output 6 Channel
Playback Channel 1, 4, 9, 16 Channel Simultaneous Playback
Search Mode Time/Date, Alarm, Motion Detect and Exact Search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom
Backup Method eSATA, Flash Drive, USB HDD, Network Download
Network RJ-45 Port (10m/100m/1000m)
Network Function HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search
Remote Users Max 20 Users Simultaneously
Remote Operation Monitor, PTZ Control, Playback, System Setting, File Download, Log Info
HDD Interface 4 SATA Ports, Up tp 16TB, 1 eSATA
Monitor HDMI, VGA, BNC
Alarm I/O Screw Terminal
RS485 Screw Terminal
Network RJ-45 (10m, 100m, 1000m)
USB USB 2.0
IR Remote Control Standard
Power Requirements 100-240VAC 50/60Hz
Power Consumption 25-40W Without HDD
Operating Temperature -10° - 55°C
Operating Humidity 10-90% R Max
Case Size 1.5U - 325mm x 240mm x 50mm

There have been no reviews

Live Demo

Free Interactive Online Demo

Live Demo Request

First Name Last Name E-mail Phone DVR Interested in?
Enter Code

Anytime Anywhere

Mobile APPs

QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.

Easy remote Viewing
P2P/QR Code Easy Setup

To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.

You must check the box to enable P2P function and then click Apply to save at bottom of screen.


Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.


Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.



How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
