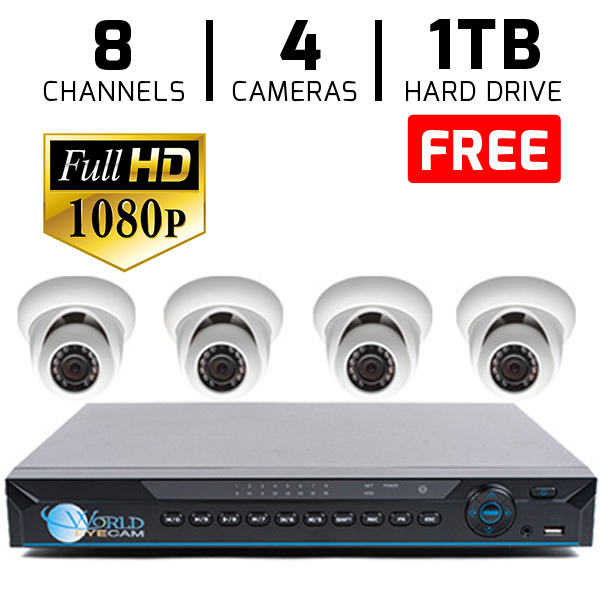

4 HD 1080p Security Dome 8Ch DVR Kit for Business Professional Grade


$599.00


Availability: In Stock
Ships Same Day
List Price: $2,000.00
SKU: IMAX-8CVI-4-CVIDE20-KIT
Product #: 86493
Manufacturer:
UPC: 881314694822
Shipping Lead Time: Ships Same Day

Hard Drive #1:
Hard Drive #2:
Monitor:
Cables:
Power:
Remote Login Support:
Quantity

This kit uses four HD-CVI dome security cameras. The surveillance cameras are able to record up to 30 frames per second with a 1080p resolution so users get the clearest images day and night. The kit will also include a 8 channel DVR, coaxial cable and power supply. Footage can be monitored remotely via mobile device or computer.





What's Included

  • (4) HD-CVI 2 MP Security Domes
  • (1) HD-CVI 1080p 8 Channel DVR Recorder
  • (1) FREE 500 FT Spool RG59 Siamese CCTV Coaxial Cable w/ connectors
  • (1) FREE 4 Camera Power Supply
  • Free mobile apps and monitoring software
  • Free lifetime technical support
  • Free 1 Year Warranty



SmartPSS software
Click/Tap on image for a more detailed view.







(CLICK HERE) To view image at full 1080P



(CLICK HERE) To view image at full 1080P



Why HD-AVS?

HD 1080p vs 720p vs 960h Resolution

HD 1080p vs 720p vs 960h Resolution
CLICK ON IMAGE TO ENLARGE IT

DVR Features

H.264 Real-time Recording and Playback

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

Remote Monitoring

Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device (Such as iPhone 6, iPhone 6 Plus, iPhone, iPad, iPad mini, and Androids devices).

Central Monitoring System

Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.

Multiple Playback and Recording Options

Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.

E-map Function Support

E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.

Push Alerts & Automatic E-mail

Push Alerts & Automatic E-mail: Setup your DVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.

3D Intelligent Positioning

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.

Mobile App


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.

Support


iMaxCamPro Support
iMaxCamPro Support | Remote Access Guides | Support Home

iMaxCamPro Quick Links

iMaxCamPro Remote Access Guides


Note! To Download Software Enter The Following Information:
Username: wec
Password: WEC1234$

Software Downloads


Networking

 Network Setup Overview  Network Integration (locally)  Web Service Walkthrough (remote access through ie or Mozilla)  How to view cameras (remotely)  Setting up DVR with No-IP DDNS (locally)  Setting Up DDNS [DynDNS.com] (locally)
 Testing DynDNS DDNS  How to Access your iMaxCamPro DVR's through Internet Explorer 8 (remotely)  Using Mozilla Firefox with iMaxCamPro DVR's  How to View cameras via iPhone & iPad  How to View cameras via cell phone Blackberry  How to View cameras via cell phone Android  How to View cameras via cell phone Windows Mobile  How to View cameras via cell phone Symbian  How to Setup Your Surveillance Kit  iMaxCamPro Drive Compatibility List  Video Codec Pack 7.1.0 (Win)  How to Playback Recorded Video (locally)  How to Playback Recorded Video (remotely)  How to do a Digital Zoom on Playbacks (locally)  How to Setup Recording (locally)  How to Default Configurations (locally)  How to Default Configurations (remotely)  How to Set DVR to Never Log Out from Your Current User (locally)  How to setup Motion Detection (locally)  How to setup email notification (remotely)  How to reset your remote control  How to backup video files (locally)  How to setup a PTZ (remotely)  How to Format Hard Drive (locally)  How to Setup Redundancy (locally)  How to Add/Modify User Accounts (locally)  How to Add/Modify User Accounts (remotely)  How to enable audio (locally)  How to Change Channel Names (locally)  How to Setup Alarm Based Recording (locally)  How to access the Log File (locally)  How to access the Log File (remotely)

SmartPSS Client



We are Authorized Manufacturer Distributors for many main stream CCTV manufactures. Our support technicians are factory trained with strong emphasis on advanced networking and configurations of NVRs and DVRs from across multiple networks. We offer hourly support plans to help your facilities maintain system stability and optimal configuration settings.



In addition to our on-call technical support, we offer a selection of System Implementation Plans to every client.

free-tech-support

Free Technical Support

Complimentary technical support includes:

  • Basic System Implementation (one-time event, 30 minutes max)
  • Break/Fix support under manufacturer warranty
  • Basic camera, network, and NVR/DVR troubleshooting

Out of scope, additional setup, and advanced support is available at $80/ hour.


 Call us at: 888-211-2288

Email: support@worldeyecam.com

Business hours: Monday - Friday, 8:00am-5:00pm PST

    Premium Technical Support Offerings


  • End User Training
  • Available at $80 / hour
  • Must be scheduled in advance
  • View our Training Options

Advanced Training


Support for advanced configuration, out of scope troubleshooting, and other technical issues is available. In some cases “smart hands” may need to be present on-site before Advanced Support can begin. For many support tasks we require access to your high speed internet router/modem.

We require appointment scheduling with a minimum of 24-hour notice for Advanced Support.

Advanced Support can be purchased at $80/ hour.






 Technical Support Scope

Support
Activity
Free
Support
Advanced
Support
Basic System Setup - 30 minutes max.
Break/Fix Issues - Including RMA's and DOA
Basic camera, network,
and NVR/DVR troubleshooting
Advanced Support
Configuration for Remote Access
Mobile App Configuration
Camera / NVR Time Settings
Motion Detection
Setup Recording Schedules
Email/SMS Alert Configuration
Configure VMS/NVR Camera Matrix View
NVR/VMS Muliple User Setup
Archive to NAS
Camera Image Settings Configuration
License Plate Capture - Day/Night
Setup Router/ Modems /4G Hotspots
Third Party Mobile App Configuration
IP Reconfiguration
Cameras without Networks
Advanced Networking
MAC Client Setup
Other Advanced Configurations

System Implementation Plans

Bronze Silver Gold
Pricing: $30
Device
$60
Device
$80
Device
Basic Setup
Questions-limited
to 30 Min Max

Add Cameras
to NVR Server
/ DVR

Enable Continuous
Recording
Camera / NVR
/ DVR Time Settings
IP Assignment **
Device Firmware Update **
Configuration for
Remote Access
(Port Forwarding & DDNS) ***
Mobile App
Configuration for
Single User
Verification that
Cameras are Recording to
NVR / DVR
Wireless Network
Configuration

Motion Detection
Configuration

Email / SMS Alert
Configuration

Configure VMS /
NVR Camera Matrix View

NVR / VMS Muliple
User Setup

Archive to NAS
Evaluate Camera
Field of View (FOV)

Camera Image
Settings Configuration
(Focus, Exposure, D / N Settings, etc)

System Training
Max 1hr.

License Plate Capture
Day / Night

Setup Router / Modems / 4G Hotspots
Third Party
Mobile App
Configuration

IP Reconfiguration
Cameras without
Networks
(No internet access available)

Advanced Networking
MAC Client Setup
Other Advanced Camera
or NVR /
VMS Configuration

Multi User and
Advanced User Training


Dealers and Installer Sign-up


Worldeyecam Dealers and CCTV Installers




Let's Get Started!

  • You must provide Worldeyecam, Inc with the Confidential Dealer / Reseller Application Form information.
  • Dealer LOGIN account will be created to display special discounted prices as an Worldeyecam Dealer/Distributor. You will be able to login and create quotes or simply order products at your discounted rate.
  • WorldEyeCAM, Inc. will add your business into our database of nationwide integrators and installers.
  • WorldEyeCAM, Inc will provide 1st Class Factory Trained technicians to provide fanatical technical support.
  • WorldEyeCAM, Inc. will advertise and promote your company on that we are partnered with installers that work in the area (cities and counties) that you service and cover.
  • When we get request for installation services in the area that you service, we will refer the customer to you for installation and sales.

Dealer Application
Click Here



Looking for a Quote from a local Installer? Click here



Custom System Builder


Camera System Design

Designing a unique surveillance system for your home or business is as easy as clicking your mouse with our new Custom Kit Builder. With intuitive prompts that guide you along the way, you are in control of your camera styles, NVR or DVR size, power accessories and hard drive space. Still have questions, give us a call, our expert technicians are here to help. Your brand new system is only a few clicks away.

IP System Builder
Click Here

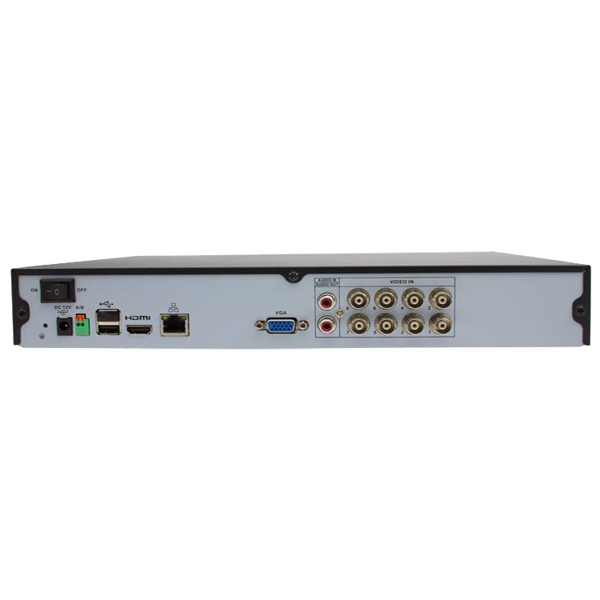

DVR


Product Features

  • Support HDCVI / Analog / IP Video input
  • H.264 dual-stream video compression
  • All channel 720P realtime or 1080P non-realtime recording
  • 8 channel synchronous realtime playback, GRID interface & smart search
  • HDMI / VGA simultaneous video output
  • Support 2 SATA HDDs up to 6TB Each HDD, 2 USB2.0
  • 3D intelligent positioning with IMaxCamPro PTZ dome camera
  • ONVIF Version 2.3 conformance
  • Support Multi-brand network cameras: IMaxCamPro, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech , and etc.
  • Multiple network monitoring: Web viewer, CMS (Smart PSS) & Smart Phone (IMaxCamPro)



SmartPSS software
Click/Tap on image for a more detailed view.





SPECIFICATIONS


Model IMAX-1U-TRI-8CVI-V2
Main Processor Embedded processor
Operating System Embedded LINUX
Camera Features
Input 8 channel, BNC
Standard HDCVI 1080P / 720P HD-CVI Camera
Standard Analog NTSC ( 525Line, 60f/s ) , PAL ( 625Line, 50f/s )
Standard IP 1080P /720P /D1 / CIF IP Camera
Audio
Input 4 channel, RCA
Output 1 channel, RCA
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split 1/4/8/9
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264/G.711
Resolution 1080P ( 1920×1080 ) / 720P ( 1280×720 ) / 960H ( 960×576 / 960×480 ) / D1 / 4CIF ( 704×576/704×480 ) / CIF ( 352×288 / 352×240 ) / QCIF ( 176×144 / 176×120 )
Record Rate Main Stream 1080P ( 1~12/15fps ) / 720P / 960H / D1 / HD1 / 2CIF / CIF ( 1~25/30fps )
Record Rate Extra Stream CIF / QCIF (1~25/30fps ), D1 ( 1~12/15fps )
Bit Rate 48~4096Kb/s
Record Mode Manual, Schedule, Regular, Continuous, otion detect
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Play Back
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup Selection, Digital Zoom (any size)
Search Mode Time/Date, Alarm, Motion Detect & Exact search (Accurate to the Second), Smart search
Playback Channel 1/4/9
Back Up Flash Drive, USB HDD, Network Download
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 8 channel
Relay Output 3 channel
Network
Ethernet RJ-45 port (10 / 100M / 1000M)
Network Functions Monitor, PTZ Control, Playback, System Setting, File Download, Log Info
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Max. User Access 128 User
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 2 SATA ports, up to 6TB each
E-SATA N/A
Auxiliary Interface
USB Interface 2 ports(1 Rear), USB2.0
RS485 1 port, For PTZ control
General
Power Supply DC12V/5A
Power Consumption 15W ( without HDD )
Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension ( W×D×H ) 1U, 375mm×285mm×55mm
Weight 2.35KG(without HDD)

Camera


  • 1/3" 2 Megapixel Progressive Scan CMOS Image Sensor
  • 1080p @ 30fsp, 720p @ 60fps
  • 3.6mm Fixed Lens
  • 20m IR LED Distance
  • High-Speed, Long Distance, Real-Time Transmission
  • Power On-Screen Display menu via Coaxial Cable
  • IP66 Ingress Protection

SPECIFICATIONs



Image Sensor

1/3” 2 Megapixel CMOS

Effective Pixels

1920 x 1080

ElectronicShutter

1/3s - 1/100,000/s

Video Framerate

720p @ 60FPS

Minimum Illumination

0.05 Lux (0 Lux w/IR On)

Video Output

1 Channel BNC HD-AVS High Definition Video Output

Infrared Illumination

20m

OSD Menu

Yes, via Coaxial Cable

Lens

3.6mm Fixed (6mm Optional)

Noise Reduction

2D / 3D

Day/Night

Auto (ICR) / B&W / Color

Electrical



Power Requirements

Regulated 12VDC

Power Consumption

4.5W

Environmental



Operating Temperature

-22º to 140ºF (-30º to 60ºC)

Operating Humidity

90% RH Max.

Physical



Transmission Distance

~500 meters with 75-3 Coaxial Cable

Protection

IP66

Dimensions

114mm x 86mm

Weight

1.5 lbs.

*}
