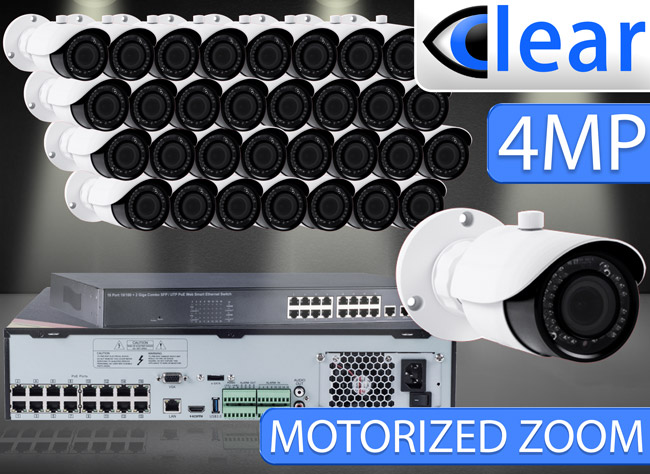

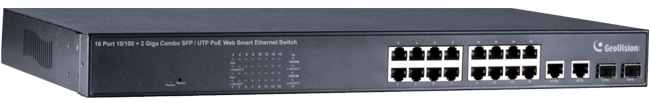

32 CH NVR with (32) IPX13 4 Megapixel, 3.3-12mm Motorized Lens, 30m IR, H.265, CVBS (BNC) Optional, Network IP Bullet Camera, & 16 Channel POE Switch


$5,557.00


Availability: In Stock
List Price: $15,330.00
SKU: CLR-IPX13-KIT-32
Product #: 91365
Manufacturer:
Camera Type: Bullet

Hard Drive #1:
Hard Drive #2:
Hard Drive #3:
Hard Drive #4:
Cables:
Monitor:
Remote Login Support:
Quantity

What's Included




XVR Recorder

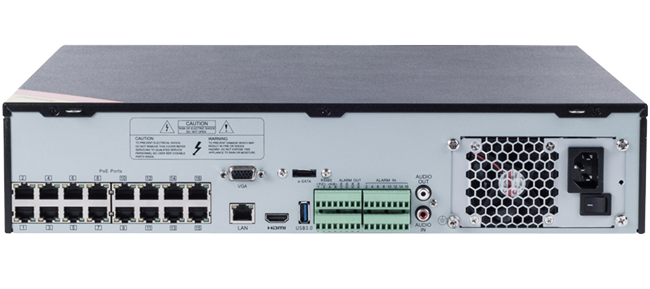

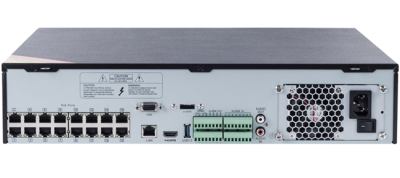

Network Video Recorder




(32) 4MP WDR IP IR Bullet Camera



(2) FREE 1000 FT Spool RJ45

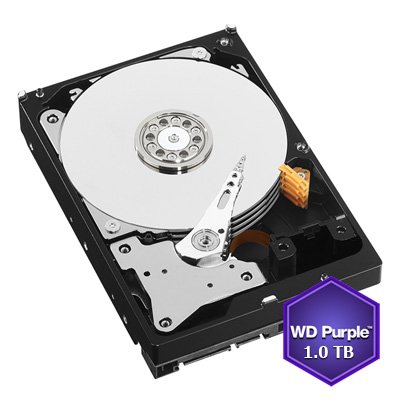

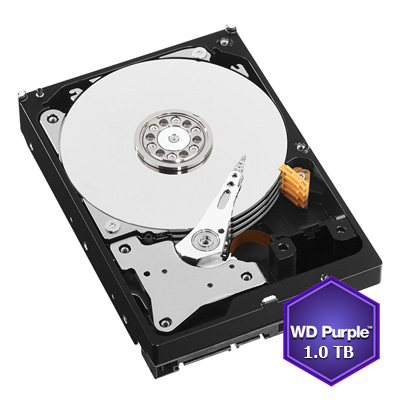

(1) FREE 1 TB Hard Drive


Personal Virtual Technician



Mobile app & Desktop Software




2 Year Warranty








Clear 4KNVR832-P Datasheet


Clear IPX13 Datasheet


Average Customer Rating:


3 Most useful customer reviews
Duncan
May 18, 2015
One of my friends had installed the clear camera kit and was praising the features with references and incidents. First, I thought he was justexaggerating it but later I went to his home and actually saw the quality video records and the way it focuses the areas. I was surprised the way it holds the power to detect the motion and smart alarm feature too made me surprise. I just loved the product. It is good to haves security system with us to ensure our security. What else is more important than that? So, I too bought one and feel completely satisfied.
Loading...Was the above review useful to you? Yes (0) / No (0)
Wealthy
Nov 27, 2014
I would rather choose a clear 32 camera IP kit than a security guard for my apartment. The security guard I appointed was not much faithful and I feel that the camera system I purchased was more useful. A theft attempt was caught in the camera than in the eyes of the security guard. So I made the best choice of installing the Network IP Bullet Camera, & 16 Channel POE Switch camera. Looking forward for more updated versions of clear camera products.
Loading...Was the above review useful to you? Yes (0) / No (0)
Valley
Sep 16, 2014
To be honest this clear camera surveillance kit is just like a pair of eye guarding our place with complete efficiency. I have been using this product for three months now and I feel that the best part is along with the security system it allows us to record the incidents happening in front of the camera. The funny part is that we got many funny scenes between the family members caught in the camera and later while viewing those we were actually laughing a lot and even copied from the SD card to other devices to keep as memory.
Loading...Was the above review useful to you? Yes (0) / No (0)

Camera


Technical Specifications

CLR-G4-IPX13

Camera

Sensor

1/3” 4 Megapixel CMOS Image Sensor

Effective Pixels

2592 x 1520

Electronic Shutter

1/25s ~ 1/100,000s

Iris Type

Fixed Iris

Minimum Illumination

Color: 0.05Lux @F1.2 (AGC on) / 0Lux with IR on

Lens

3.3 - 12mm Motorized Varifocal Lens

Angle of View (H)

Horizontal: 80° (wide) - 38° (zoomed)

Day/Nigh

IR-cut filter with auto switch (ICR)

Wide Dynamic Range

WDR

Backlight Compensation (BLC)

n/a

Highlight Compensation (HLC)

n/a

Defogging

n/a

Digital Noise Reduction

3DNR


Video Compression

H.265 / H.264 / MJPEG

Resolution

4MP (2592 x 1520), 2K (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 720p (1280 x 720), D1, CIF, 480 x 240

Main Stream

60Hz: 4MP / 2K @ 1 - 20fps; 3MP / 1080p / 720p @ 1 - 30fps

Bit Rate

128Kbps - 8Mbps

Bit Rate Type

VBR or CBR

Quality

5 Levels using VBR, Manually assignable using CBR

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic Range, Sharpness adjustable using CMS or IE web interface

Audio Compression

n/a

Region of Interest (ROI)

Up to 8 Areas

Interfaces

Network

10/100/1000M RJ-45 Ethernet Interface

Audio

n/a

Video Output

n/a

Local Storage

n/a

RS-485

n/a

Alarm Input / Output

n/a

Operations

Remote Monitoring

Internet Explorer or CMS Software

Remote Connections

Up to 10 concurrent remote connections

Network Protocols

TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP

Compatibility

ONVIF Profile S (2.3)

Smart Alarm

Motion Detection, Sensor Alarm

Smart Analysis

Object removal, line crossing, perimeter intrusion, people counting

PTZ Control

Using IP

IR Distance

Up to 30m (98’)

Ingress Protection Rating

IP66

General

Power Requirement

DC12V or PoE (802.3af)

Power Consumption

Max 6W (IR on)

Dimension

Ø3.4” x 8.6”

Weight

~1.3lbs

Working Environment

-4°F ~ 122°F, Humidity ≤ 90% RH(non-condensing)



Clear IPX13 Datasheet

NVR


Technical Specifications



CLR-4KNVR832-P

IP Camera Inputs

32 Channels

Video Output Interface

1 HDMI, 1 VGA

Display Resolution

HDMI: 4K (3840 x 2160); 1920 x 1080; 1280 x 1024

VGA: 1920 x 1080; 1280 x 1024

Audio Output Interface

1 Channel, RCA Audio Output

Two-way Audio

1 Channel, RCA Audio Input

Recording Resolution

8MP /  5MP / 4MP / 3MP / 1080p / 960p / 720p

Recording Bandwidth

256Mbps

Simultaneous Playback

Maximum 16 channels

Alarm Inputs

16 Channels

Relay Outputs

4 Channels

Network interface

1 x 10/100/1000M RJ-45 Ethernet Interface

PoE Ports

16 x 10/100M RJ-45 PoE Ports

Remote Connections

10 Remote Users Maximum

HDD Interfaces

8 SATA interfaces, maximum 6TB each, 1 eSATA Interface

Backup Media

External USB or Network Download

USB Interfaces

1 x USB2.0 (Front),  1 USB3.0 (Rear)

Power Supply

Internal ATX Power Supply

Power Consumption

<  15W (Without HDD)

Operating Environment

14° - 122°F, less than 90% Relative Humidity

Dimensions

16.9” x 17.7” x 3.5”

Weight (without HDD)

~24lbs



Clear 4KNVR832-P Datasheet

Support




Software Downloads

 CLEAR-VMS CLEAR IPTool
CLEAR IPX Camera Control4 Driver

User Manuals & Quick Start Guides

CLEAR NVR User Manual
 CLEAR DVR User Manual  CLEAR NVR Quick Start Guide
 CLEAR DVR Quick Start Guide  CLEAR Network Camera User Manual
 CLEAR-VMS User Manual  CLEAR Mobile App User Manual
 CLEAR HTTP API

How-to Guides

 CLEAR Record Upon Motion Quick Guide
 CLEAR Email upon motion setup guide  CLEAR NAT Quick Setup for Remote Viewing
Adding Uniview IP Cameras TO CLEAR NVRs CLEAR Accessing Demo Walkthrough
CLEAR Push Notification Quick Setup Guide

We are Authorized Manufacturer Distributors for many main stream CCTV manufactures. Our support technicians are factory trained with strong emphasis on advanced networking and configurations of NVRs and DVRs from across multiple networks. We offer hourly support plans to help your facilities maintain system stability and optimal configuration settings.



In addition to our on-call technical support, we offer a selection of System Implementation Plans to every client.

free-tech-support

Free Technical Support

Complimentary technical support includes:

  • Basic System Implementation (one-time event, 30 minutes max)
  • Break/Fix support under manufacturer warranty
  • Basic camera, network, and NVR/DVR troubleshooting

Out of scope, additional setup, and advanced support is available at $80/ hour.


 Call us at: 888-211-2288

Email: support@worldeyecam.com

Business hours: Monday - Friday, 8:00am-5:00pm PST

    Premium Technical Support Offerings


  • End User Training
  • Available at $80 / hour
  • Must be scheduled in advance
  • View our Training Options

Advanced Training


Support for advanced configuration, out of scope troubleshooting, and other technical issues is available. In some cases “smart hands” may need to be present on-site before Advanced Support can begin. For many support tasks we require access to your high speed internet router/modem.

We require appointment scheduling with a minimum of 24-hour notice for Advanced Support.

Advanced Support can be purchased at $80/ hour.






 Technical Support Scope

*}
