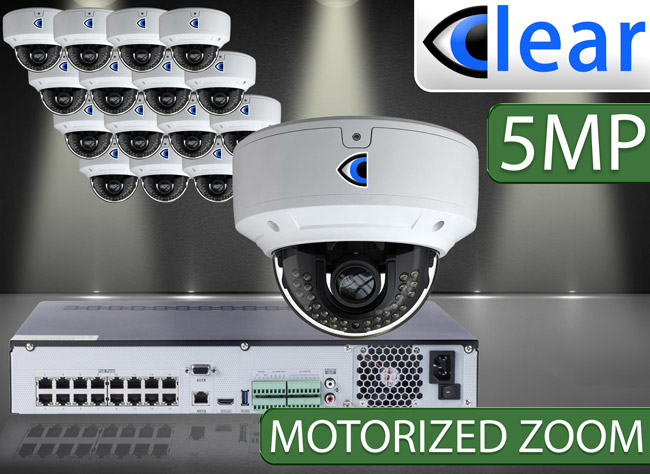

32 CH NVR with (16) IPX12 5 Megapixel, 3.6-10mm Motorized Lens, 30m IR, H.265, CVBS (BNC) Optional, Network IP Dome Camera


$5,269.00


Availability: In Stock
List Price: $11,725.00
SKU: CLR-IPX12-KIT-16
Product #: 91334
Manufacturer:

Hard Drive #1:
Hard Drive #2:
Hard Drive #3:
Hard Drive #4:
Cables:
Monitor:
Remote Login Support:
Quantity

What's Included




XVR Recorder

Network Video Recorder




(16) 5MP WDR IP IR Dome Camera



(1) FREE 1000 FT Spool RJ45




(1) FREE 1 TB Hard Drive


Personal Virtual Technician



Mobile app & Desktop Software




2 Year Warranty








Clear 4KNVR432-P Datasheet

Clear IPX12 Datasheet


Average Customer Rating:


3 Most useful customer reviews
Stern Bear
Jun 8, 2017
Recently I purchased the Clear security camera system, (Network IP Dome Cameras) provided by the Clear IP kits. As I am a happy customer of this product, I thought of writing a review on this. This product does not consume much power and not more than max 5.5W (IR on) and gives away a high-quality video system. The lens focuses to a wide area with a sensor of 1/1.8” 5 Megapixel CMOS Image Sensor, which is quite impressive. I feel like more secured and always watch the recorded videos for better security of my shop. This product is highly recommended to everyone who owns a shop.
Loading...Was the above review useful to you? Yes (0) / No (0)
Austin
Oct 15, 2016
Wow! This is my impression on this product. Clear security camera system, (Network IP Dome Cameras) is making my days far better. The camera lens quality with the recording system has actually resolved the issues that happened in my office. I could easily find out the mismatches happened among my employees by just watching the recorded videos. Even the tiny matters of hand gestures and file changings was clear in the recorded video and that really impressed me. Because I was in search of such a feature and upgraded my old security system because of that reason. Thus, sometimes this product can be called as a life saver.
Loading...Was the above review useful to you? Yes (0) / No (0)
Bold Prince
May 13, 2015
I was doing some research on the quality CCTV cameras available on the market. I was in a great need of a quality camera system in my net café. I already installed the computer systems and as I was dealing with more and more strangers every day, I need to make sure about the complete security of my net café as well as the customer’s. After completing the search, I was totally impressed by the unique features Clear CCTV camera system guarantees especially, the quality of the video, lens (3.6 - 10mm Manual Varifocal Lens0, angle view (Horizontal: 83.7° (wide) - 36.7°(zoomed).
Loading...Was the above review useful to you? Yes (0) / No (0)

NVR


Technical Specifications

CLR-4KNVR432-P

IP Camera Inputs

32 Channels

Video Output Interface

1 HDMI, 1 VGA

Display Resolution

HDMI: 4K (3840 x 2160); 1920 x 1080; 1280 x 1024

VGA: 1920 x 1080; 1280 x 1024

Audio Output Interface

1 Channel, RCA Audio Output

Two-way Audio

1 Channel, RCA Audio Input

Recording Resolution

8MP /  5MP / 4MP / 3MP / 1080p / 960p / 720p

Recording Bandwidth

256Mbps

Simultaneous Playback

Maximum 16 channels

Alarm Inputs

16 Channels

Relay Outputs

4 Channels

Network interface

1 x 10/100/1000M RJ-45 Ethernet Interface

PoE Ports

16 x 10/100M RJ-45 PoE Ports

Remote Connections

10 Remote Users Maximum

HDD Interfaces

4 SATA interfaces, maximum 6TB each

Backup Media

External USB or Network Download

USB Interfaces

1 x USB2.0 (Front),  1 USB3.0 (Rear)

Power Supply

Internal ATX Power Supply

Power Consumption

<  30W (Without HDD)

Operating Environment

14° - 122°F, less than 90% Relative Humidity

Dimensions

17.3” x 15.3” x 2.75”

Weight (without HDD)

~15lbs



Clear 4KNVR432-P Datasheet

Camera


Technical Specifications

CLR-G4-IPX12

Camera

Sensor

1/1.8” 5 Megapixel CMOS Image Sensor

Effective Pixels

2692 x 1944

Electronic Shutter

1/25s ~ 1/100,000s

Iris Type

Fixed Iris

Minimum Illumination

Color: 0.01Lux @F1.2 (AGC on) / 0Lux with IR on

Lens

3.6 - 10mm Manual Varifocal Lens

Angle of View (H)

Horizontal: 83.7° (wide) - 36.7° (zoomed)

Day/Nigh

IR-cut filter with auto switch (ICR)

Wide Dynamic Range

Digital WDR

Backlight Compensation (BLC)

Yes

Highlight Compensation (HLC)

Yes

Defogging

Yes

Digital Noise Reduction

2DNR/3DNR


Video Compression

H.265 / H.264 / MJPEG

Resolution

5MP (2592 x 1944), 2K (2560 x 1440), 1080p (1920 x 1080), 720p (1280 x 720), D1, CIF, 480 x 240

Main Stream

60Hz: 5MP / 2K / 1080p / 720p @ 1 - 30fps

Bit Rate

64Kbps - 10Mbps

Bit Rate Type

VBR or CBR

Quality

5 Levels using VBR, Manually assignable using CBR

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic Range, Sharpness adjustable using CMS or IE web interface

Audio Compression

G.711A/U

Region of Interest (ROI)

Up to 8 Areas

Interfaces

Network

10/100/1000M RJ-45 Ethernet Interface

Audio

3.5mm Microphone Input and Speaker Output

Video Output

CVBS (BNC) Video Output

Local Storage

MicroSD Card up to 128GB

RS-485

Screw Terminal

Alarm Input / Output

1 / 1 Channel Screw Terminal

Operations

Remote Monitoring

Internet Explorer or CMS Software

Remote Connections

Up to 10 concurrent remote connections

Network Protocols

TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP

Compatibility

ONVIF Profile S (2.3)

Smart Alarm

Motion Detection, Sensor Alarm

Smart Analysis

n/a

PTZ Control

Using IP or RS-485 (PELCO-D/PELCO-P)

IR Distance

Up to 30m (98’)

Ingress Protection Rating

IP66

General

Power Requirement

DC12V or PoE (802.3af)

Power Consumption

Max 5.5W (IR on)

Dimension

Ø5.9” x 4.5”

Weight

~2.5lbs

Working Environment

-4°F ~ 122°F, Humidity ≤ 90% RH(non-condensing)



Clear IPX12 Datasheet

Support




Software Downloads

 CLEAR-VMS CLEAR IPTool
CLEAR IPX Camera Control4 Driver

User Manuals & Quick Start Guides

CLEAR NVR User Manual
 CLEAR DVR User Manual  CLEAR NVR Quick Start Guide
 CLEAR DVR Quick Start Guide  CLEAR Network Camera User Manual
 CLEAR-VMS User Manual  CLEAR Mobile App User Manual
 CLEAR HTTP API

How-to Guides

 CLEAR Record Upon Motion Quick Guide
 CLEAR Email upon motion setup guide  CLEAR NAT Quick Setup for Remote Viewing
Adding Uniview IP Cameras TO CLEAR NVRs CLEAR Accessing Demo Walkthrough
CLEAR Push Notification Quick Setup Guide

We are Authorized Manufacturer Distributors for many main stream CCTV manufactures. Our support technicians are factory trained with strong emphasis on advanced networking and configurations of NVRs and DVRs from across multiple networks. We offer hourly support plans to help your facilities maintain system stability and optimal configuration settings.



In addition to our on-call technical support, we offer a selection of System Implementation Plans to every client.

free-tech-support

Free Technical Support

Complimentary technical support includes:

  • Basic System Implementation (one-time event, 30 minutes max)
  • Break/Fix support under manufacturer warranty
  • Basic camera, network, and NVR/DVR troubleshooting

Out of scope, additional setup, and advanced support is available at $80/ hour.


 Call us at: 888-211-2288

Email: support@worldeyecam.com

Business hours: Monday - Friday, 8:00am-5:00pm PST

    Premium Technical Support Offerings


  • End User Training
  • Available at $80 / hour
  • Must be scheduled in advance
  • View our Training Options

Advanced Training


Support for advanced configuration, out of scope troubleshooting, and other technical issues is available. In some cases “smart hands” may need to be present on-site before Advanced Support can begin. For many support tasks we require access to your high speed internet router/modem.

We require appointment scheduling with a minimum of 24-hour notice for Advanced Support.

Advanced Support can be purchased at $80/ hour.






 Technical Support Scope
