32 CH HD-CVI DVR 16HD 1080P PIR Hidden cameras 3.6mm Lens Kit for Business Professional Grade FREE 1TB Hard Drive

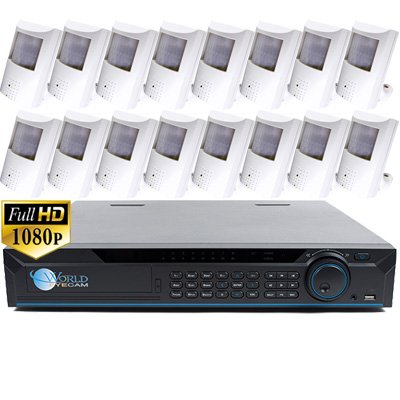

This comprehensive surveillance system kit comes with 16 HD-CVI cameras and a 32 channel DVR. The cameras are covert PIR hidden cameras with a 3.6mm wide angle lens. They capture high resolution 1080p footage even in low light conditions. All footage is recorded onto the HD-CVI DVR which comes with a FREE 1TB HDD.
HD 1080p vs 720p vs 960h Resolution
H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.
Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device (Such as iPhone 6, iPhone 6 Plus, iPhone, iPad, iPad mini, and Androids devices).
Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.
Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.
E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.
Push Alerts & Automatic E-mail: Setup your DVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.
3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.
QR Code Scan P2P iPhone Android iOS instructions
How to enable remote viewing without Port-Forwarding
We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.
Easy remote Viewing
P2P/QR Code Easy Setup
To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.
You must check the box to enable P2P function and then click Apply to save at bottom of screen.
Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.
Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.
How to setup the iPhone app with the P2P/QR Code
Step 1: Open the iMaxCam app and tap on Camera.
Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.
Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information
Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.
Step 5: In the add device screen, select P2P
Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.
Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.
S/N: Tap on the icon to scan the QR Code
User Name: admin (default)
Password: admin (default)
Step 7: Press the “Start Live Preview” button to start watching the cameras.
Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
- Universal Input: Each channel supports HDCVI/Analog/IP Video input
- 1 HDMI / VGA / TV simultaneous video output, 1 HDMI separate output
- Full 720p @ 30FPS & 1080P @ 15FPS
- Up to 720p realtime live view
- H.264 dual-stream video compression
- 32 channel synchronous realtime playback, GRID interface & smart search
- Support Multi-brand network cameras: IMaxCamPro, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech , and etc.
- 3D intelligent positioning with IMaxCamPro PTZ dome camera
- Support 4 SATA HDDs up to 24TB, 1 eSATA up to 16TB,3 USB2.0 (HDDs are not included but can be added for an additional cost)
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & IMaxCamPro
|Main Processor||Embedded processor|
|Operating System||Embedded LINUX|
|Standard HDCVI||1080P / 720P HD CVI Camera|
|Standard Analog||NTSC ( 525Line, 60f/s ) , Effio 960H Camera|
|Standard IP||1080P /720P /D1 / CIF IP Camera|
|Input||4 channel, BNC|
|Output||1 channel, BNC|
|Two-way Talk||1 channel input,1channel output, BNC|
|Interface||1 HDMI,1 VGA,1 TV|
|Resolution||1920×1080, 1280×1024, 1280×720, 1024×768|
|Display Split||1 /4/8/9/16|
|Privacy Masking||4 rectangular zones (each camera)|
|OSD||Camera title, Time, Video loss, Camera lock, Motion detection, Recording|
|Resolution||1920×1080, 1280×1024, 1280×720, 1024×768|
|Record Rate Main Stream||1080P ( 1~15 fps ) / 720P /960H /D1 /HD1 /2CIF /CIF ( 1~25/30 fps )|
|Record Rate Extra Stream||CIF / QCIF ( 1~25 / 30 fps)|
|Record Mode||Manual, Schedule(Regular(Continuous), MD), Stop|
|Record Interval||1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec|
|Video Detection & Alarm|
|Trigger Events||Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips|
|Video Detection||Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank|
|Alarm Input||16 channel|
|Relay Output||6 channel|
|Playback & Backup|
|Sync Playback||1/ 4/9/16|
|Search Mode||Time/Date, MD & Exact search (accurate to second)|
|Playback Functions||Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom|
|Backup Mode||USB Device / eSATA Device / Internal SATA burner / Network|
|Ethernet||RJ-45 port ( 10 /100M /1000M )|
|Network Functions||HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P|
|Max. User Access||128 User|
|Smart Phone||iPhone, iPad, Android, Windows Phone|
|Internal HDD||4 SATA ports, up to 24TB|
|E-SATA||1 eSATA port, up to 16TB|
|USB Interface||3 ports(2 Rear),USB2.0|
|RS232||1 port, For PC communication & Keyboard|
|RS485||1 port RS485 for PTZ control, 1 port RS422 for Keyboard|
|Power Supply||AC 100~240 V, 50/60 Hz|
|Power Consumption||40W ( without HDD )|
|Working Environment||-10°C ~+55°C / 10%~90%RH / 86~106kpa|
|Dimension ( W×D×H )||1.5U, 440mm × 410mm × 70mm|
|Weight||6KG ( without HDD )|

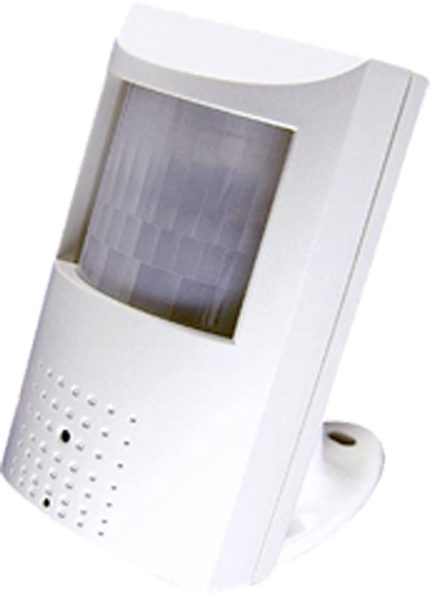

- 1080P HD-CVI CAMERA
- 1/2.8" Sony IMX322 + Eyenix EN773E
- 2 Megapixel, 1080p@25/30fps
- Super Low Illumination
- WDR, Slow Shutter, 3D DNR
- Best HD-CVI 1080P solution on the market
- STANDARD LENS: 3.6MM FIXED LENS
- UP TO 1500 FEET OF CABLE TRANSMISSION, DC 12V
|Image Sensor||1/2.8" Sony IMX322 + Eyenix EN773E|
|Effective Pixels||2 Megapixel, 1080p@25/30fps|
|Minimum Illumination||0 Lux When IR ON|
|S/N Ratio||More than 50 DB(AGC Off)|
|Video Output||1-channel 1080P HD-CVI Output|
|Max. Transmission Range||500M by RG59/RG6/CAT5 cable|
|Operating Temperature||-20 °C ~ + 50 °C|
