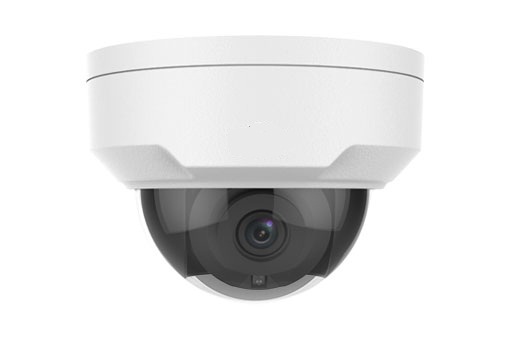

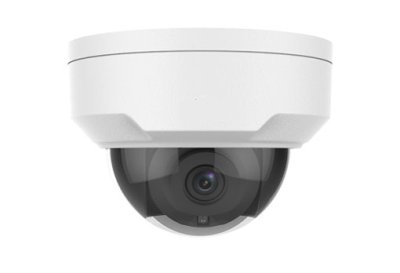

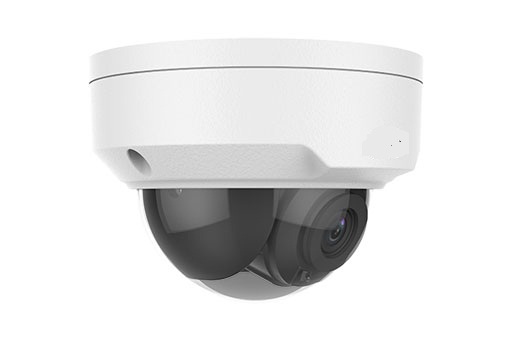

2MP WDR Vandal-resistant Network IR Fixed Dome Camera


Please login or register to see price
Availability: In Stock
SKU: WEC322SR3-DVPF28(40)-C
Product #: 112595
Manufacturer:

Optics

* Day/night functionality

* Smart IR, up to 30m (98ft) IR distance

* Car-grade LEDs, brighter and uniform light compensation

* Up to 120 dB WDR (Wide Dynamic Range)

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265, H.264, MJPEG

* Triple streams

* ROI (Region of Interest)

* Customized OSD

Network

* ONVIF Conformance

Structure

* Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)

* Wide input voltage range of ±25%

* IK10 vandal resistant

* IP67

* 3-Axis

  IPC322SR3-DVPF28-C IPC322SR3-DVPF40-C
Camera
Sensor 1/2.8", 2.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 42 16.8 8.4 4.2
4.0 60 24 12 6
Angle of View (H) 112.7° 86.5°
Angle of View (V) 60.1° 44.1°
Angle of View (O) 146.5° 106.4°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.003Lux (F2.0, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52 dB
IR Range Up to 30m (98ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4W
Dimensions (Ø x H) Φ108.5 x 81mm (Ø4.28” x 3.2”)
Weight 0.45kg (0.99lb)
Working Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
