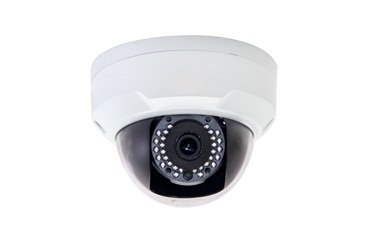

2MP WDR UNI-Star Vandal-resistant Fixed Dome Camera


$134.00


Availability: In Stock
List Price: $268.00
SKU: WEC322ER3-DUVPF28-B
Product #: 99692
Manufacturer:
Camera Type: Dome
Camera Resolution: 1920 x 1080
Camera Signal: IP

Quantity

  • 1/2.9" progressive scan CMOS
  • Up to 1920 x 1080 resolution, 30fps
  • 2.8mm/4mm optional
  • Smart IR, up to 30m IR distance
  • H.265, 3D DNR, ROI, 9:16 corridor mode, ONVIF
  • DC12V, PoE. Wide voltage range of ±25%
  • IP66, IK10

Specification

WEC322ER3-DUVPF28-B

Camera
Sensor 1/2.9", 2.0 megapixel, progressive scan CMOS
Shutter Auto/Manual, 1/6~1/100000 s
Lens 2.8 mm@F1.6
Angle of view(H): 105.2°
Day/Night IR-cut filter with auto switch (ICR)
Min. Illumination Colour: 0.002 Lux (F1.6, AGC ON)
0Lux with IR
S/N >52 dB
WDR Optical WDR(up to 120dB)
Noise Reduction 2D/3D
Video
Max. Resolution 1920 × 1080
Video Compression H.265,H.264,MJPEG
Frame Rate 1080P (1920*1080): MAX. 30 fps; 720P (1280*720): MAX. 30 fps
Video Streaming Triple
9:16 Corridor Mode Supported
ROI Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
Smart
Behavior Detection Intrusion, crossing line, motion detection
Exception Detection Audio detection
Intelligent Identification Face detection
Statistical Analysis People counting
Audio
Audio Compression G.711
Two-way audio Supported
Storage
Edge Storage Micro SD, up to 128 GB
Network
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Compatible Integration ONVIF, API
Interface
Audio I/O
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O 1/ 1
Network 10M/100M Base-TX Ethernet
General
Power
12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (Ø x H) Φ108.5 x 81 mm (Ø4.28” x 3.2”)
Weight 0.45 kg (0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Vandal Resistant IK10
Ingress Protection IP66
