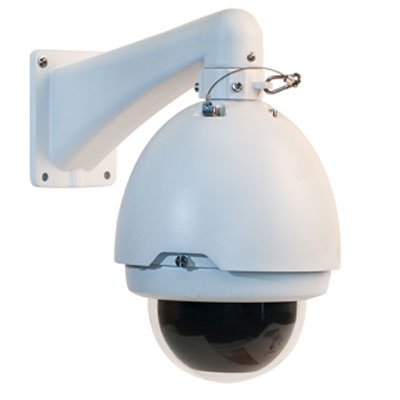

2MP 30X Optical Zoom Auto Tracking IP PTZ Camera


$1,516.00


Availability: In Stock
Ships Same Day
List Price: $1,950.00
SKU: IMAX-IP20ATC
Product #: 85543
Manufacturer:

Remote Login Support:
Quantity

This IP pan/tilt/zoom surveillance camera comes with intelligent auto tracking functions. The intelligent video system analytics will detect loitering, abandoned objects, illegal parking and many other warning signs. This security camera can help stop crime before it happens. It records high resolution 1080p video at 30 frames per second. It will continue to record in very low light and has a 30x optical zoom. The pan/tilt/zoom functions allow for a 360 degree view with no blind spots.



  • Intelligent Auto-Tracking PTZ
  • Sony 2MP Exmor CMOS Sensor
  • 20x Optical Zoom
  • ONVIF Profile S
  • Ships standard with included wall mount
  • Pole, Pendant, Ceiling, and Corner Mounts Available (Optional)

Model

IMAX-IP20ATC

SPECIFICATIONS



Sensor Type

2MP 1/2.8” Sony Exmor CMOS

Module Type

20X Optical Zoom Module

Effective Pixels

1944 (H) x 1092 (V), 2 Megapixels

Minimum Subject Distance

10mm - 1000mm

Minimum Illumination

Color: 0.05Lux@F1.6, B&W: 0.005Lux@F1.6

Electronic Shutter

1/1 - 1/30,000s

Zoom

20x Optical, 16x Digital

Backlight Compensation

BLC / HLC / DWDR

White Balance

Auto / ATW / Indoor / Outdoor / Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D / 3D)

Day/Night

Auto / Color / B&W

S/N Ratio

>50dB

Privacy Masking

Up to 24 areas

Analog Video Output

BNC (1.0Vp-p / 75Ω) NTSC

Video Compression

H.264 / MJPEG

Image Resolution

1080p (1920/1080) / 720p ( 1280/720) / D1 (704x480) / CIF (352 x 240)

Frame Rate: Main Stream

1080p (1 ~ 30fps) / 720p (1 ~ 60fps)

Frame Rate: Extra Stream

D1 / CIF (1 ~ 30fps)

Bit Rate

56 - 8192Kbps

Audio Interface

1 / 1 channel In / Out

Audio Compression

G.711a / G.711u / PCM

Speed Dome



Presets

255 (PELCO D/P), 80 (DH-SD)

PTZ Mode

5 Pattern, 8 Tour, Auto Pan, Auto Scan

Pan Speed

0.1° ~ 300° / second

Pan Range

0° - 360° continuous

Tilt Speed

0° ~ 250° / second

Tilt Range

-2° - 90° — Auto flip 180°

Alarm I/O

7 / 2 relay Input / Output

Preset Speed

Pan 400° / second, Tilt 300° / second

Intelligent 3D Positioning

Yes, using DH-SD protocol

Idle Motion

Activate Preset / Pan / Scan / Tour / Pattern

Electrical



Power Requirements

AC 24V/3A

Power Consumption

20W / 45W (Heater on)

Environmental & Physical



Operating Temperature

-40° F ~ +140° F

Operating Humidity

0-90% (No condensation)

Ingress Protection

IP67

PTZ Weight

18lbs

Wall Mount Weight

3 lbs

Shipping Weight

25 lbs

Network



Ethernet

RJ-45 (10/100m0)

Network Functions

TCP/IP, HTTP, DDNS, DHCP, FTP , DNS, IP Filter, PPPoE, NTP, SMTP, Alarm Serve

Max Remote Users

20 Simultaneous Users

Memory Slot

Micro SD, Max 64GB

User Interface

Web, CMS (PSS) & iMaxCam APP

Intelligent Function



Auto Tracking

Single-scene, multiple-scene, panarama-scene

IVS

Tripwire, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Illegal Parking, etc

IR Speed Dome Manual
Speed Dome Manual
Auto-Tracking Quick Guide

Average Customer Rating:


1 Most useful customer reviews
Tomy Phillips
Feb 7, 2016
This customer purchased the item at our site.
The security camera in the hallway in front of my office had gone faulty and I asked my secretary to search for one that could equal to the specs of my old one. It had barely been a day when my friend suggested this website for me. Flawless service, great quality and huge discounts were his exact words. Of course I went ahead and checks up on it and within minutes landed on this product’s page. The price was considerably high for the budget I had set but it was definitely worth it. I fixed this security cam in the very beginning of the hall and it can zoom in to the end which is about 100 feet in distance.

Also with the full 360 degree tilt nothing is kept unseen and all is noticed. I received this camera with the wall mount which was a great assistance. Quality of the footage is crystal and I have gone as far as to buy a micro SD of 64 GB. I like to make good use of everything within a security camera!
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.
