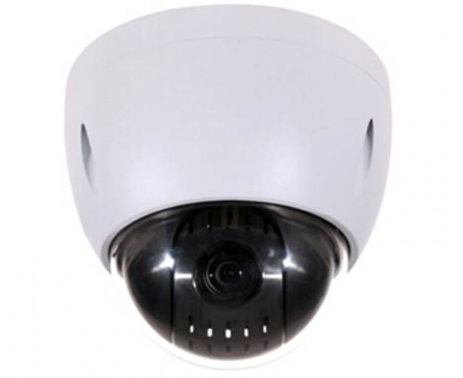

2MP 12x PTZ Network Camera


$525.00


Availability: In Stock
List Price: $890.00
SKU: SD42212T-HN
Product #: 87140
Manufacturer:

Quantity

PDN42T212H

> 1/2.7” 2Megapixel CMOS

> Powerful 12x optical zoom

> Support Triple-streams encoding
> Max. 25/30fps@1080P, 25/30/50/60fps@720P
> IVS(Optional)
> Support PoE
> IP66, IK10




There have been no reviews

Mobile APPs


HOW TO ACCESS SYSTEM USING P2P VIA MOBILE APPLICATION

View your recorder and cameras on the go. The Mobile Application IDMSS (IOS) / GDMSS (Android) allows you to add IMAXPRO recorders and cameras to the mobile app using P2P.

PREREQUISITES

- Smartphone (IOS device or Android)

- IDMSS/GDMSS already downloadedin your mobile device.

- P2P must be turned on from the recorder and connected to a network with internet access.



STEP BY STEP INSTRUCTION

(VERSION 4.50.000)



1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.



2. Select the "Device" button/icon on the bottom to add the recorder/camera.

3. Select the "+" sign then select "Scan" to add the device.

4. Select the Device you want to Connect (If you have a wired Camera, Please choose Wired Camera).





5. Input the device for easy identification. It's required to input the password for the added device then select the save icon located on the top right corner.



Specifications


Camera

  • Image Sensor 1/2.7” CMOS
  • Effective Pixels 1920(H) x 1080(V), 2 Megapixels
  • RAM/ROM
  • 256M/128M
  • Scanning System
  • Progressive
  • Minimum Illumination
  • Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
  • S/N Ratio
  • More than 55dB
  • IR Distance
  • N/A
  • IR On/Off Control
  • N/A
  • IR LEDs
  • N/A


Lens

  • Focal Length
  • 5.1mm~61.2mm
  • Max. Aperture
  • F1.6 ~ F3.0
  • Angle of View
  • H: 59.3° ~ 5.2°
  • Optical Zoom
  • 12x
  • Focus Control
  • Auto/Manual
  • Close Focus Distance
  • 100mm~ 1000mm


PTZ

  • Pan/Tilt Range
  • Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180°
  • Manual Control Speed
  • Pan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s
  • Preset Speed
  • Pan: 300° /s; Tilt: 200° /s
  • Presets
  • 300
  • PTZ Mode
  • 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
  • Speed Setup
  • Human-oriented focal Length/ speed adaptation
  • Power up Action
  • Auto restore to previous PTZ and lens status after
  • power failure
  • Idle Motion
  • Activate Preset/ Scan/ Tour/ Pattern if there is no
  • command in the specified period
  • Protocol
  • DH-SD


Intelligence

  • Auto Tracking
  • N/A
  • IVS (optional)
  • Tripwire, Intrusion,Abandoned/Missing, Face Detection


Video

  • Compression
  • H.264+/H.264 / MJPEG
  • Streaming Capability
  • 3 Streams
  • Resolution
  • 1080P(1920×1080)/720P(1280×720)/
  • D1(704×576/704×480)/CIF(352×288/352×240)
  • Frame Rate
  • Main stream
  • 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)
  • Sub stream1
  • D1/CIF(1 ~ 25/30fps)
  • Sub stream2
  • 720P/D1/ CIF (1 ~ 25/30fps)
  • Bit Rate Control
  • CBR/VBR
  • Bit Rate
  • H.264+/H.264: 448K ~ 8192Kbps,
  • MJPEG: 5120K ~ 10240Kbps
  • Day/Night
  • Auto(ICR) / Color / B/W
  • Backlight Compensation
  • BLC / HLC / WDR(120dB)
  • White Balance
  • Auto,ATW,Indoor,Outdoor,Manual
  • Gain Control
  • Auto / Manual
  • Noise Reduction
  • Ultra DNR (2D/3D)
  • Motion Detetion
  • Support
  • Region of Interest
  • Support
  • Electronic Image
  • Stabilization (EIS)
  • N/A
  • Defog
  • Support
  • Digital Zoom
  • 16x
  • Flip
  • 180°
  • Privacy Masking
  • Up to 24 areas


Audio

  • Compression
  • G.711a/G.711u(32kbps)/PCM(128kbps)


Network

  • Ethernet
  • RJ-45 (10/100Base-T)
  • Protocol
  • IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,
  • ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,
  • DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
  • Interoperability
  • ONVIF, PSIA, CGI
  • Streaming Method
  • Unicast / Multicast
  • Max. User Access
  • 20 users
  • Edge Storage
  • NAS (Network Attached Storage),Local PC for instant recording, 128GB
  • Web Viewer
  • IE10/Google/Firefox/Safari...
  • Management Software
  • Smart PSS, DSS
  • Smart Phone
  • iPhone, iPad, Android, Windows Phone


Certifications

  • Certifications
  • CE: EN55032/EN55024/EN50130-4
  • FCC: Part15 subpartB,ANSI C63.4- 2014
  • UL: UL60950-1+CAN/CSA C22.2,No.60950-1


Interface

  • Video Interface
  • N/A
  • Audio Interface
  • 1/1
  • RS485
  • N/A
  • Alarm
  • 2/1


Electrical

  • Power Supply
  • AC24V/1.5A(±10%), PoE(802.3af)
  • Power Consumption
  • 12W


Environmental

  • Operating Conditions
  • -30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH
  • Ingress Protection
  • IP66
  • Vandal Resistance
  • IK10


Construction

  • Casing
  • Metal
  • Dimensions
  • Φ170(mm)×155(mm)
  • Net Weight
  • 1.8kg(3.97lb)
  • Gross Weight
  • 3.3kg(7.28lb)
