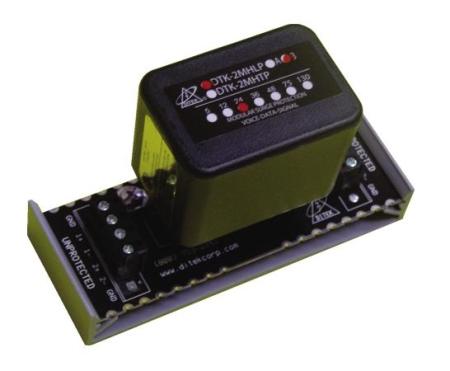

2MHLP5BWB 5 V 2-pair field-replaceable surge protector with hardwire base

SKU: 2MHLP5BWB
DITEK Corp.
SKU: 2MHLP5BWB
    • 25% less
    Market price:$241.14 save $61.14
  • $180.00

OR

Specifications


Service voltage 5VDC
Clamping voltage approximately 8VDC
Max continuous current 5A
Surge current rating 20kA
Data rate support approximately 200kbps
Protection mode line-to-ground on both pairs
Circuits protected two pairs per module
Technology hybrid SAD
Mounting includes hardwired base
Connection method edge-card module plugs into base
Operating temperature –40°F to +158°F (–40°C to +70°C)
Dimensions with base approximately 2.6″ H × 3.25″ W × 1.5″ D
Weight with base approximately 2.8 oz
Approvals UL 497B listed, NDAA and TAA compliant
