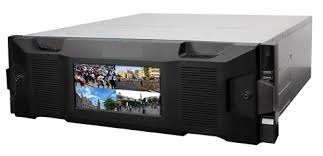

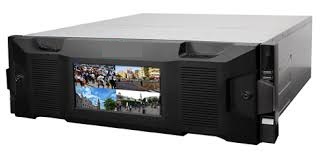

24HDD 265CH AI Network Video Recorder, 512Mbps, 3HDMI/1VGA, 16/8CH Alarm, 24 SATA, 1 eSATA, 4 USB, Hot-swap, RAID

        24HDD 265CH AI Network Video Recorder, 512Mbps, 3HDMI/1VGA, 16/8CH Alarm, 24 SATA, 1 eSATA, 4 USB, Hot-swap, RAID

        WEC
        SKU: WECDHI-IVSS7024DR-8T

        > Intel quad-core processor
        > Max 512Mbps incoming bandwidth
        > 256 Channel IP video access
        > Up to 32 Channel video stream face recognition
        > Up to 80 Channel picture stream face recognition
        > Regular/stranger mode
        > Search by image
        > Face database management
        > Supports RAID 0/1/5/6/10
        > SAS3.0 for storage extension
        > 3HDMI/1VGA video output
        > Redundant power

          • 50% less
          Market price:$27996.00 save $13998.00
        • $13998.00
        Qty:
        OR

        PRODUCT FEATURES

        > Intel quad-core processor
        > Max 512Mbps incoming bandwidth
        > 256 Channel IP video access
        > Up to 32 Channel video stream face recognition
        > Up to 80 Channel picture stream face recognition
        > Regular/stranger mode
        > Search by image
        > Face database management
        > Supports RAID 0/1/5/6/10
        > SAS3.0 for storage extension
        > 3HDMI/1VGA video output
        > Redundant power

        DeepSense series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the worldeyecam.com DeepSense series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.

        The complete lineup of worldeyecam.com DeepSense includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.

        System Overview

        worldeyecam.com IVSS goes beyond the ordinary NVR products. It is an Intelligent Video Surveillance Server combines video management functions with traditional video storage operations in one device. Besides the basic functions as network video recorder, IVSS is integrated with features such as face detection, face recognition for different business and industrial applications.

        With build-in deep learning module, IVSS series products adopt video image structuring technology based on deep learning algorithms, achieving high-precision human face analysis, comparison, retrieval, storage, and management. By applying deep learning artificial intelligence, IVSS allow users to focus on what matters most, improve event response time and help make video actionable.

        An all new UI design supports device operation and maintenance management, improving the value and experience of surveillance view, and servicing the era of security big data.

        Functions

        Real Time Face Recognition

        Up to 32 channel real time face recognition by IVSS. Facial attributes analysis features including gender, age, expression, glasses, moustache, mouth mask. Identify people and also capture, record faces with structured data. Facial feature filtering while real time display, only show faces with target features.

        Regular/Stranger Mode

        IVSS support regular and stranger mode. In stranger mode, when IVSS detect a stranger face(not in device's face database), it can trigger alarm, buzzer, snapshot, record, etc. Similarity threshold can be set manually. This function is developed for important infrastructure sites for which access control is critical.

        Efficient Search

        Support uploading face pictures to IVSS and compare them with recorded faces in IVSS by similarity. Enable operators to quickly and easily search through multi channels and long duration, efficiently find out when and where a person of interest appeard.

        Face Database Management

        Configurable multiple face databases. Powerful face database management. Face database can be applied to video channels independently. Name, gender, birthday, nationality, address, ID information can be added to each face picture.

        System
        Main ProcessorIntel Quad-core Processor
        Memory16GB, up to 64GB
        Operating SystemEmbedded LINUX
        Artificial Intelligence
        Face Recognition32 channel video stream face recognition / 80 channel picture stream face recognition (with FD camera)
        Performance80 face pictrues /sec processing (modeling and comparing)
        MetadataSturctured data of gender, age, expression, glasses, moustache, mouth mask information.
        Stranger ModeDetect strangers’ faces(not in device’s face database).Similarity threshold can be set manually.
        Trigger EventsBuzzer, snapshot, recording, etc.
        Search by ImageUp to 10 target face images search at same time. Support similarity threshold set for each target face image.
        Database ManagementUp to 20 face databases with 100,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
        Database ApplicationEach database can be applied to video channels independently.
        Audio and Video
        IP Camera Input256 Channel
        Two-way Talk1 × 3.5mm audio input, 1 × 3.5mm audio output
        Display
        Interface3 HDMI, 1VGA
        ResolutionHDMI1/2/3 : 3840 × 2160 , 1920 × 1080 , 1280 × 1024,



        1280 × 720

        VGA : 1920 × 1080 , 1280 × 1024,



        1280 × 720

        Decoding Capability24-ch@1080P(30fps)
        Multi-screen DisplayUp to 36 split for each screen
        OSDCamera title, Time, Motion detection, Recording
        Recording
        Bandwidth450Mbps
        CompressionH.265/H.264/MJPEG/MPEG4
        Resolution12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, etc.
        Record ModeSchedule (Continuous, Event)
        Video Detection and Alarm
        Trigger EventsRecording, Snapshot, Buzzer, etc.
        Video DetectionMotion Detection, MD Zones: 396 (22 × 18); Tampering
        Alarm input16 Channel
        Relay Output8 Channel
        Playback and Backup
        Sync PlaybackUp to 16ch sync playback, 128Mbps playback bandwidth
        Search ModeTime /Date, Video Detection, Face and Exact Search (accurate to second)
        Backup ModeUSB Device/Network
        Third-party Support
        Third-party SupportAXIS, Panasonic, Sony, etc.
        Network
        Interface4 RJ-45 Ports (10/100/1000Mbps)
        Optional Interface4 Giga Optical Fiber Interface
        Network Port ModeIndependent Ethernet Ports, Load Balance, Fault-Tolerance, Link Aggregation
        Network FunctionHTTP, HTTPS, TCP/IP, UDP, RTSP, IPv4, NTP, DHCP, DNS, IP Filter, IP Search (Support Dahua IP camera, DVR, etc.), P2P
        InteroperabilityONVIF 2.4, SDK
        Storage
        Internal HDD24 SAS/SATA HDDs, Up to 10 TB capacity for each HDD, Independent HDD bracket, hot-swap
        HDD ModeSingle, Raid 0/1/5/6/10(Enterprise-level HDDs are recommended), Support Global HDD Hot-spare
        eSATA1 eSATA Port (Please contact technical engineer to confirm the compatible device)
        SAS2 SAS3.0 Ports
        Auxiliary Interface
        Front CoverSupport Hot-swap, 7-inch HD LCD (1920 × 1080 , 1280 × 1024)
        USB4 USB Ports (2 USB 2.0 , 2 USB 3.0 )
        RS2321 Port, for PC Communication
        RS4851 Port
        Electrical
        Power SupplyAC100V ~ 240V, 50 ~ 60 Hz, Hot-swap, Redundant
        Power Consumption<130W (Without HDD)
        FanDual-ball bearing fans, Hot-swap
        Environmental
        Operating Conditions0°C ~ +45°C (+32°F ~ +113°F), 86 ~ 106kpa
        Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
        Construction
        Dimensions4U, 482.6mm x 543.4mm x 175mm (19″ x 21.39″ x 6.89″)
        Net Weight20kg (44.09 lb) (without HDD)
        InstallationStandard 19-inch Rack-mounted
        Certifications
        CEEN55032, EN55024, EN50130-4, EN60950-1
        FCCPart 15 Subpart B, ANSI C63.4-2014
        ULUL 60950-1
