WEC-IPPTZ - 20x Optical Zoom - 2 Megapixel High-Resolution PTZ IP Camera with 320ft IR


$1,128.00


Availability: In Stock
Ships Same Day
List Price: $1,699.99
SKU: WEC-IPPTZ
Product #: 66769
Manufacturer: iMaxCamPro
Camera Resolution: 1920 x 1080
UPC: 881314693641

Remote Login Support:
Quantity

20X Optical Zoom 2MP IP PTZ Camera with 320ft IR Night Distance

Features

  • 20x optical zoom
  • Support Triple-streams encoding
  • Max. 25/30fps @1080P(1920x1080) & 50/60fps @720P resolution
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IP66
  • IR Distance up to 100m



SPECIFICATIONS
Model WEC-IPPTZ
Camera
Image Sensor 1/2.8” Exmor CMOS
Effective Pixels 1920(H) x 1080(V)
Scanning System Progressive
Electronic Shutter Speed 1/1 ~ 1/30,000s
Min. Illumination Color: 0.05Lux @F1.4; B/W: 0.005Lux @F1.4, 0Lux (IR on)
S/N Ratio More than 50dB
Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16X
Lens
Focal Length 4.7mm ~ 94.0mm ( 20X Optical zoom)
Max Aperture F1.4 ~ F2.6
Focus Control Auto / Manual
Angle of View H: 56.1° ~ 3.1°
Close Focus Distance 100mm ~ 1000mm
PTZ
Pan / Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~ 120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)
IR Distance 328 ft. / 100m (2 near IR LED+ 4 far IR LED)
Video
Compression H.264H / H.264B / H.264 / MJPEG
Resolution 1080P (1920×1080) / 720P (1280×720) / D1 (704×576/ 704×480) /CIF (352×288 / 352×240)
Main Stream Frame Rate 1080P / D1 (1 ~ 25/30fps), 720P (1~50/60fps)
Sub Stream 1 Frame Rate D1 /CIF (1 ~ 25/30fps)
Sub Stream 2 Frame Rate 720P/D1/ CIF (1 ~ 25/30fps)
Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression G.711a / G.711u (32kbps) / PCM(128kbps)
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
RS485 1
Alarm 2/1 channel In/Out
General
Power Supply AC 24V/3A (±10%)
Power Consumption 10.5W, 26W (IR on, Heater on)
Working Environment -40°C ~ 60°C / Less than 90% RH
Ingress Protection IP66

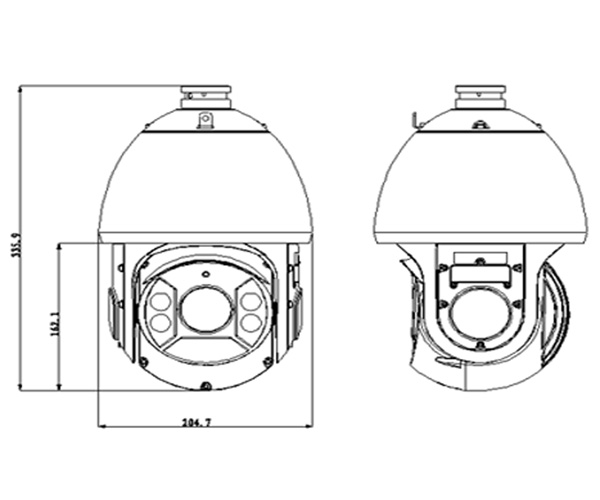

Dimensions Φ8.06” (204.7mm) x 14.17” (359.9 mm)
Weight 11.02 lb / 5.00kg

Average Customer Rating:


2 Most useful customer reviews
Steve
Apr 18, 2014
This customer purchased the item at our site.
The image is very clear and looks great whether viewing it on my IPHONE, IPAD or laptop. I had it set to full frame rate and can achieve that most times. The night vision works very well with great range on the IRs and no reflections back into the camera. I found the IRs can be just a little bright when the place is covered in snow but it's hardly noticeable.
Loading...Was the above review useful to you? Yes (1) / No (0)
Jay Tom
May 9, 2015
This customer purchased the item at our site.
This secure camera’s footage and picture quality is fascinating. There is literally nothing wrong with it. I have been using this camera since a good 2 weeks and have faced no trouble of any sort whatsoever. It was a little difficult for me to install the camera and hook it up with my smartphone but it was nothing that the customer service could not solve for me. They replied back in a relatively short period of time and my issue was solved really quickly. This website proffers really good services to its customers. It was not just the customer service that impressed me but also the super quick shipping.

Overall this camera has nothing wrong with it. It outsmarts nearly all the cameras I have bought in the past 15 years of my married life. My wife’s smartphone is the doorway to knowing what is happening around our house and ensuring that nothing out of the ordinary is happening like vandals messing with us.
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
*}
