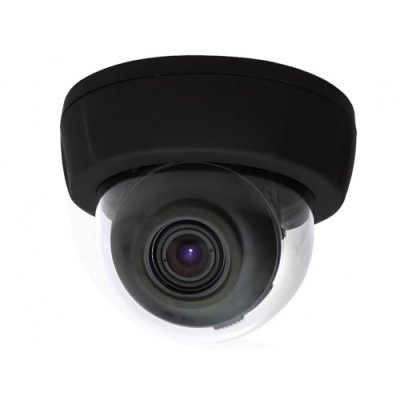

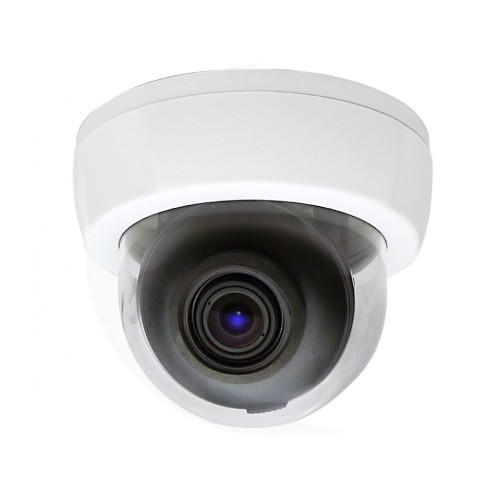

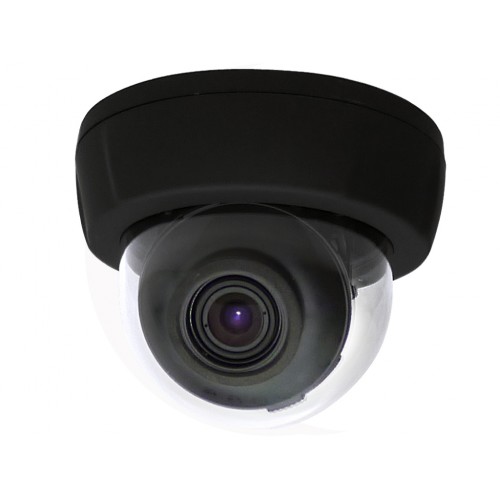

2.2MP 4-In-1 HD Indoor Dome Camera


$66.00


Availability: In Stock
List Price: $132.00
SKU: WEC-DO2M80VF-B/W
Product #: 102828
Manufacturer:

Quantity

PRODUCT FEATURES

  • 4-In-1 (AHD, HD-TVI, HD-CVI, 960H)
  • 1/2.9" 2.2MP Sony Sensor
  • Effective Pixels: 1920(H) x 1080(V)
  • 2.8~12mm Vari-Focal Lens
  • 0.01Lux @ F1.2 (AGC On)
  • 30FPS (NTSC)
  • 12V DC
  • OSD Menu. Can Switch to Analog Mode
  • CoC Compatible (Control Over Coax)
  • FLC / BLC (E Model)
  • NTSC / PAL Compatible
Camera
Image Sensor 1/2.9" 2.2MP Sony Sensor
Effective Pixels 1920 (H) x 1080 (V)
Electronic Shutter AUTO: 1/50-1/100, 000Sec (PAL) & 1/60-1/100,000Sec (NTSC)
S/N Ratio ≥45dB(Max 70 dB)
Video Output Composite Signal (1.0Vp-p, 75Ω), Compatible with AHD, HD-TVI, HD-CVI, 960H
Video Frame Rate 30fps @ 1080P
Camera Features
AGC Automatic / manual
IR LEDs N/A
IR LEDs Distance N/A
Day / Night Auto / Color / BW / EXT
Noise Reduction 2D
BLC Automatic / manual
White Balance Auto adaptive(Range 2200~10000K)
WDR N/A
OSD Menu via Coaxial Cable (CoC), Compatible with Analog Mode
Lens
Focal Lens 2.8~12mm Vari-Focal Lens
Recording
Encode CBR
General
Power Supply DC 12V ± 10%
Power Consumption 300mA
Working Environment -22ºF ~ 140ºF (-30°C ~ 60°C)
Dimensions 5.4" x 5.4" x 5" (138 x 138 x 127mm)
Weight 0.73lbs (0.33kg)
