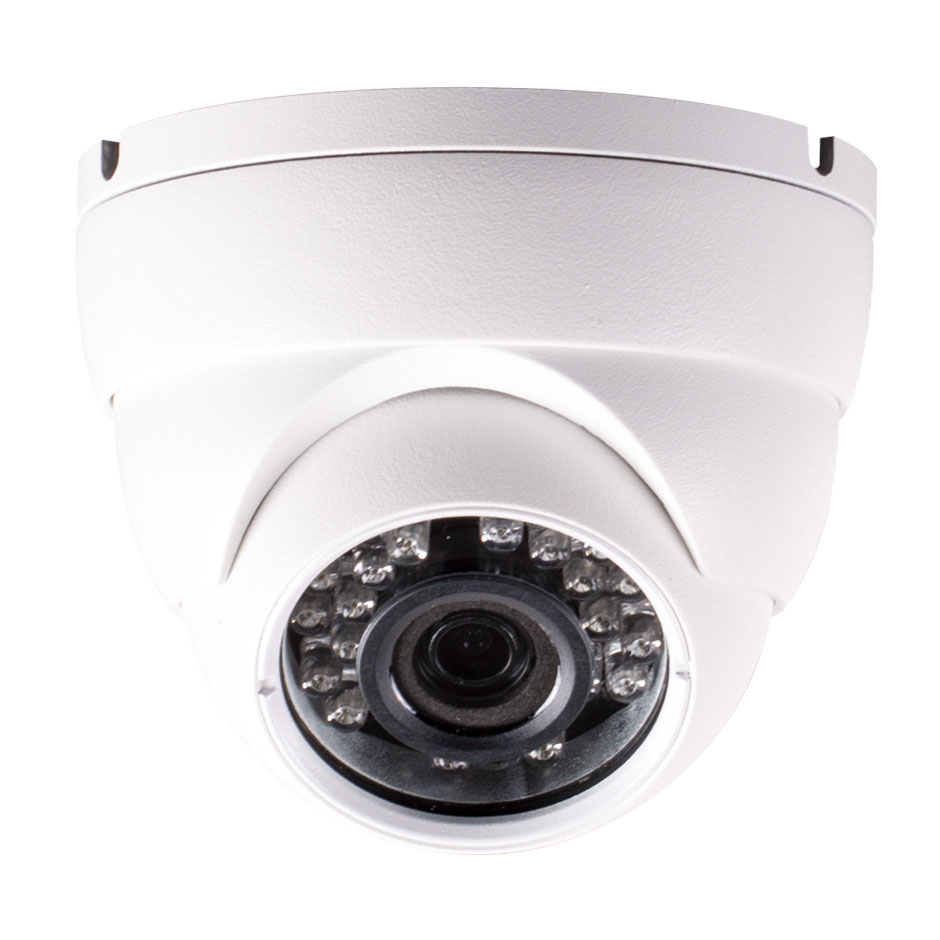

2 Megapixel, 3.6mm Fixed Lens, Waterproof, Infrared, 4-in-1 Mini-Eyeball Dome Camera


$42.00


Availability: In Stock
SKU: WEC-DXJ1
Product #: 90858
Manufacturer:
Camera Type: Dome
Camera Resolution: 1080p
Camera Signal: 4 in 1
Lens Size: 3.6mm
Optical Zoom: Fixed Lens
Sensor: 2 MP Image Sensor

Quantity

PRODUCT DETAILS



  • 1/2.7” 2 Megapixel CMOS Image Sensor
  • 4 Selectable Video Types: TVI, AHD, CVI and CVBS
  • 1080p Image Resolution
  • 3.6mm Fixed Lens
  • Maximum IR LED Distance 20~30m
  • Day/Night (ICR), AWB, AGC, 2DNR
  • IP66 Ingress Protection Rating


  • Technical Specifications

    WEC-DXJ1 1080p 4-in-1 3.6mm Mini-Eyeball Dome Camera
    Camera Feautures
    Image Sensor 1/2.7” 2 Megapixel CMOS Image Sensor
    Digital Signal Processor V320
    Effective Pixels 1920 (H) x 1080 (V)
    Electronic Shutter Speed 1/60s to 1/10,000s
    Video Frame Rate CVI, TVI, AHD: 1080p / CVBS: 1280 x 480
    Synchronization Internal
    Minimum Illumination 0.01 Lux/F1.2 (AGC on); 0 Lux (IR on)
    Synchronization Internal
    Video Output 1 Channel BNC HDCVI/HDTVI/AHD/CVBS Video Output (dip switch selectable)
    Maximum IR LED Distance 20m~30m
    Day/Night Auto (ICR) / Color / B&W
    Noise Reduction 2DNR
    Lens Size 3.6mm
    Field of View Horizontal: 80.6°
    Lens Type Fixed
    Mount Type M12
    General
    Power Requirement DC12V
    Power Consumption less than < 6W
    Operating Environment -10°C - +50°C, < 90% Relative Humidity
    Ingress Protection Rating IP66
    Dimensions 93mm x 68mm
    Weight ~1lbs
    Shipping Weight 2lbs
    *}
