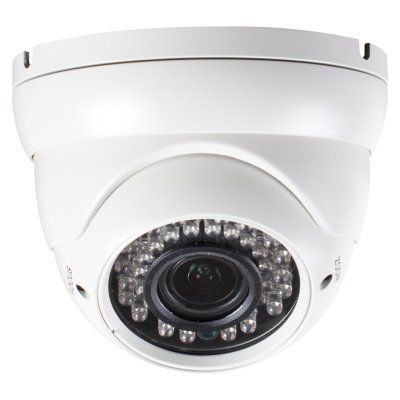

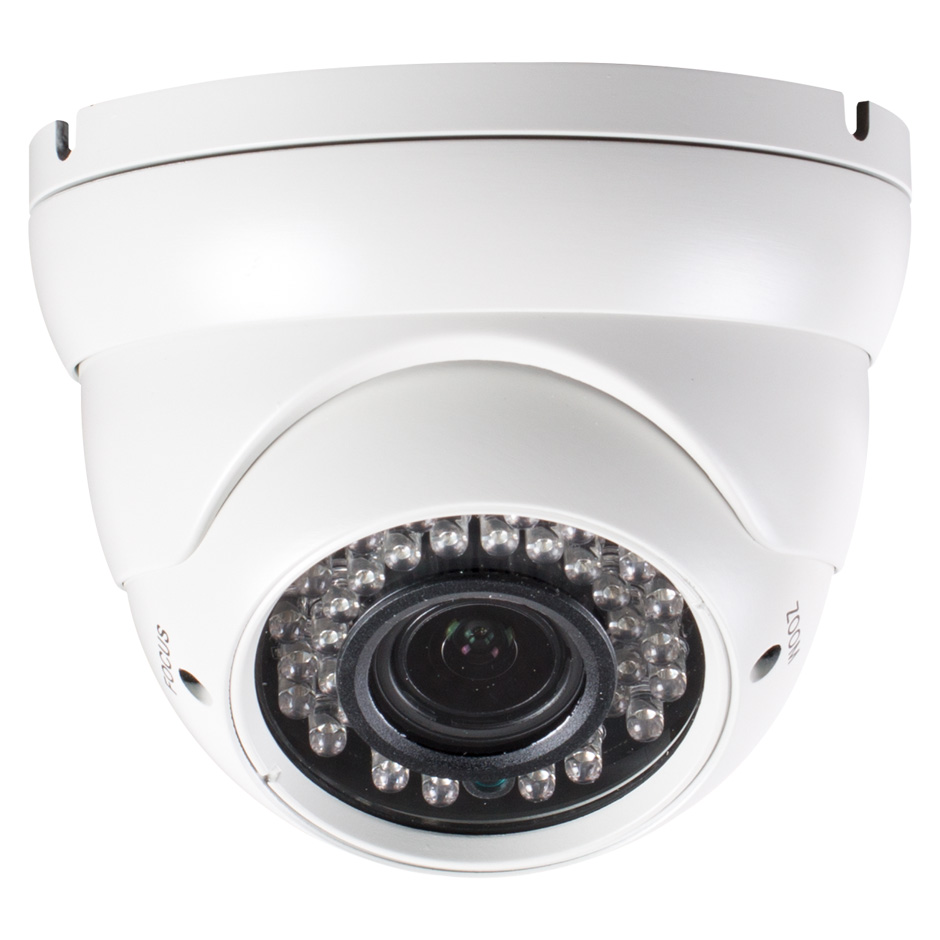

2 Megapixel, 2.8mm - 12mm Manual Varifocal Lens,Waterproof, Infrared 4-in-1 Eyeball Dome Camera


$98.00


Availability: In Stock
SKU: WEC-XVF-D1
Product #: 90859
Manufacturer:
Camera Type: Dome
Camera Resolution: 1080p
Camera Signal: 4 in 1
Lens Size: 12mm
Optical Zoom: Varifocal
Sensor: 2 MP Image Sensor

Quantity

PRODUCT DETAILS



  • 1/2.7” 2 Megapixel CMOS Image Sensor
  • 4 Selectable Video Types: TVI, AHD, CVI and CVBS
  • 1080p Image Resolution
  • 2.8mm - 12mm Manual Varifocal Lens
  • IR LED Distance 30~40m
  • Day/Night (ICR), AWB, AGC, 2DNR
  • IP66 Ingress Protection Rating


  • Technical Specifications

    WEC-XVF-D1 1/2.7” 2 Megapixel CMOS Image Sensor
    Camera Feautures
    Image Sensor 1/2.7” 2 Megapixel CMOS Image Sensor
    Digital Signal Processor V320
    Effective Pixels 1920 (H) x 1080 (V)
    Electronic Shutter Speed 1/60s to 1/10,000s
    Video Frame Rate CVI, TVI, AHD: 1080p / CVBS: 1280 x 480
    Synchronization Internal
    Minimum Illumination 0.01 Lux/F1.2 (AGC on); 0 Lux (IR on)
    Video Output 1 Channel BNC HDCVI/HDTVI/AHD/CVBS Video Output (dip switch selectable)
    Maximum IR LED Distance 40m
    Day/Night Auto (ICR) / Color / B&W
    Noise Reduction 2DNR
    Lens Size 2.8mm - 12mm
    Field of View 114° (wide) ~ 28° (zoomed)
    Lens Type Manual Varifocal
    Mount Type M14
    General
    Power Requirement DC12V
    Power Consumption less than < 5W
    Operating Environment 0°C - +55°C, less than 90% Relative Humidity
    Ingress Protection Rating IP66
    Dimensions 133mm x 103mm
    Weight ~1.5lbs
    Shipping Weight 3lbs
