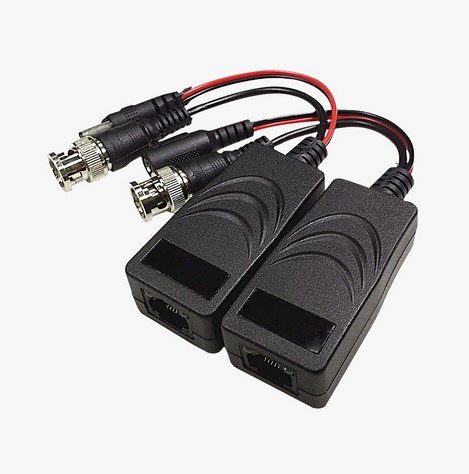

1CH HD VIDEO & POWER PASSIVE BALUN (PAIR)


$12.00


Availability: In Stock
List Price: $24.00
SKU: WECHD-EV01P-VP-2
Product #: 103238
Manufacturer:

Quantity

1CH HD Video & Power Transmitter & Receiver (12V/24V DC/AC)
* Real-time transmission over UTP cat5e/6
* NTSC, PAL & SECAM video format compatible
* Compatible with all HD-TVI, HD-CVI, AHD & CVBS analog cameras
* Color video max up to 440m(1443ft) for HD-CVI 720P camera If you adjust saturation of DVR, max up to 470m(1541ft)
Color video max up to 230m(754ft) for HD-CVI 1080P camera
* Color video max up to 190m(623ft) for Hikvision TVI 720P camera
Color video max up to 190m(623ft) for Hikvision TVI 1080P camera
* Color video max up to 230m(754ft) for TVT HD-TVI 720P camera
Color video max up to 220m(721ft) for TVT HD-TVI 1080P camera
* Color video max up to 320m(1049ft) for AHD 720P camera
Color video max up to 320m(1049ft) for AHD 960P camera
Color video max up to 250m(820ft) for AHD 1080P camera
* Color video max up to 400m(1312ft) for CVBS camera
* Male BNC with extended 5.9inch(150mm)mini-coax pigtail
* RJ45 Jack for UTP cable
* Built-in TVS (Transient Voltage Suppressor) for surge protection
* Wave Filter Design, Anti-Static Design
* Lightning protection design Grade: III
* 60 dB crosstalk and noise immunity
* Exceptional interference rejection
* ABS engineering plastic housing



The HD-EV01P-VP-2 is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effective

unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are supported.

The HD-EV01P-VP-2 is compatible with all HD-TVI, HD-CVI and AHD analog camera. Used in pairs, HD-EV01P-VP-2 eliminates costly and bulky coaxial cable.

The superior interference rejection and low emissions of the HD-EV01P-VP-2 allow video & power signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The HD-EV01P-VP-2 is built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.

Applications

    • Security Monitoring System
    • Multimedia Network Teaching System
    • Medical Monitoring Display System
    • Industrial Automation Control System
    • Banking, securities, financial information display system
    • Remote Network Server Monitoring
    • Department Store Security
    • Casino Security
    • Hospitals, Airports and banks
    • School Campuses

Wire and Cable Recommendations

The HD-EV01P-VP-2 is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG. Individually shielded pairs should be avoided, as they reduce the operating range of the systems drastically. Multi-pair cable (25-pair or more) with an overall shield are acceptable. Video signals can coexist in the same wire bundle as telephone, datacom, or low-voltages power circuits. While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacitive or inductive devices MUST BE removed from the pair.
