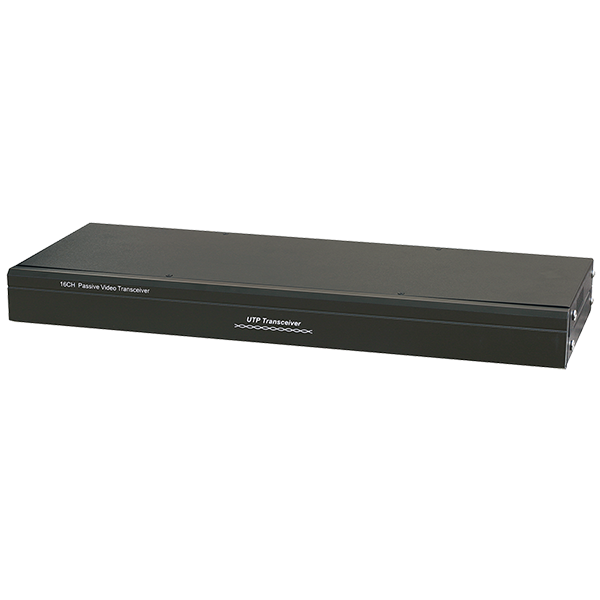

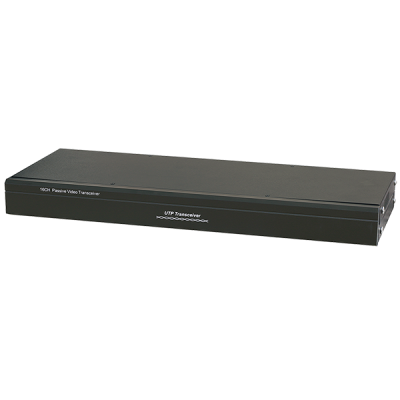

16 Channel Video Balun Rack Mount


$85.00


Availability: In Stock
List Price: $100.00
SKU: LTAB1160R
Product #: 86856
Manufacturer:

Quantity

  • 16-Channel Passive Video Receiver
  • PAL/NTSC Real-time Video Transmission
  • No Power Needed
  • Up to 1200ft

There have been no reviews

Specifications


Video

  • DC To 5MHz
  • ImpedanceCoax BNC 75 Ω  ;UTP;100Ω
  • Attenuation0.3dB typ

Environment

  • Temperature Woring Temp:-10? ~ +50 ?
  • Storage Temp:-30? ~ +70 ?
  • Humidity0 ~95%RH

Wire Type

  • Category Type  UTP CAT5 .24-16AWG
  • Impedance18 Ω (100M)

UTP Port

  • Terminal Block  ,RJ45

Packing

  • Quantity in Box 1pc
  • Box Weight1200(g)
  • Box Dimension432*97*44(mm)
  • Box Quantity Per Carton5pcs
  • Carton Net Weight8800(g)
  • Carton Gross Weight9300(g)
  • Carton Dimension590*275*435(mm)
