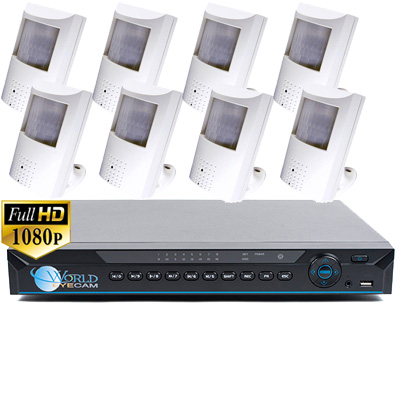

16 CH HD-CVI DVR 8HD 1080P PIR Hidden cameras 3.6mm Lens Kit for Business Professional Grade FREE 1TB Hard Drive
This is the perfect kit for discreet surveillance. It comes with 8 hidden PIR cameras that can be covertly placed around your home or office to capture HD video 24/7. All footage is recorded onto the included 16 channel DVR and FREE 1TB HDD. The kit also includes the necessary power supply and cables for setting up your system. Start monitoring your property today with this covert HD-CVI surveillance system.
HD 1080p vs 720p vs 960h Resolution
H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.
Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device (Such as iPhone 6, iPhone 6 Plus, iPhone, iPad, iPad mini, and Androids devices).
Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.
Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.
E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.
Push Alerts & Automatic E-mail: Setup your DVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.
3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.
- Support HDCVI / Analog / IP Video input
- H.264 dual-stream video compression
- Full 720p @ 30FPS & 1080P @ 15FPS
- 16 channel synchronous realtime playback, GRID interface & smart search
- HDMI / VGA simultaneous video output
- Support 2 SATA HDDs up to 6TB Each HDD, 2 USB2.0
- 3D intelligent positioning with IMaxCamPro PTZ dome camera
- ONVIF Version 2.3 conformance
- Support Multi-brand network cameras: IMaxCamPro, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech , and etc.
- Multiple network monitoring: Web viewer, CMS (Smart PSS) & Smart Phone (IMaxCamPro)

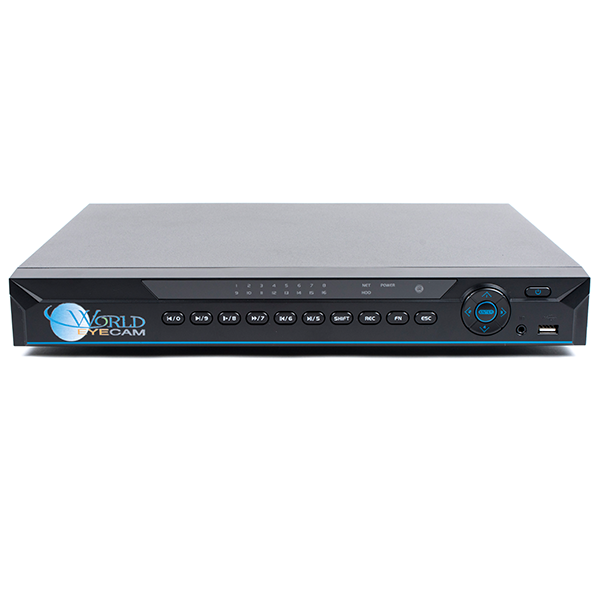

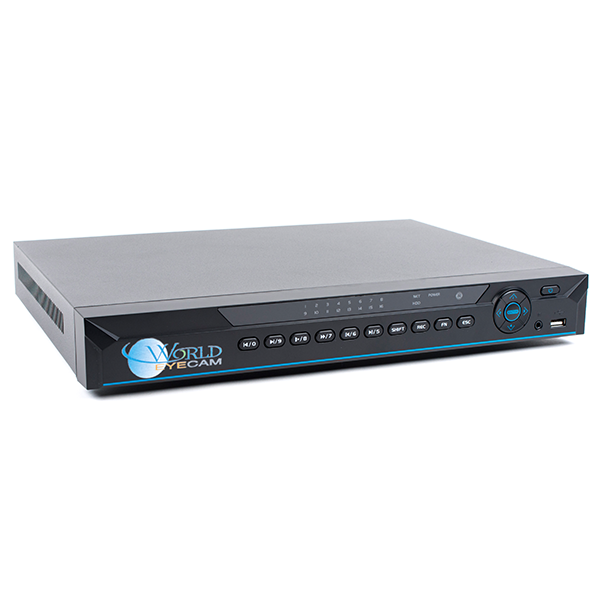

|Main Processor||Embedded processor|
|Operating System||Embedded LINUX|
|Input||16 channel, BNC|
|Standard HDCVI||1080P / 720P HDCVI Camera|
|Standard Analog||NTSC ( 525Line, 60f/s ) , PAL ( 625Line, 50f/s )|
|Standard IP||1080P /720P /D1 / CIF IP Camera|
|Input||4 channel, RCA|
|Output||1 channel, RCA|
|Two-way Talk||Reuse audio input / output channel 1|
|Interface||1 HDMI, 1 VGA|
|Resolution||1920×1080, 1280×1024, 1280×720, 1024×768, 800×600|
|Privacy Masking||4 rectangular zones (each camera)|
|OSD||Camera title, Time, Video loss, Camera lock, Motion detection, Recording|
|Resolution||1080P ( 1920×1080 ) / 720P ( 1280×720 ) / 960H ( 960×576 / 960×480 ) / D1 / 4CIF ( 704×576/704×480 ) / CIF ( 352×288 / 352×240 ) / QCIF ( 176×144 / 176×120 )|
|Record Rate Main Stream||1080P ( 1~12/15fps ) / 720P / 960H / D1 / HD1 / 2CIF / CIF ( 1~25/30fps )|
|Record Rate Extra Stream||CIF / QCIF (1~25/30fps ), D1 ( 1~12/15fps )|
|Record Mode||Manual, Schedule(Regular(Continuous), MD), Stop|
|Record Interval||1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec|
|Playback Channel||1/ 4/ 9/ 16|
|Search Mode||Time/Date, Alarm, Motion Detect & Exact search (Accurate to the Second), Smart search|
|Playback Function||Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup Selection, Digital Zoom (any size)|
|Backup Method||Flash Drive, USB HDD, Network Download|
|Video Detection & Alarm|
|Trigger Events||Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips|
|Video Detection||Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank|
|Alarm Input||8 channel|
|Relay Output||3 channel|
|Ethernet||RJ-45 port (10 / 100M / 1000M)|
|Network Functions||Monitor, PTZ Control, Playback, System Setting, File Download, Log Info|
|Protocol||IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour|
|Max. User Access||128 User|
|Smart Phone||iPhone, iPad, Android, Windows Phone|
|Internal HDD||2 SATA ports, up to 6TB Each HDD|
|USB Interface||2 ports(1 Rear), USB2.0|
|RS485||1 port, For PTZ control|
|Power Consumption||15W ( without HDD )|
|Working Environment||-10°C ~+55°C / 10%~90%RH / 86~106kpa|
|Dimension ( W×D×H )||1U, 375mm×285mm×55mm|

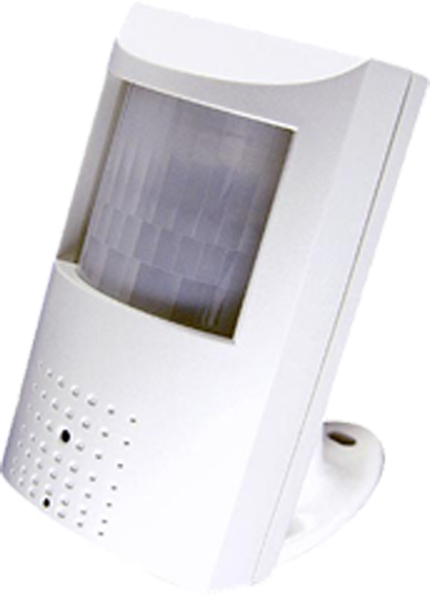

- 1080P HD-CVI CAMERA
- 1/2.8" Sony IMX322 + Eyenix EN773E
- 2 Megapixel, 1080p@25/30fps
- Super Low Illumination
- WDR, Slow Shutter, 3D DNR
- Best HD-CVI 1080P solution on the market
- STANDARD LENS: 3.6MM FIXED LENS
- UP TO 1500 FEET OF CABLE TRANSMISSION, DC 12V
|Image Sensor||1/2.8" Sony IMX322 + Eyenix EN773E|
|Effective Pixels||2 Megapixel, 1080p@25/30fps|
|Minimum Illumination||0 Lux When IR ON|
|S/N Ratio||More than 50 DB(AGC Off)|
|Video Output||1-channel 1080P HD-CVI Output|
|Max. Transmission Range||500M by RG59/RG6/CAT5 cable|
|Operating Temperature||-20 °C ~ + 50 °C|
