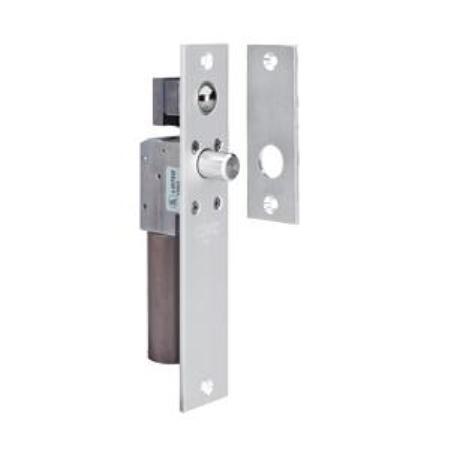

1091ADLI-WDUD SDC Spacesaver Bolt Locks, Failsafe Deadlocking 12/24VDC, Satin Stainless Steel, Mechanical Door Position Switch


$468.98


Availability: In Stock
List Price: $803.97
SKU: 1091ADLI-WDUD
Product #: 81322
Manufacturer:

Quantity

1091ADLI-WDUD SDC Spacesaver Bolt Locks, Failsafe Deadlocking 12/24VDC, Satin Stainless Steel, Mechanical Door Position Switch - The Spacesaver®, first designed and patented by SDC, is a fundamental innovation in electric locking technology for access control applications. The stainless steel bolt projects at right angles to the lock mechanism, allowing installation of Spacesaver® locks, by means of a simple cutout, in virtually any standard 1.75" frame, or in most door lock stiles. With the entire lock concealed, esthetic acceptability is complete, security is greater and installation in old or new construction is fast, easy and economical. It has a wooden frame Face Plate of 8"L x 1-1/2"W x 1/8"D (203.2 x 38.1 x 3.175mm), Strike of 4"L x 1-1/2"W x 1/4"D (101.6 x 38.1 x 3.175mm) and a Frame with Inner Dimension Requirements of 8"L x 1-1/2"W x 1-1/2"D (203.2 x 38.1 x 38.1mm). The Bolt material is solid stainless steel with a bolt diameter of 5/8" (15.875mm).The bolt throw is1091A/1091ADLI: 3/4" (19.05mm).Two aluminum mounting tabs are provided for easy lock installation. It has dual Voltage Coil of 0.45 Amp @ 24VDC Continuous Duty and 0.9 Amp @ 12VDC Continuous Duty. It’s a Failsafe Deadlocking 12/24VDC with Satin Stainless Steel finish and auxiliary locks. It complies with “positive pressure” requirements of standard UL10C and is listed in US & Canada. Door and lock status monitoring sensors are installed and concealed in the lock. The need for additional door and frame preparations is eliminated. Magnetic bolt status sensor is behind the faceplate to inhibit tampering. Applications include: Remote Door and Lock Status; Mantraps; Air/Clean Rooms; Communicating Bathrooms; Door Hold Open Alarms and CCTV Activation. Mechanical Door Position Switch SPDT 5 Amps @ 30VDC Integral to the auto relock ball switch assembly. Indicates, door closed and door open. Recommended for minimum security applications only
