WEC-AHD-HI2M80S-3.7MM HD-AHD 1080P Hidden Smoke Detector Camera
More products by

WEC-AHD-HI2M80S-3.7MM HD-AHD 1080P Hidden Smoke Detector Camera

(0 reviews)



Availability In Stock


Product # 86209

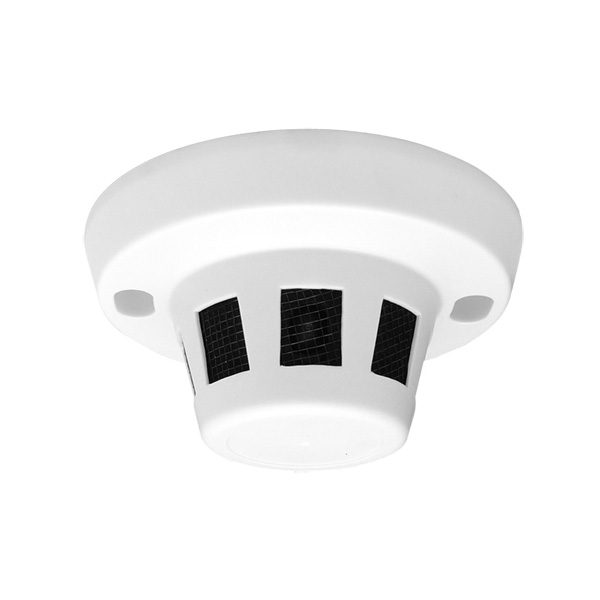

This hidden camera looks just like a smoke detector, making it perfect for discreet surveillance. The camera can capture up to a 2.4MP resolution image and has a 3.7mm fixed lens. It is also equipped with infrared LEDs for recording at night or in dark environments. The OSD menu allows for switching between analog and high definition modes.

Product Features

  • 1/2.8" 2.4MP SONY Exmor Sensor
  • Effective Pixels: 1920(H) x 1080(V)
  • 2.4 Mega Pixels Image Resolution
  • 3.7mm Fixed Lens
  • 0.01Lux @ F1.2 (AGC On), 0Lux IR LED On
  • OSD Menu (Can Switch to Analog Mode)
  • COC (Control Over Coax)
  • 30 FPS (NTSC)
  • DC12V


Model WEC-AHD-HI2M80S-3.7MM
Image Sensor 1/2.8" 2.4Mp SONY Exmor Sensor
Effective Pixels 1920 (H) x 1080 (V)
Electronic Shutter 1/60s ~ 1/100,000s
Min. Illumination >0.01Lux @ F1.2
Video Output 1.0Vp-p
Video Frame Rate 1080P / 30 fps
Camera Features
IR LEDs Distance N/A
Day / Night Auto (ICR) / B&W / Color
Noise Reduction 2D DNR
OSD Menu Yes
Focal Distance 3.7mm
Power Supply DC 12V ± 10%
Power Consumption 500 mA
Working Environment -22°F ~ 140°F (-30°C ~ +60°C), Humidity: Indoor - 0 ~ 85% (Non-condensation)
Dimensions 4.7" x 2.2" (120 x 56mm)
Weight .2lbs (0.09kg)
