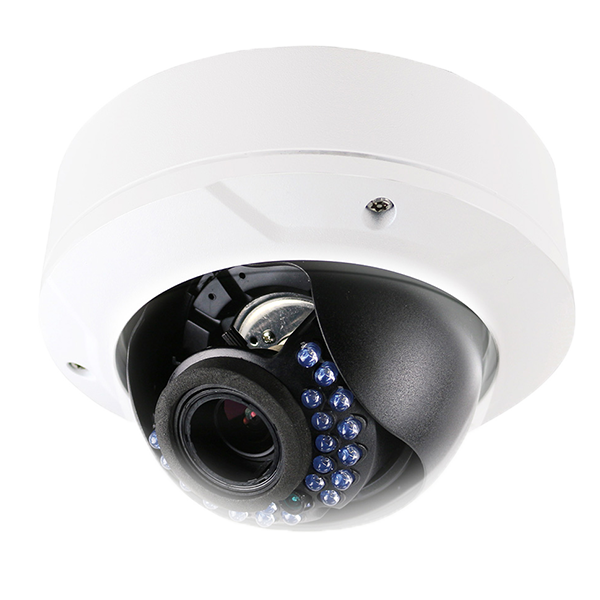

Platinum Varifocal Vandal Dome Network IP Camera 4.1MP
More products by
LT Security

Platinum Varifocal Vandal Dome Network IP Camera 4.1MP


(0 reviews)

$342.00

$428.00

Availability In Stock

SKU CMIP7243-S

Product # 86656

  • 4.1MP High Defnition
  • 2.8-12mm Varifocal Lens
  • H.264 Zip+
  • Up to 2688×1520 Resolution
  • 24 IR LEDs up to 100ft
  • 3D DNR, DWDR, BLC, VCA
  • Alarm I/O, Audio I/O
  • Micro SD/SDHC/SDXC Card Slot
  • IK10, IP66
  • DC 12V, PoE

Camera



  • Image Sensor 1/3" Progressive Scan CMOS
  • Min. Illumination 0.01Lux @ (F1.2,AGC ON), 0 .01 4 Lux @(F1.4,AGC ON), 0 Lux with IR
  • Shutter Speed 1/3 s to 1/10,000 s
  • Slow Shutter Support
  • Lens 2.8 - 12 mm @ F1.4
  • Lens Mount Φ14
  • Day & Night IR cut filter with auto switch
  • DNR 3D DNR
  • Wide Dynamic Range DWDR
  • Angle Adjustment Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°

Compression Standard



  • Video Compression H.264 / MJPEG/H.264 Zip+
  • H.264 Type Main Profile
  • Video Bit Rate 32 Kbps ~ 8 Mbps
  • Audio Compression G.711/G.722.1/G.726/MP2L2
  • Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)





  • Max. Resolution 2688×1520
  • Fram Rate 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
  • 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
  • Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • BLC Support, zone configurable
  • ROI Codec Support


Network



  • Network Storage NAS (Support NFS,SMB/CIFS), ANR
  • Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
  • Protocls TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • General One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
  • Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI


Interface



  • Communication Interface 1 RJ45 10M/100M Ethernet port
  • On-Board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
  • Reset Yes


General



  • Working Temperature
  • /Humidity -22 °F ~ 140 °F (-30 °C ~ 60 °C)
  • Humidity 95% or less (non-condensing)
  • Power Supply DC12V ± 10%, PoE (802.3af)
  • Power Consumption Max. 5.5W
  • IR Range Approx. 100ft (30 meters)
  • Weather Proof Ratings IP66
  • Impact prtoection IEC6006 8-27 5Eh, 20J; EN50102, up to IK10
  • DimensionsCategory Φ 5. 5” × 3.9”(Φ 140 × 99.9 mm)
  • Weight 2.20lbs (1000 g)
There have been no reviews


Spec Sheet Spec Sheet (3548 KB)
User Manual User Manual (3329 KB)
Quick Start Guide Quick Start Guide (980 KB)
