Platinum Varifocal Dome IP Camera 2.1MP
More products by
LT Security

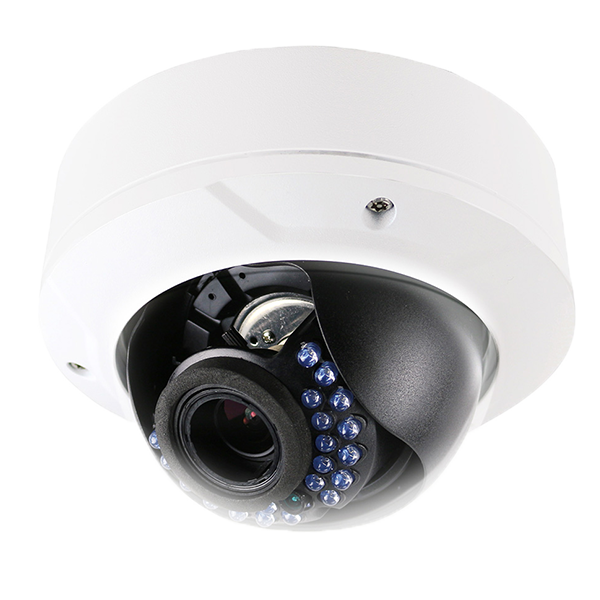

Platinum Varifocal Dome IP Camera 2.1MP


(0 reviews)

$320.00

$400.00

Availability In Stock

SKU CMIP7223W-S

Product # 86653

  • 2.1MP High Definition
  • 1/2.8” CMOS
  • 1920X1080P@30fps
  • 2.8-12mm Varifocal Lens
  • 24 IR LEDs up to 100ft
  • 3D DNR, WDR, BLC, VCA
  • Micro SD/ SDHC/ SDXC Card Slot
  • Audio I/O, Alarm I/O
  • Vandalproof, IP66
  • Junction Box Included
  • DC 12V, PoE




Camera



  • Image Sensor1/2.8 " Progressive Scan CMOS
  • Min. Illumination0.01Lux @ (F1.2,AGC ON), 0 .01 4 Lux @(F1.4,AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/10,000 s
  • Slow ShutterSupport
  • Lens2.8 - 12 mm @ F1.4
  • Lens MountΦ14
  • Day & NightIR cut filter with auto switch
  • DNR3D DNR
  • Wide Dynamic Range120dB
  • Angle AdjustmentPan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°


Compression Standard



  • Video CompressionH.264 / MJPEG/H.264 Zip+
  • H.264 TypeMain Profile
  • Video Bit Rate32 Kbps ~ 8 Mbps
  • Audio CompressionG.711/G.722.1/G.726/MP2L2
  • Audio Bit rate64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)





  • Max. Resolution1920 × 1080
  • Frame Rate60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • 50Hz: 25fps(1920 × 1080, 1280 × 960, 1280 × 720)
  • Image SettingRotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • BLCSupport, zone configurable
  • ROI CodecSupport


Network



  • Network StorageNAS (Support NFS,SMB/CIFS), ANR
  • Alarm TriggerMotion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
  • ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • GeneralOne-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
  • StandardONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI


Interface



  • Communication Interface1 RJ45 10M/100M Ethernet port
  • On-board storageBuilt-in Micro SD/SDHC/SDXC slot, up to 128GB
  • ResetYes


General



  • Working Temperature
  • /Humidity -22 °F ~ 140 °F (-30 °C ~ 60 °C)
  • Humidity 95% or less (non-condensing)
  • Power SupplyDC12V ± 10%, PoE (802.3af)
  • Power ConsumptionMax. 5.5W
  • IR RangeApprox. 100ft (30 meters)
  • Weather Proof RatingsIP66
  • Impact ProtectionIEC6006 8-27 5Eh, 20J; EN50102, up to IK10
  • DimensionsΦ 5. 5” × 3.9”(Φ 140 × 99.9 mm)
  • Weight2.20lbs (1000 g)
