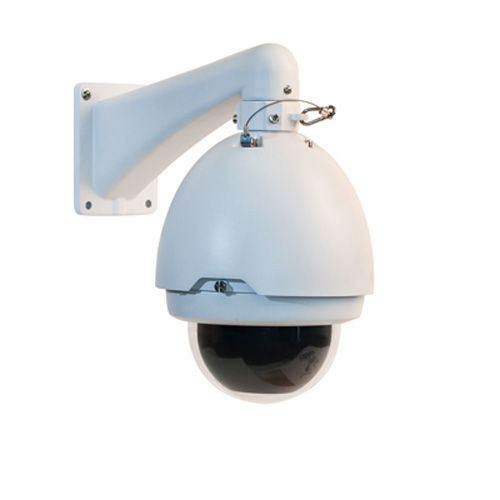

IMAX-PTZ-36X 600TVL 36x Zoom Module High-Speed PTZ With Intelligent Smart Zoom
More products by

IMAX-PTZ-36X 600TVL 36x Zoom Module High-Speed PTZ With Intelligent Smart Zoom

(1 reviews)



Availability In Stock
Ships Same Day


Product # 74982

Camera Resolution 540-550 TV Lines

UPC 881314693504

This surveillance camera will record 700TVL color footage in as low as .01 Lux then switch to black and white for recording between .01-.001 Lux. It has 36X optical zoom and 255 preset positions for pan/tilt. The security camera also comes equipped with Wide Dyanmic Range, infrared cut filter and auto focus. It is approved for indoor or outdoor use.


Product Features

  • Powerful 36x optical zoom
  • High resolution @ 700TVL/600TVL
  • DWDR, Day/Night (ICR), DNR (2D & 3D), Auto iris, Auto focus, AWB, AGC, BLC
  • Max 400°/s pan speed, 360° continuous pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 7/2 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • IP67, easy-installation



Model IMAX-PTZ-36X
Image Sensor 1/4" Super HAD CCD II
Effective Pixels 752(H) × 582(V) / 768 (H) × 494(V)
Horizontal Resolution Color: 600TVL; B/W: 650TVL
Scanning System Interlaced
Electronic Shutter Speed 1/1~1/100,000s
Min. Illumination Color: 0.01Lux/F1.6, B/W: 0.001Lux/F1.6
S/N Ratio More than 50dB
Video Output BNC(1.0Vp-p,75Ω), PAL/NTSC
Camera Features
Max IR LEDs Length 100m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction 2D/3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Focal Length 3.4mm~122.4mm(36x Optical zoom)
Max. Apeture F1.6 ~ F4.5
Focus Control Auto/Manual
Angle of View Horizontal: 57.8° ~ 1.7°
Close Focus Distance 10mm ~ 1000mm
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~300°/s; Tilt: 0.1° ~250°/s
Preset Speed Pan: 400°/s; Tilt: 300°/s
Preset 80(DH-SD), 255(Pelco-P/D)
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power Up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol DH-SD, Pelco-P/D (Auto recognition)
Auxiliary Interface
RS485 1 port
Alarm 7/2 channel In/Out
Power Supply AC 24V/3.0A (±10%), DC12V Optional
Power Consumption 15W, 25W (Heater on)
Working Environment -40°F ~ +140°F (-40°C ~ +60°C), Less than 90%RH
Protection Level IP67, IK10 Optional
Dimensions Φ8.74" (222mm) x 12.68" (322mm)
Weight 11.02 lbs
Average customer rating:
(1 reviews)

1 Most useful customer reviews (see all reviews):
Apr 16, 2014
This customer purchased the item at our site.
Easy install and easy setup. Instructions weren't worth much but the camera works great. Excellent daytime picture and if you have enough light at night it is great. I have a lot of night vision cameras and they help light up things enough that I can tell my truck color at night. Great deal for the price!
