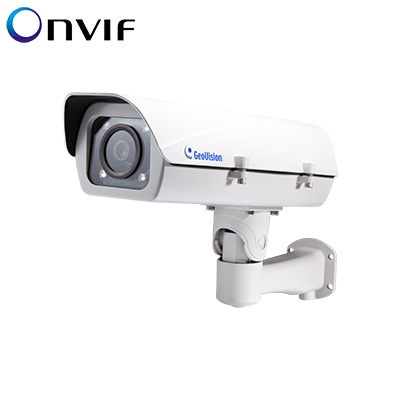

GV-LPC2210 2MP 2.5x Zoom Super Low Lux Color Network Camera
More products by
Geovision

GV-LPC2210 2MP 2.5x Zoom Super Low Lux Color Network Camera


(0 reviews)

$920.00

$1,999.99

Availability In Stock
Ships within 1 to 12 Hours

SKU GV-LPC2210

Product # 86555

GV-LPC2210 is a 2 MP color network camera designed for recognition of reflective license plates on vehicles traveling up at 120 km/h (75 mph) or less with extreme temperature resistance (-40°C ~ 50°C / -40°F ~ 122°F). It is weather proof (IP67). Equipped with a Super Low Lux CMOS image sensor, the camera is capable of displaying a color live view at near darkness. Its multiple high-power LEDs and build-in intelligent IR provide clear license plate for two lanes under low-light conditions at a maximum IR distance of 20 m (65.6 ft.). The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface.


Features

  • 1/2.8" progressive scan super low lux CMOS
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Dual streams from MJPEG or H.264
  • Up to 30 fps at 1920 x 1080
  • Maximum speed 120 km/h (75 mph)
  • Recognition for reflective License Plate only
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Maximum IR distance 20 m (65.6 ft)
  • DC 48V / AC 24V (optional) / PoE ++ (120 W)
  • Built-in heater and fan
  • Support for TV-out
  • Two-way audio
  • Support for I/O (1 in / 1 out)
  • Defog
  • Motion detection
  • Privacy Mask
  • Text overlay
  • IP address filtering
  • Supports iPhone, iPad, Android & 3GPP
  • ONVIF (Profile S) conformant
  • 31 languages on Web interface
  • * Optional GV-PA482 PoE Adapter is required for applying PoE function.
Camera GV-LPC2210
Image Sensor 1/2.8" progressive scan super low lux CMOS
Picture Elements 1920 (H) x 1080 (V)
Camera Type Color, B/W
Shutter Speed Automatic: (1/1000 ~ 1/10000 sec.)
Manual: (1/200 ~ 1/2000 sec.)
White Balance Automatic / Manual (2800K ~ 8500K)
S/N Ratio 52 dB
Max. Speed 120 km/h (75 mph)
Lens
Megapixel 2 MP
Lens Type Motorized varifocal lens
Focal Length 9 ~ 22 mm
Maximum Aperture F/1.2
Image Format 1/2.7"
Operation Focus Auto Focus
Zoom 2.5X Optical Zoom
Iris P-Iris
IR LED Quantity 4 high-power IR LEDs
IR Distance 10 ~ 20 m (32.8 ~ 65.6 ft)
Operation
Video Compression H.264, MJPEG
Video Streaming Dual streams from H.264 and MJPEG
Frame Rate 30 fps at 1920 x 1080
* The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Gamma, Auto Exposure, White Balance, Flicker less, Image Orientation, Shutter Speed, Maximum Video Gain, D/N Sensitivity, Denoise, Defog, Metering
Audio Compression G.711, AAC (optional)
Audio Support Two-way Audio
Video Resolution
Main Stream 4:3 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream 4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
TV-Out NTSC, PAL BNC connector (640 x 480 resolution)
Network
Interface 10/100 Base-T Ethernet, RJ-45 connector
Protocol HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)
Mechanical
Temperature Detector Yes
Camera Angle Adjustment Pan 0° ~ 270°
Tilt 0° ~ 70°
Connectors Power DC 48V, AC 24V (optional), High PoE (PoE++, 120 W)
Ethernet RJ-45
Audio 1 In (microphone jack, 3.5 mm / 0.14")
1 Out (Stereo phone jack, 3.5 mm / 0.14")
Digital I/O 1 In / 1 Out
TV-Out BNC connector (640 x 480 resolution)
LED Indicator N/A
General
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Humidity 10% ~ 90% (non-condensing)
Power Source DC 48V, 2.5A, AC 24V 3A (Optional), High PoE (PoE++, 120 W)
* If you require AC 24V 3A for optional operation, please specify upon ordering for the correct value of capacitance to be placed in the camera.
Max. Power Consumption 50 W
Dimensions Without Support Rack 406 x 145 x 109 mm (16" x 5.7" x 4.3")
Cable Length 1 m (3.28ft)
Weight With rack 3.32 kg (7.32 lbs)
Without support rack 2.62 kg (5.78 lbs)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Heater On -40°C ~ 8°C (-40°F ~ 46.4°F)
Fan Constantly On
Regulatory CE, FCC, RCM, RoHS compliant
Web Interface
Installation & Management Web-based configuration
Firmware Upgrade Remote upgrade through Web Browser
GV-IP Device Utility included in the Software DVD
Access from Web Browser Live View, Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Text Overlay
Language Arabic / Bulgarian / Czech / Danish / Dutch / English / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Application
Network Storage GV-System (GV-DVR/NVR), GV-VMS, GV-Recording Server
Smart Device Access • GV-Eye for Android and iOS
• Embedded 3GPP/ISMA browser
Live Viewing IE, Chrome, Firefox, Edge, Safari
CMS Server support GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
LPR Management GV-ASManager

Note:
1. Specifications are subject to change without notice.
2. Optionally purchasing GV-PA482 PoE Adapter is required for applying PoE function.
3. Try to avoid placing the camera where it can be subjected to direct LED light. The LED lighting from vehicles, streetlights, etc. may cause flickering images.
  • The GV-LPC2210 camera
  • Screw Anchor x 4
  • Screw x 4
  • Washer x 4
  • Torx Wrench
  • Power Adapter (DC 48V, 2.5A, 120 W)
  • AC Power Cord
  • Silica Gel Bag
  • Adhesive tape for Silica Gel Bag
  • GV-IP LPR Camera Software CD
  • GV-NVR Software DVD
  • GV-ASManager Software DVD
  • GV-LPR Camera Installation Guide
  • Warranty Card
