GV-B1200LZ In-Swing door brackets for GV-ML1200
More products by

GV-B1200LZ In-Swing door brackets for GV-ML1200

(0 reviews)

Availability In Stock
Ships within 1 to 12 Hours


Product # 86204

GeoVision Authorized Distributor Warranty

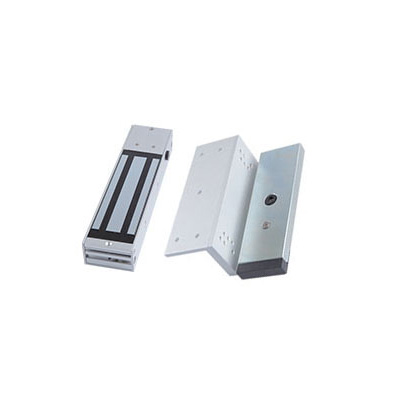

The GV-B1200LZ Brackets are required for installing the GV-ML1200 electromagnetic lock on in-swing doors. The L bracket is used to mount the magnetic GV-ML1200 lock body on the door frame above the door and the Z brackets attach the magnet faceplate to the door.

Holding Force 544.3 kg (1200 lb)
Dimensions (L x W x H) L Bracket 266 x 76 x 38 mm (10.5" x 3" x 1.5")
Z Brackets x 2 185 x 63.8 x 63.8 mm (7.3" x 2.5" x 2.5")
Material Aluminum
Weight (3 brackets) 1.24 kg (2.73 lb)

Note: The lock body and the magnet faceplate are not included.
