GeoVision Webcam Setup Guide (pt. 3)

Example 2 Netgear DG834

Open Internet Explorer
Enter the router IP address 192.168.1.1 (Router IP) in the Address Bar

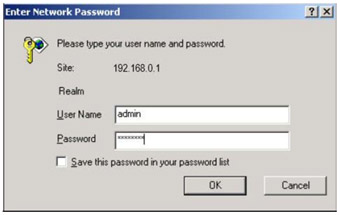

Enter the User name and Password
Default User name admin default Password <blank>

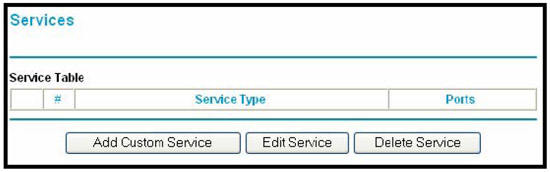

Click on Services under Firewall
Click
on Add Custom Service


Create a service for 4550
Name
the Service GV1
Set Type
to TCP
Set Start Port
to 4550
Set Finish Port
to 4550
Click Apply

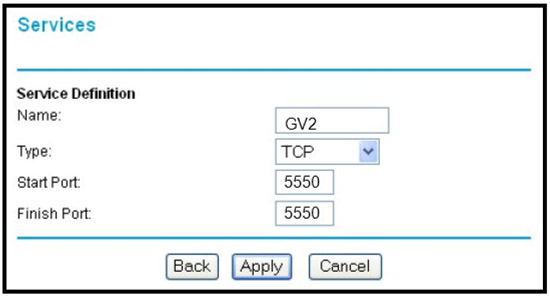

Create a service for 5550
Name
the Service GV2
Set Type
to TCP
Set Start Port
to 5550
Set Finish Port
to 5550
Click Apply

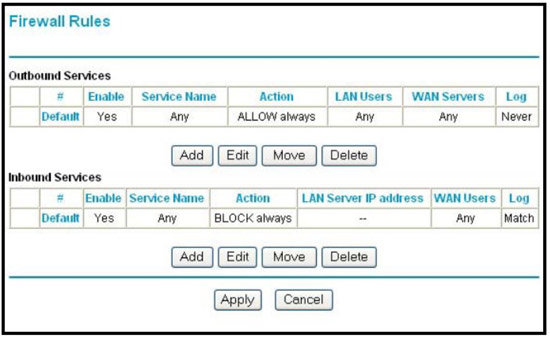

Click on Rules under Firewall

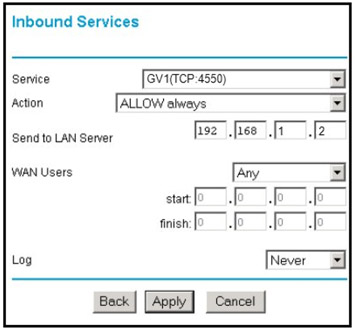

Click on Add under Inbound Services


Type the following
Click
on Apply


Click on Add under Inbound Services
Type the following
Click
on Apply


Click on Add under Inbound Services
Type the following
Click
on Apply


Click on Apply
