WEC-36X-BOX Manual


:
from
to
Clear all

Notice (Be Sure You Read It Before Order):

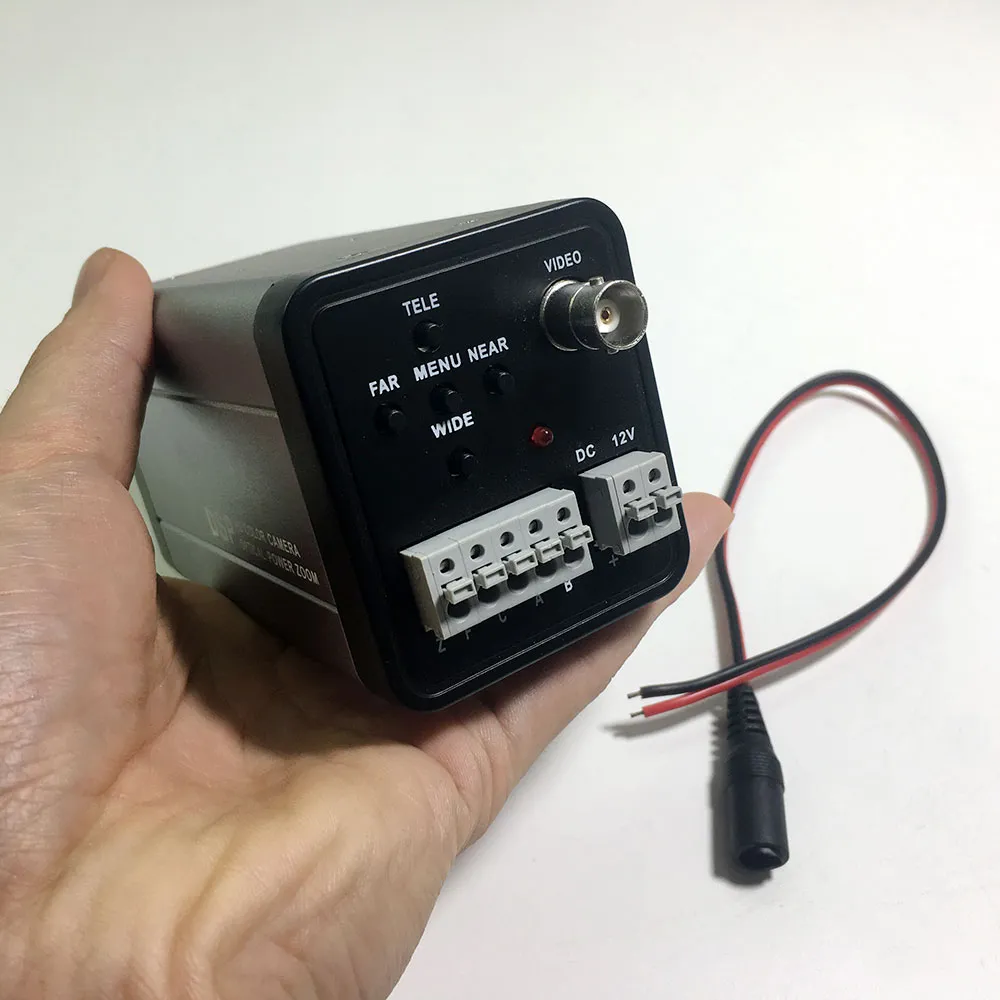

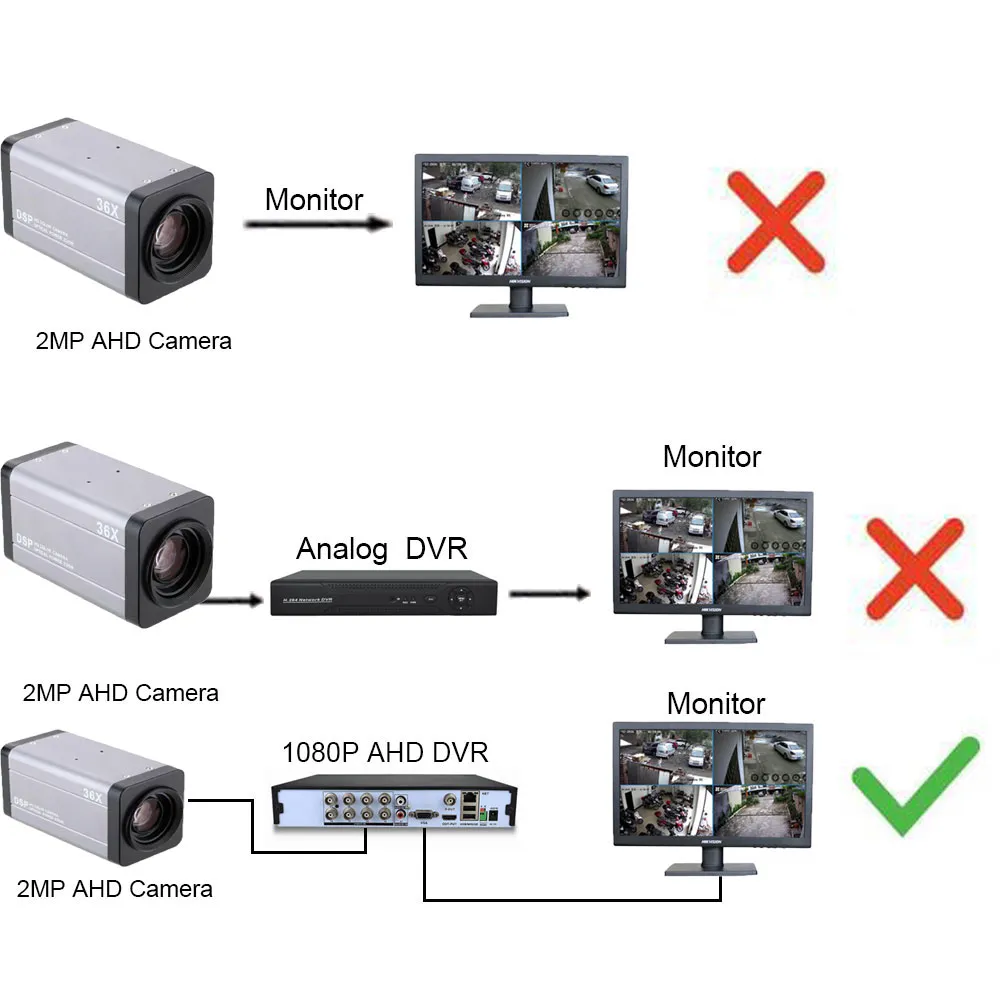

1.This 4-in-1 zoom camera outputs 5MP/1080P AHD or CVBS by factory default.You can switch among AHD, TVI, CVI and CVBS formats in hidden OSD menu as per below instructions.AHD/TVI/CVI/CVBS hybrid DVR/HDVR or CCTV tester is required to obtain camera images in corresponding format.Without AHD/TVI/CVI DVR/HVR, you CAN NOT get AHD/TVI/CVI camera images with direct connection to regular monitor, unless your monitor supports AHD/TVI/CVI input. Besides, make sure your DVR/HVR supports 5MP /1080P AHD/TVI/CVI input.--VERY IMPORTANT!

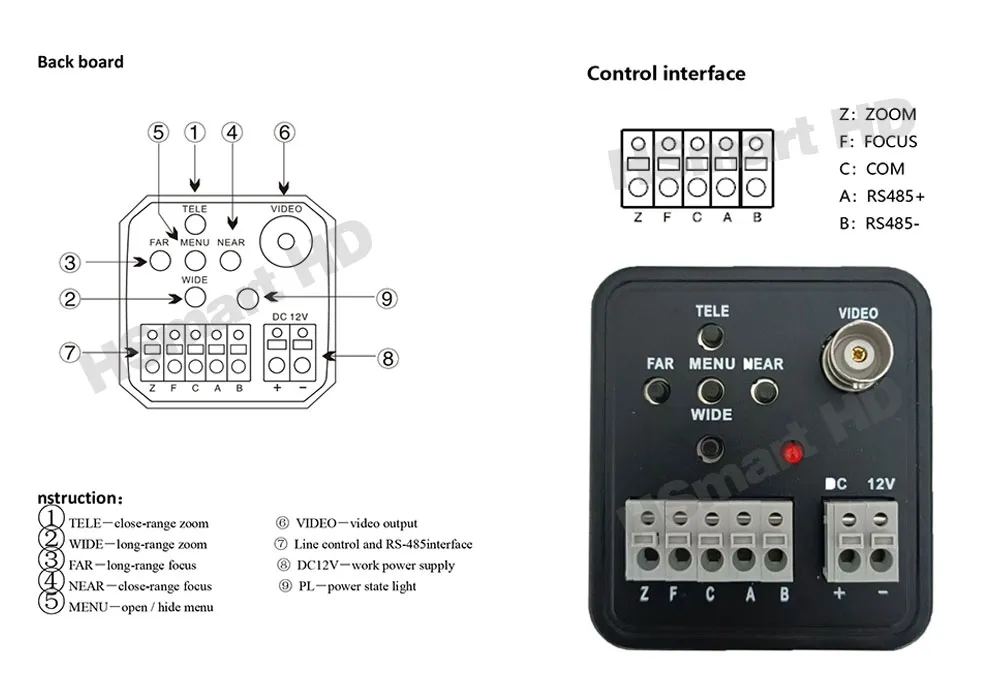

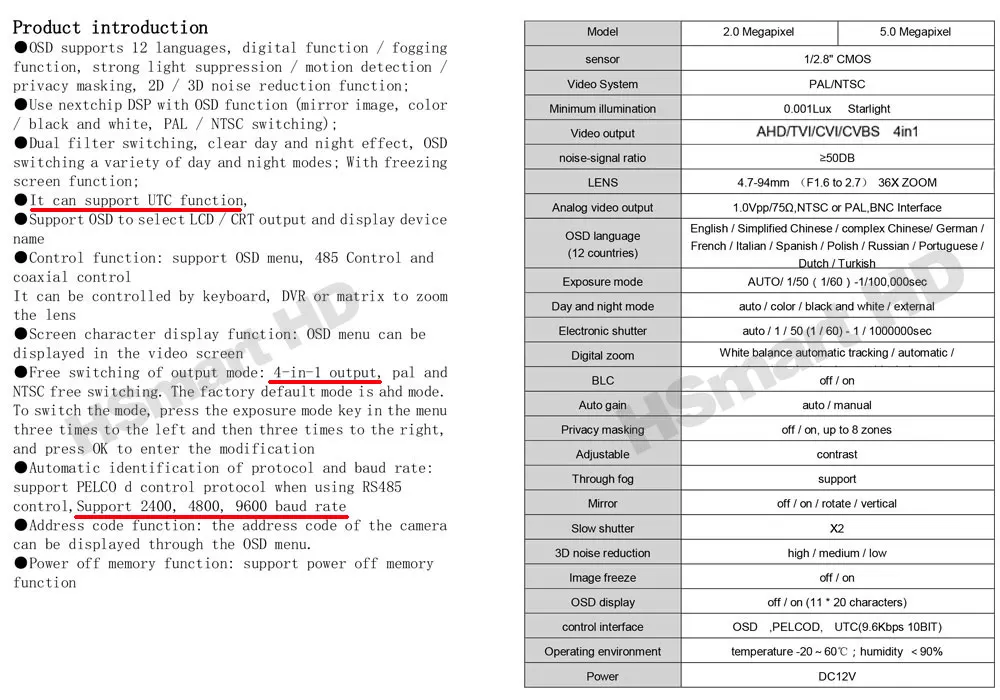

Specification


AHD is short for Analog High Definition, unique alternative standard for HD data transmission solution over coaxial cable, different from CVBS analog (D1/960H) solution.

It is developed by the reputable video processor designer Nextchip headquarted in Korea, who is well-known for CCD ISP NVP2040/2041 (760H), NVP2080/2090 (960H), CMOS ISP NVP2430/2431 (960P) and NVP2410/2421/2400/2440/2441 (1080P), etc. Compared with other coaxial HD solutions, AHD features easy upgrading current analog system to HD, 500m transmission over 75-3 cable, supporting 960H/D1 display (subject to camera R&D), open R&D platform and better cost-efficiency.




Features:

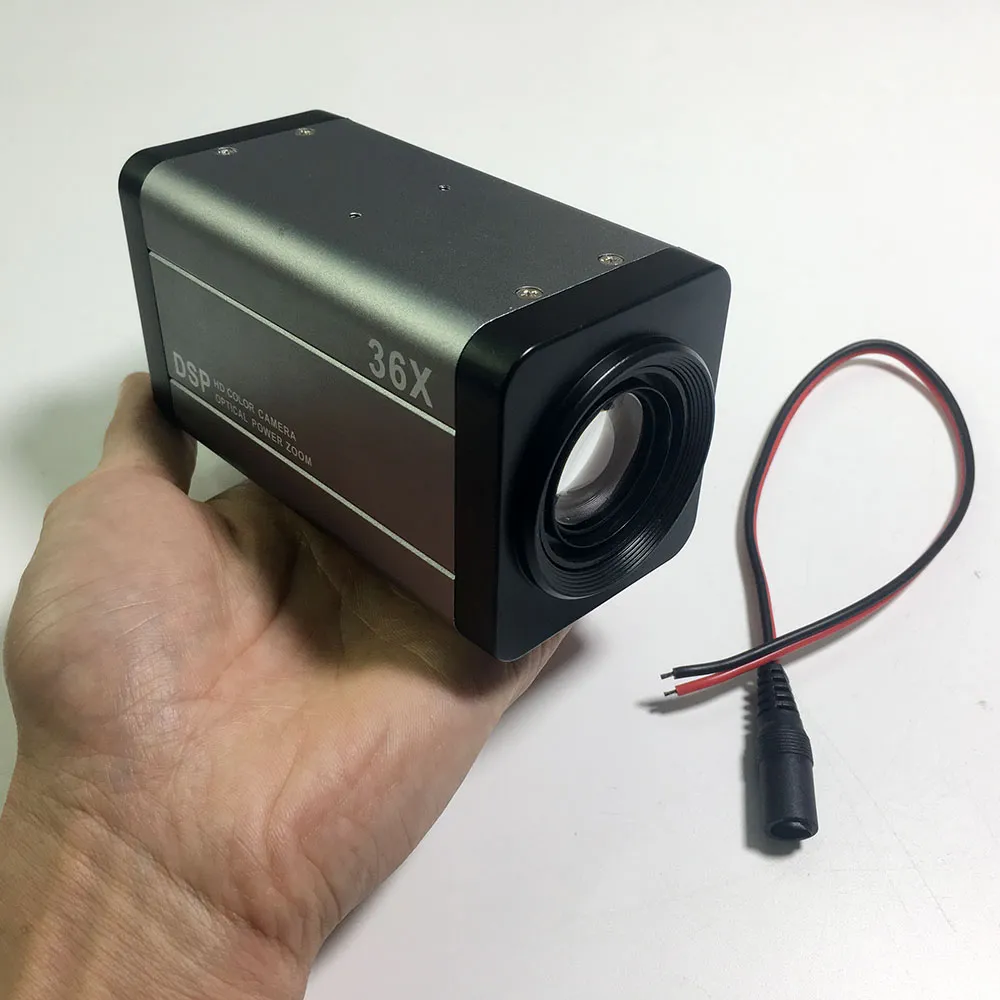

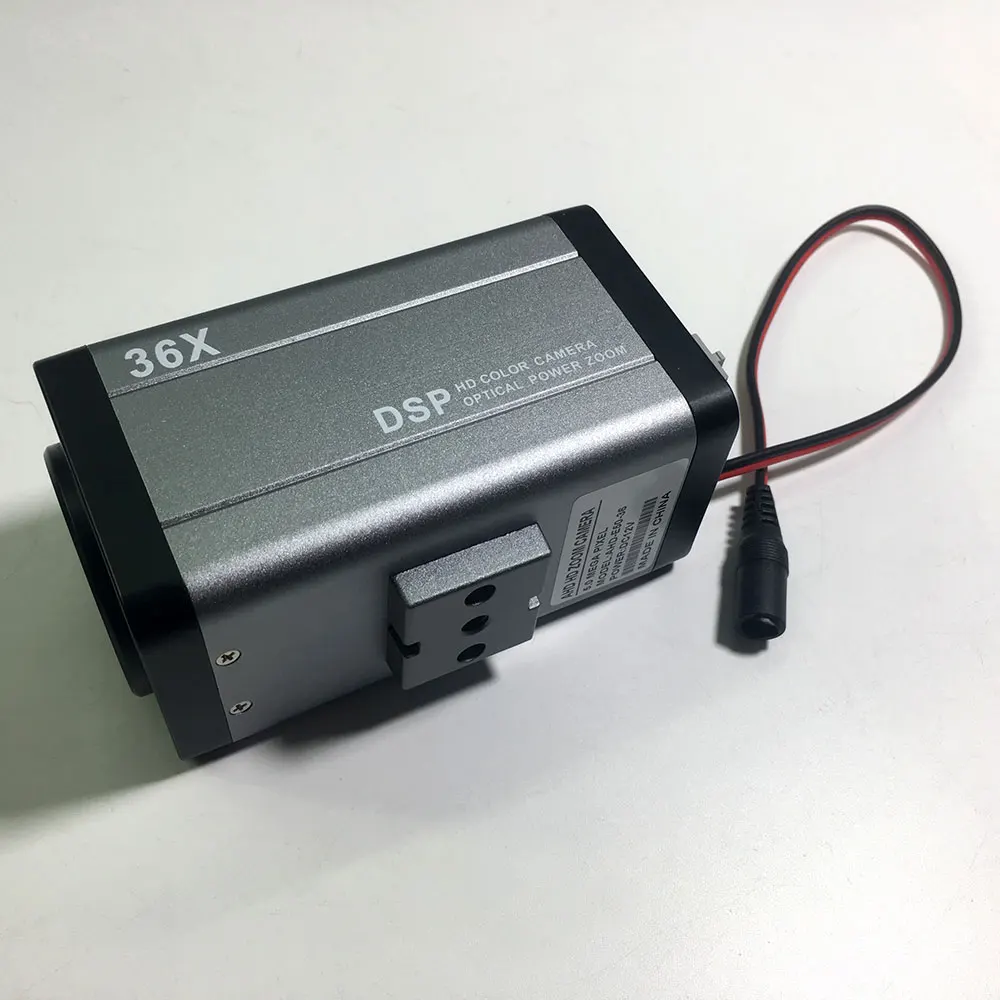

1. 5.0MP 2 megapixel 4-in-1 AHD/TVI/CVI/CVBS zoom camera, wireless remote controller

2. Support AHD/TVI/CVI/CVBS output, default AHD

3. High performance 1/2.9" Sony IMX323 2.1MP CMOS sensor, NVP2441H DSP -IMX323 sensor is upgraded to model IMX307 in 2020 (5MP AHD 36X BOX:Sensor is 2447+OVO5A10)

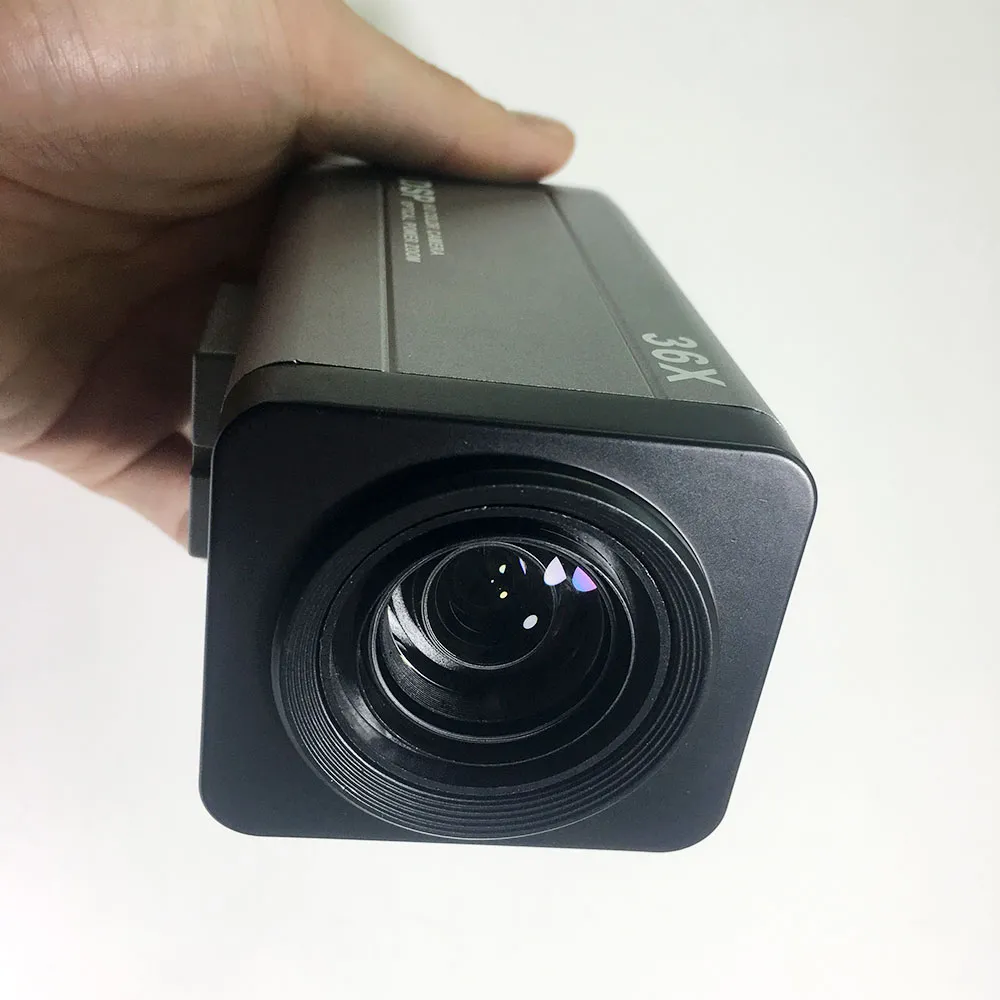

4. 30x/36x zoom display (18x optical lens)

5. Day/night, IR CUT (ICR),double-filter switch, more natural color at day time and clearer images at night

6.Minimum illumination: Color 0.05lux, B/W 0.005lux

7. HD pictures, Max resolution 1920*1080 (1080P)

8. Auto focus, auto exposure and auto white balance control

9. Support RS485 and Pelco Protocol

10. Support UTC (Up the Coax) control

11. Suitable for different monitoring environment

12. Great for video surveillance and industrial use

Packing List:
1X Camera

1X 1 Feet DC Power Pigtail Cable DC Female 5.5x2.1mm for CCTV Security Camera
