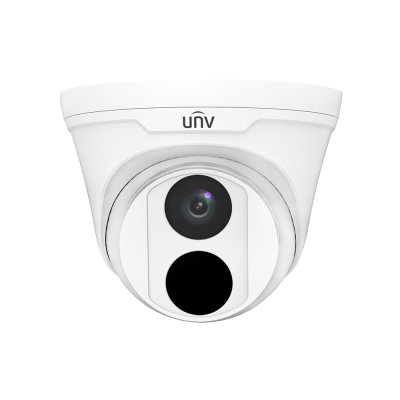

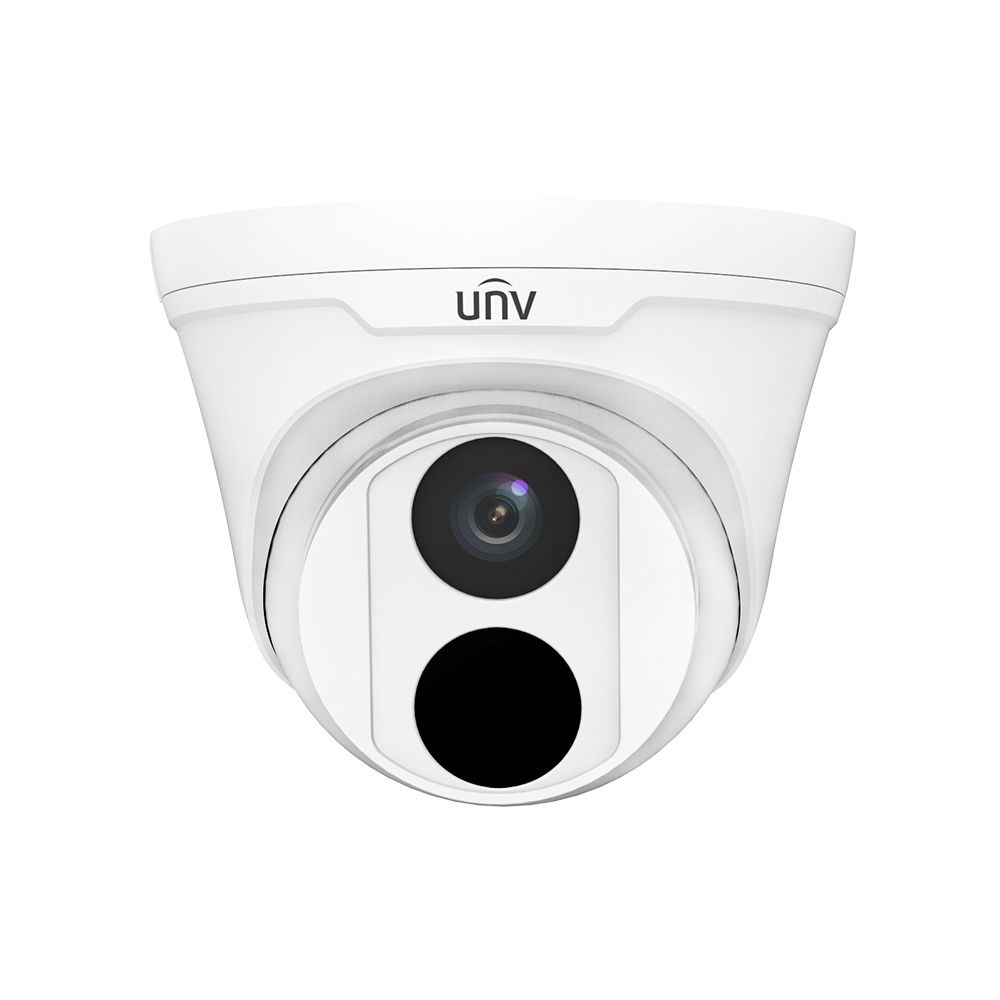

Uniview UNV 4MP Fixed Dome Network Camera | WEC-IPC3614LR3PF28D
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Ultra 265,H.265, H.264, MJPEG
ROI (Region of Interest)
ONVIF Conformance
Wide temperature range: -30°C to 60°C (-22°F to 140°F)
Wide voltage range of ±25%
IP67
3-Axis
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
More Information
Image Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
Image Size 2592 × 1520
Electronic Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination
Color: 0.03 Lux (F2.0, AGC ON)
B/W: 0 Lux with IR on
Focal Length 2.8mm@F2.0
DORI Distance
Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 42 16.8 8.4 4.2
IR LEDs Smart-IR
IR Distance Up to 30m (98 ft) IR range
S/N Ratio > 52dB
Angle of View (H): 104.4° (V): 54.4° (O): 135.7°
Angle Adjustment
Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Wide Dynamic Range Up to 120dB WDR
OSD Yes
Video Compression Ultra 265,H.265, H.264, MJPEG
Video Resolution
4MP / 3MP / 2MP / 1MP / D1
Video Frame Rate
Main Stream: 4MP (2592*1520): Max. 20 fps;
Sub Stream: 720P (1280*720): Max. 30 fps;
Third Stream: D1 (720×576): Max. 30 fps
9:16 Corridor Mode Supported
Day / Night IR-cut filter with auto switch (ICR)
BLC Mode Supported
HLC Supported
ROI Up to 2 areas
Digital Noise Reduction 2D / 3D DNR
Motion Detection Up to 4 areas
Privacy Masking Up to 8 areas
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Ethernet RJ45 x 1, 10M/100M Base-TX Ethernet
Network Protocol IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Network Interoperability ONVIF (Profile S, Profile T),API
Web Viewer IE web browser
Mobile iPhone, Android
Power Supply 12 V DC±25%, PoE (IEEE802.3 af)
Power Consumption Max 4W
Operating Temperature -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Storage Temperature -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection IP67
Dimensions 118x 96 mm (4.6” x 3.8”)
Weight 0.35kg (0.77lb)
