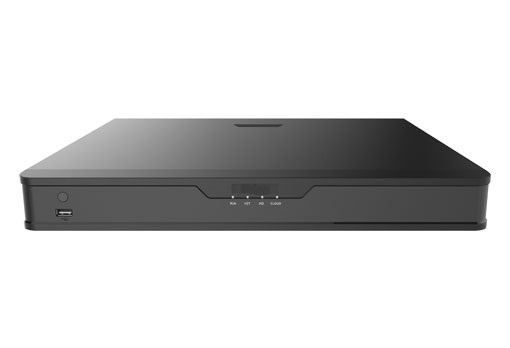

Uniview Hybrid NVR302-08Q 8CH 2-SATA NVR
SKU: WECNVR302-08Q
- Support H.265/H.264 video formats
- Support TVI,AHD, CVI,CVBS, IP cameras with adaptive access
- 8/16-channel BNC input
- Up to 8MP resolution for recording
- 4-ch(only IP up to 12ch)
- Support 1-ch HDMI output at up to 4K, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coax cable
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- Support H.265/H.264 video formats
- Support TVI,AHD, CVI,CVBS, IP cameras with adaptive access
- 8/16-channel BNC input
- Up to 8MP resolution for recording
- 4-ch(only IP up to 12ch)
- Support 1-ch HDMI output at up to 4K, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coax cable
| Weight | 4.19 lbs |
|---|---|
| Dimensions | 380 × 315 × 49 in |
| Model | NVR302-08Q | ||
Video/Audio Input | |||
| Analog Video Input | 8-ch, BNC | ||
| IP Video Input | 4-ch(only IP up to 12ch) | ||
| Supported Analog Camera Types | Support AHD input: 8MP@15fps (channel1-channel2) 5MP@20fps 4MP@30fps 3MP@30fps(channel1 – channel2) 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps(channel1-channel2) 5MP@20fps 4MP@30fps 3MP@20fps (channel1 – channel2) 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps(channel1-channel2) 4MP@30fps 1080P@30fps 720P@60fps Support CVBS input | ||
| Audio Input | 1-ch, RCA | ||
| Two-way Audio | 1-ch, RCA | ||
| Channel Associated Audio | 1-ch,RCA | ||
Network | |||
| Incoming Bandwidth | 40Mbps | ||
| Outgoing Bandwidth | 64Mbps | ||
| Remote Users | 128 | ||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE | ||
Video/Audio Output | |||
| CVBS Output | 1-ch, BNC | ||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | ||
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | ||
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P /960H/4CIF/CIF | ||
| Audio Output | 1-ch, RCA | ||
| Synchronous Playback | 8-ch | ||
Decoding | |||
| Decoding format | H.265/H.264 | ||
| Live View/ Playback | 12MP/8MP/5MP/4MP /3MP/1080P/960P/720P /960H/4CIF/CIF/QCIF | ||
| Capability | 1 x 4K@30, 1 x 6MP@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 3 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, | ||
Encoding | |||
| Frame Rate | Main stream: 8MP Lite@8fps(channel1-channel2） 5MPLite@12fps 4MP Lite@15fps 3MP@15fps(channel1 – channel2) 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max) | ||
Hard Disk | |||
| SATA | 2 SATA interfaces | ||
| Capacity | Up to 10TB for each HDD | ||
External Interface | |||
| Network Interface | 1RJ45 10M/100M self-adaptive Ethernet Interface | ||
| USB Interface | Rear panel：1 x USB2.0,Front panel：1xUSB2.0 | ||
| Serial Interface | 1 x RS485 | ||
| Alarm In | – | ||
| Alarm Out | – | ||
General | |||
| Power Supply | 12V DC Power Consumption: ≤ 8W (without HDD ) | ||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | ||
| Dimensions(W×D×H) | 380mm ×315mm× 49mm (15″ × 12.4″×1.9″) | ||
| Weight (without HDD) | ≤1.9 Kg ( 4.19lb ) | ||
