T3MK77F16SD/PWX/KIT1
SKU: T3M77XK1D
SKU: T3M77XK1DT3M77XK1D

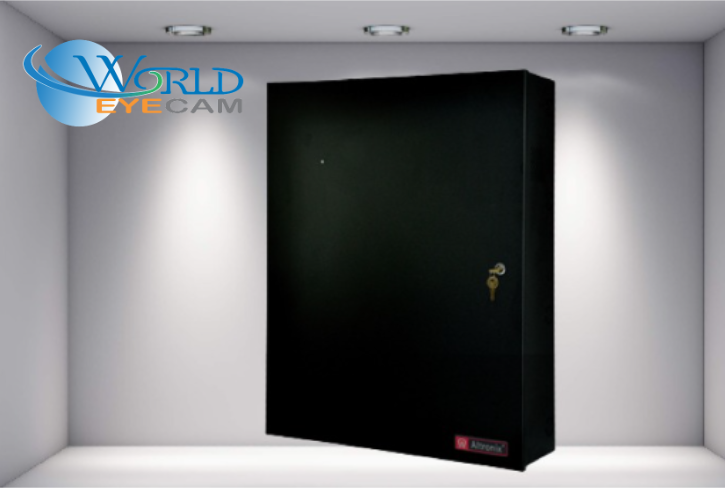

16-Door Altronix/Mercury Access and Power Integration Kit - Trove3M3 with (2) eFlow104NB, (2) ACMS8CB, (2) VR6, (2) PDS8CB, RSB2
Altronix T3M77XK1D is a 16-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M77XK1D accommodates one (1) Intelligent Dual Reader Controller and seven (7) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
*Compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
- Specifications
- Agency Listings
- Accessories
- Kit Contents
- Dimensions & Weight
- Documentation
Two (2) eFlow104NB Power Supply/Chargers
Input
- Voltage: 120VAC, 60Hz, 9A max.
- Input Fuse: 6.3A / 250V.
Output
- Voltage: 24VDC @ 10A.
- Auxiliary: 1A (unswitched).
- Protection: Overvoltage protection. Filtered and regulated.
Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 15A/32VDC.
- Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
- AC Input: 120VAC is present.
- DC Output: 24VDC is present
- Battery: Discharged or not connected.
Two (2) VR6 Voltage Regulators
Input
- Voltage: 24VDC from eFlow104NB.
Output
- Voltage: 12VDC.
- Current: 6A continuous.
- Other: Surge suppression.
Indicators LED
- Input: 24VDC is present.
- Output: Powered.
Two (2) ACMS8CB Access Power Controllers
Input
- Voltage: 24VDC from eFlow104NB.
- Input PTC: 9A.
Outputs
- Voltage: 24VDC.
- Eight (8) 24VDC independently controlled PTC outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Output PTCs: 2.5A.
Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
Two (2) PDS8CB Dual Input Power Distribution Modules
Input
- Voltage: 12VDC and/or 24VDC.
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
Outputs Ratings
- PTCs: 2.5A.
Indicators LED
- DC Output: Eight (8) individual output LEDs.
- Green: 12VDC
- Red: 24VDC.
Environmental
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
- Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
- 289 BTU/Hr.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
