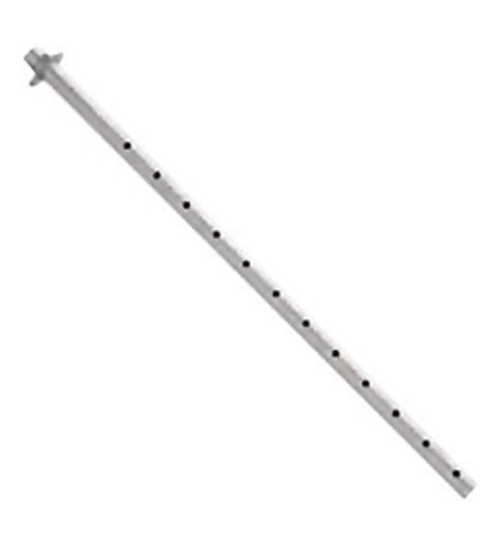

System Sensor ST-10 Metal Sampling Tube for Duct widths 8'-12'
SKU: ST-10
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Product Overview

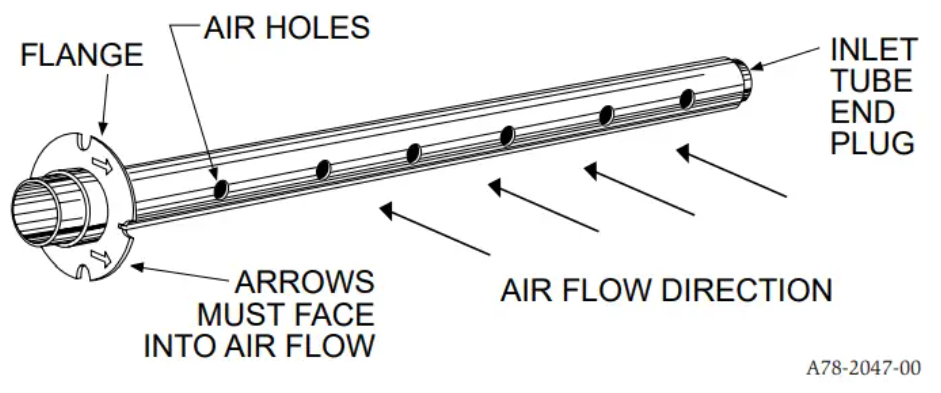

The sampling tube is identified by a series of air inlet holes on the tube. The sampling tube is always installed with the air inlet hole facing into the air flow. For duct widths greater than 18 inch, sampling tubes must be purchased separately. The recommended length is specified below. It is also recommended that the sampling tube length extend at least 2/3 across the duct width for optimal performance. Sampling tubes over 3ft long must be supported at the end opposite the duct smoke detector.
Main Features
- Metal sampling tube for duct widths 8'-12'
- Air inlet holes for efficient sampling
- Install with air inlet facing airflow
- Separate purchase for ducts over 18"
- Recommended length extends 2/3 across duct
- Support required for tubes over 3'long
Specifications
Duct Width Range:
- Suitable for ducts with widths from 8 feet to 12 feet (2.44m to 3.66m).
Material:
- Made of metal, which ensures durability and long-lasting performance in HVAC applications.
Tube Length:
- Customizable length, typically up to 10 feet (3 meters), but it can be adjusted to fit the specific duct length.
Mounting:
- Designed to be mounted on the outside of the ductwork. It requires proper installation for optimal air sampling.
Airflow Sampling:
- Designed to ensure consistent and accurate smoke detection by collecting air samples from the duct. The tube uses multiple sampling holes to capture air from the duct and deliver it to the
Connection:
- It connects directly to a System Sensor duct smoke detector (like the D4120 or D4120R model) via a standard connection interface.
Hole Configuration:
- Features multiple sampling holes for even air sampling throughout the duct.
Compliance and Approvals:
- Typically meets or exceeds UL 268A, which ensures the tube is suitable for use in a wide range of commercial and industrial applications.
Temperature Rating:
- Typically rated for 32°F to 120°F (0°C to 49°C), making it suitable for typical indoor commercial HVAC systems.
