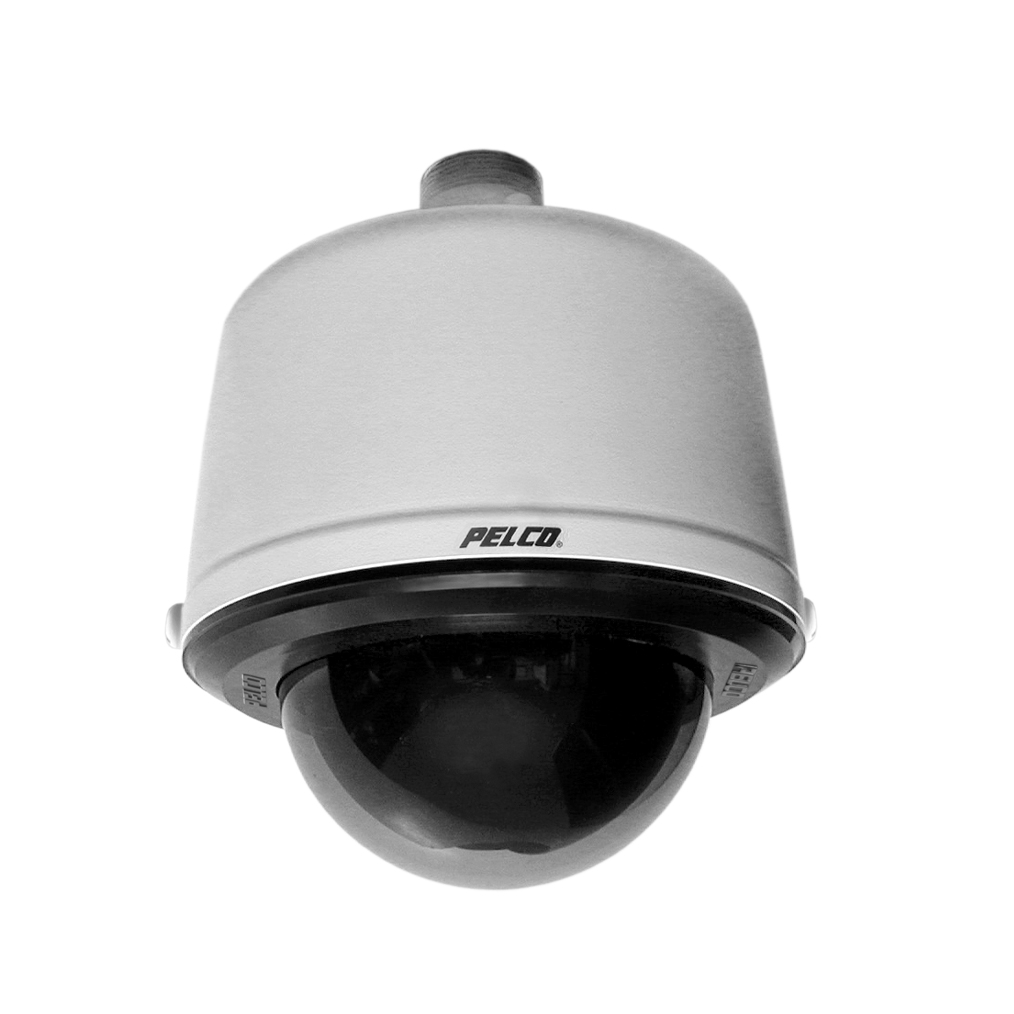

Spectra® IV IP Series Network Dome System H.264, DIGITAL PAN/TILT/ZOOM HIGH-SPEED DOME

• Ability to Control and Monitor Video Over IP Networks
• Simultaneous IP and Analog Video and Control
• H.264, MPEG-4, and MJPEG Compression
• Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP)
• Multilevel Password Protection
• 3 Autofocus, High Resolution Integrated Camera/Optics Packages
• Autotracking
• Horizontal Zone and Window Blanking
• Sensitivity Down to 0.00015 lux PAL (35X Models)
• On-Screen Compass and Tilt Display
• Up to 2 Simultaneous Video Streams
• Web Viewing, up to 16 Cameras Simultaneously
• Open IP Standards
• ONVIF v1.02 Conformant
• Bidirectional Full-Duplex Audio

Spectra® IV IP dome systems incorporate all of the features and functions of Spectra IV (including analog), while allowing you to control and monitor video over an IP network from virtually anywhere in the world. Spectra IV IP is a high-speed dome with a built-in 100Base-TX network interface for live streaming to any network application.

Spectra IV IP supports two simultaneous video streams. The two streams can be compressed in MJPEG, MPEG-4, and H.264 formats across several resolution configurations. The streams can be configured in a variety of frame rates, bit rates, and group of pictures (GOP) structures for additional bandwidth administration. The H.264 compression video files are up to 20 times smaller than MJPEG, making network video storage more affordable.

Spectra IV IP allows you to view and control analog video while viewing, recording, and controlling network IP video. There is no need to abandon your current analog infrastructure if you are making the move to network video as a recording solution. Continue to monitor and control video in the analog domain while recording video in the network domain, and let Spectra IV IP’s professional compression method do the work for you without the need for external encoders.

Spectra IV IP dome system consists of a back box, a dome drive, and a lower dome. These three system components are interchangeable with other Spectra IV IP dome systems, making retrofitting and application adjustments simple.

Spectra IV IP features several back box options. All back boxes feature built-in memory, which can be used to store camera and location-specific dome settings, including labels, presets, patterns, and zones.

All cameras in Spectra IV IP dome drives feature an EXview HAD™ imager for increased sensitivity and LowLight™ technology allowing the cameras to compensate for scenes where minimal light is present. Both the 27X and the 35X cameras feature built-in motion detection and advanced 128X wide dynamic range (WDR) that enables the system to compensate for scenes where dramatic contrasts in lighting are present. The 35X day/night camera’s electronic image stabilization digitally reduces blurring of the camera image due to vibration caused by external sources, such as wind and traffic.

Web Interface

Spectra IV IP uses a standard Web browser for powerful remote setup and administration. Up to 16 cameras can be viewed on the same network.

Network protocols such as Secure Sockets Layer (SSL) configuration for security certificates, Secure Shell (SSH) for remote logon, and Quality of Service (QoS) for priority or guarantee data flow can be managed using a Web browser.

Video Systemization

Spectra IV IP easily connects to Pelco IP and hybrid systems such as Endura® version 1.5 (or later), MPEG-4; Endura version 2.0 (or later), H.264; Digital Sentry® version 7.3 (or later); DX8100 version 2.0 (or later); and DVR5100 version 1.5.4 (or later). The camera also features open architecture connectivity to third-party software. Pelco offers an application programming interface (API) and software developer’s kit (SDK) for interfacing with Pelco’s IP cameras.
