Setup Motion Detection Recording on ImaxcamproRecorder

Description

This guide will show how to setup Motion Detection recording on a Imaxcamprorecorder with a LincX2PRO device

Here are the required steps:

  • Add LincX2PRO Device to Imaxcampro Recorder - How To Add LincX2PRO Device To a Imaxcampro Recorder
  • Follow the steps on this page to configure Motion Recording at the Imaxcampro recorder

Prerequisites

  • Imaxcampro recorder
  • LincX2PRO device
  • LincX2PRO device added to Imaxcampro recorder - How To Add LincX2PRO Device To a Imaxcampro Recorder

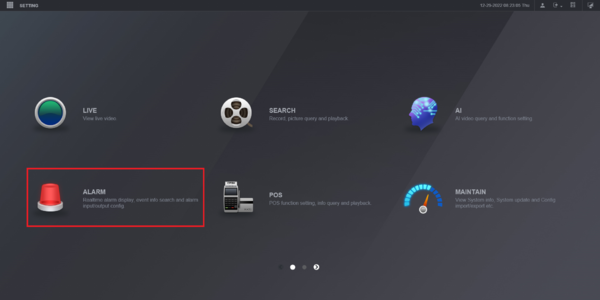

1. On the main menu select Alarm

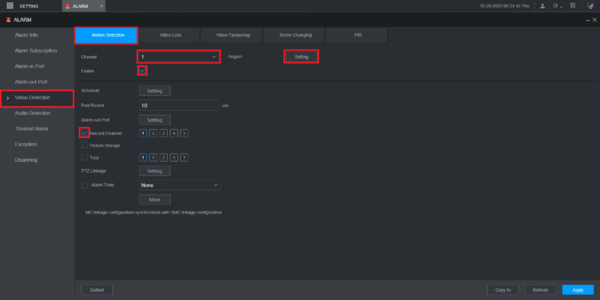

2. Select Video Detection on the left.
 Then select the Motion Detection tab at the top.
 Choose the channel from the drop-down next to Channel.
 Check the box next to Enable.
 Check the box next to Record Channel.
 Click on Setting next to Region

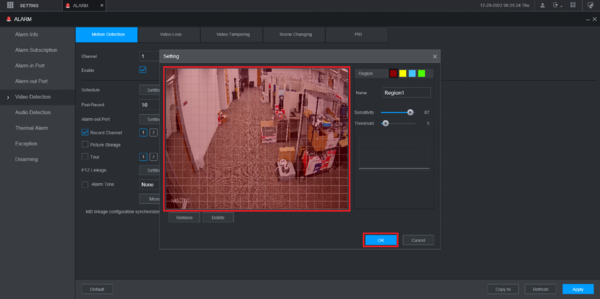

3. Highlight the areas in red where you want to track motion.
 Then click OK at the bottom


4. Select More at the bottom
 Check the boxes next to any of the other options you want to activate when motion is detected.
 Click on OK

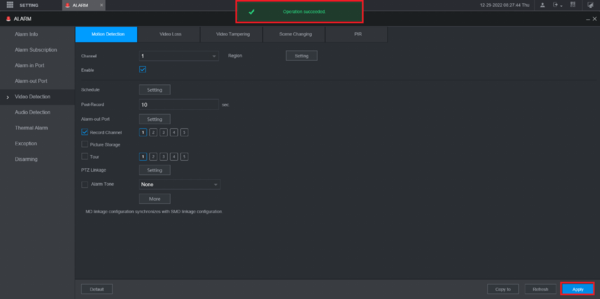

5. Click on Apply at the bottom.
 You will see "Operation Succeeded" at the top when your changes have been saved

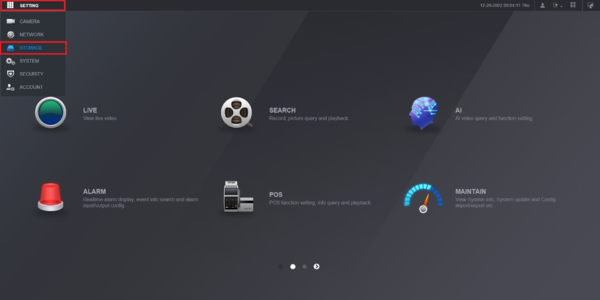

6. Click on the Setting drop-down at the top and select Storage

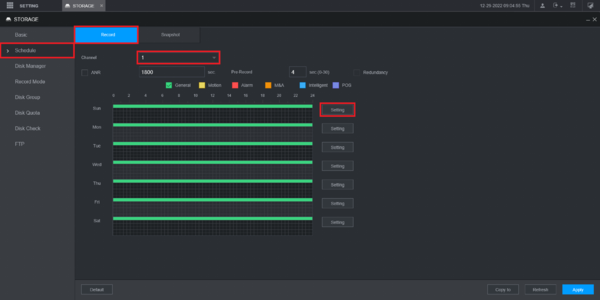

7. Select Schedule on the left.
 Then select the Record tab at the top.
 Choose the channel from the drop-down next to Channel.
 Click on the Setting button next to any day of the week.


8. Check the All box to enable all days of the week.
 Check the Motion box for "Period 1".
 Click OK at the bottom.

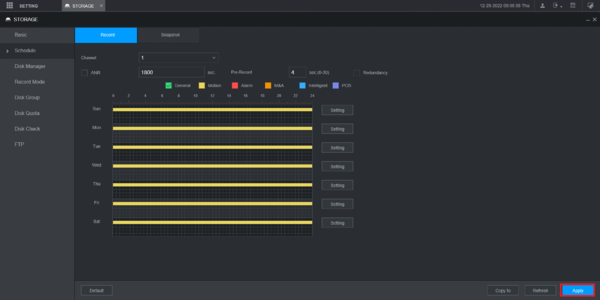

9. Click on Apply at the bottom to save the settings

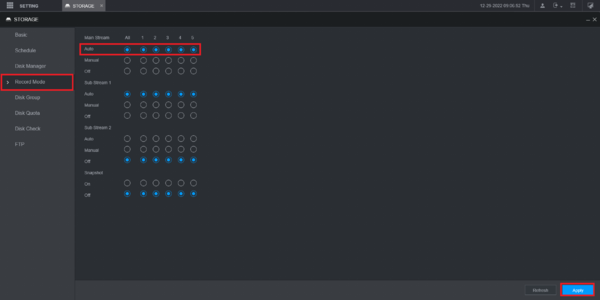

10. Select Record Mode on the left.
 Then make sure Auto is enabled for the appropriate channel(s).
 Click on Apply at the bottom.

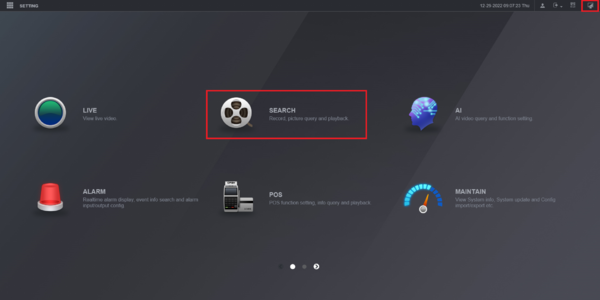

11. Click on the Main Menu icon at the top right.
 Then select Search

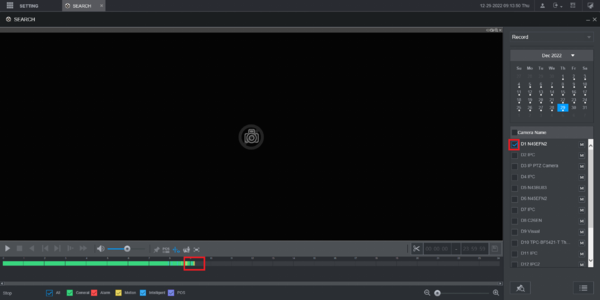

12. Check box next to the channel on the right.
 You should see yellow lines/bars for motion recording
