Secondary Voltage PS 5-18V AD
SKU: B100-BOXED1

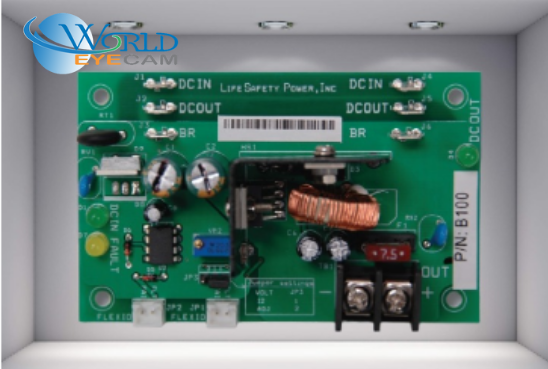

LifeSafety Power B100
Last updated
Apr 28, 2017
Programmable Voltage Power Supply, 12VDC or 5V to 18VDC adjustable @ 4 Amps, Class 2 Power Limited
The B100 secondary voltage module provides a means to easily and economically add an additional voltage to any FlexPower system. Primary power for the B100 is derived from an FPO power supply and the B100 steps the FPO voltage down to the user defined range (typically 12VDC*).
The B100 terminal block output is Class 2 power limited and jumper selectable for either a fixed 12VDC or an adjustable range between 5-18VDC at 4 amps maximum current. Multiple B100’s can be added to a system for virtually unlimited voltage combinations.
*See B100 user manual for complete capability
Agency Listings/Standards
Product listed for use in LifeSafety Power equipment
USA: UL 294, UL 603, UL 864, UL 1076, UL 1481, UL 2044, UL 2572, FCC Part 15, Subpart B, CSFM Approved Canada: ULC S318, ULC S319, ULC S527, CSA C22.2#107.1, CSA 22.2 #60950
Electrical Ratings
| Parameter | Rating |
|---|---|
| Input Voltage (From FPO Power Supply) | 12 or 24 VDC |
| Output Voltage (Jumper Select) | 12VDC or 5-18VDC (User Adjustable) |
| Output Current (Class 2 Power Limited) | 4 Amps |
| Efficiency | 91% |
| Output Ripple (12V@4A) | 82 mVp-p |
| Line Regulation (12V@4A) | <0.1±% |
| Load Regulation (12V@4A) | 0.56 ±% |
*Input voltage must be a minimum of 3V higher than output voltage
Features
Programmable output voltage
- Jumper select output voltage
- 12VDC fixed
- 5 to 18VDC user adjustable
- 4 Amps current at any selected voltage
On-board protection
- Over load protection
- Short circuit protection
- Over temperature protection
Fault reporting (to host power supply)
- Abnormal operation
- Voltage loss
- Over current
Visual Indicators
- DC in / DC out
- Fault
Benefits
- Adds an economical secondary 12V output to any 24VDC system
- Provides the odd voltage required to power modems, routers and other IT or similar devices (ie., 5V, 9V, 15V etc)
- Snap-in style mounting standoffs with fast-on connect cables for easy field installation
