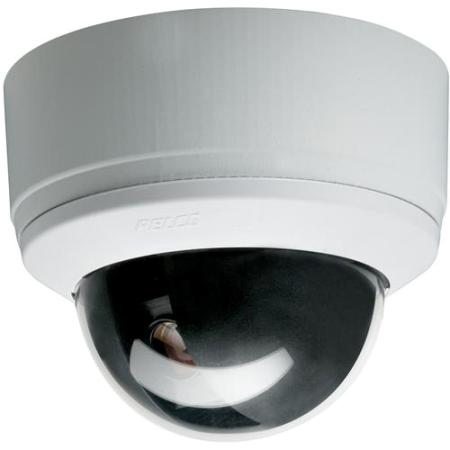

SD4-W0 INDOOR MINI PTZ SMOKED DOME
SKU: SD4-W0
For those of you looking for Pelco-level security in a small and
affordable package, Pelco offers the SD4-W0 compact PTZ dome camera. In
this camera you'll find many of the features common to a full-fledged
Spectra dome system, although on a scaled down level. These include a
decent optical zoom, continuous pan rotation and a generous number of
preset positions. You'll also appreciate the way it readily installs on
the surface or inside a hard or drop ceiling.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
SD4-W0 INDOOR MINI PTZ SMOKED DOME
For those of you looking for Pelco-level security in a small and affordable package, Pelco offers the SD4-W0 compact PTZ dome camera. In this camera you'll find many of the features common to a full-fledged Spectra dome system, although on a scaled down level. These include a decent optical zoom, continuous pan rotation and a generous number of preset positions. You'll also appreciate the way it readily installs on the surface or inside a hard or drop ceiling.
Compact Form
A compact form is important for applications needing the camera to keep a low profile.
Familiar Spectra Camera Menu Structure
It's nice to know that, as part of the Spectra family, this unit's menu structure works in the same way as any other camera in the group.
Surface/In-Ceiling Mountable
Pelco designed this camera so that you can easily install it on any flat surface or recessed inside a hard or drop ceiling, right out of the box. Optional accessories are available for wall (SWM4) or pendant (SPM4) mounting.
Integrated UTP Circuit
With the addition of a compatible active UTP receiver, you'll be able to send high quality video over a distance of up to 4000'.
Specifications :
For those of you looking for Pelco-level security in a small and affordable package, Pelco offers the SD4-W0 compact PTZ dome camera. In this camera you'll find many of the features common to a full-fledged Spectra dome system, although on a scaled down level. These include a decent optical zoom, continuous pan rotation and a generous number of preset positions. You'll also appreciate the way it readily installs on the surface or inside a hard or drop ceiling.
Compact Form
A compact form is important for applications needing the camera to keep a low profile.
Familiar Spectra Camera Menu Structure
It's nice to know that, as part of the Spectra family, this unit's menu structure works in the same way as any other camera in the group.
Surface/In-Ceiling Mountable
Pelco designed this camera so that you can easily install it on any flat surface or recessed inside a hard or drop ceiling, right out of the box. Optional accessories are available for wall (SWM4) or pendant (SPM4) mounting.
Integrated UTP Circuit
With the addition of a compatible active UTP receiver, you'll be able to send high quality video over a distance of up to 4000'.
Specifications :
| Signal System | NTSC |
| Image Sensor | 1/4" Color IT CCD |
| Number of Pixels | 768 x 494 |
| Resolution | 470 Lines |
| Lens |
Focal Length: 4.2-42mm Zoom: 10x Optical, 8x digital Zoom Speed (optical): 1.5/2.5/4.3 sec Horizontal AOV: 46.4° Wide, 5.0° tele Focus: Auto/Manual |
| Iris Operation | Automatic with manual override |
| Minimum Illumination | 3 Lux |
| Signal-to-Noise Ratio | >50dB |
| Pan Angle | 360° Continuous pan rotation |
| Pan Speed |
Manual: 0.4-80°/sec Turbo: 100°/sec Preset: 140°/sec (for variable speed operation an appropriate controller is required) |
| Tilt Angle | Unobstructed +2 ~ -92° |
| Tilt Speed | 80°/sec (for variable speed operation an appropriate controller is required) |
| Preset Positions | 64 Presets: 53 User Definable and 11 Predefined |
| Other PTZ Functions |
On-Screen Compass 4 Programmable Zones Proportional Pan & Tilt Window Blanking Area Programmable Limit Stops |
| Microphone | No |
| Controls |
White Balance (Auto/Manual) Shutter (Auto/Manual, 1/60-1/30,000 sec) Gain (Auto/Manual) |
| Video Output |
BNC x1 UTP x1 |
| Audio Output | N/A |
| Motion Detection | Not Specified by Manufacturer |
| Sync System | AC line lock, phase adjustable using remote control, V-Sync |
| Communication Port | RS-422, Coaxitron |
| Communication Protocol | Pelco P and Pelco D (accepts competitive control protocols with optional TXB translator boards) |
| Alarm I/O | Not Specified by Manufacturer |
| Construction |
Top Cap: Anodized cast aluminum Dome Drive: ABS plastic Bubble: Acrylic Cable Entry: RJ45-10 pigtail connector for video (UTP), power, and data (supplied) BNC connector for video (coaxial) |
| Power Requirements | 24VAC |
| Power Consumption | 1.6A |
| Operating Temperature | 32 - 122°F (0 - 50°C) |
| Diameter and Height | 6.2 x 5.1" (157 x 130mm) |
| Weight | 1.8 lbs (0.79kg) |
