RS485
Description
RS485 is a communication port. It can control the camera via back-end device when the information of RS485 is set in accordance with that of the back-end coding device.
Prerequisites
- Imaxcampro recorder with RS485 Port
Instructions
- NKB1000 RS485 Setup
- RS485 for Access Control
- Pelco & RS485
Common RS485 Settings
Device | Channel | PTZ Type: | Protocol | Address | Baud Rate | Data Bit | Stop Bit | Parity |
Imaxcampro SD59230IN-HC | 1 | Local | Pelco-D | 1 | 9600 | 8 | 1 | None |
Imaxcampro Analog PTZ | 1 | Local | Pelco-D | 1 | 2400 | 8 | 1 | None |
Hardware Setup
1. Connect the RS485 cable of the PTZ camera to the RS485 port on the Device. Ensure the match of A and B interfaces.
RS485 Port on Recorder, Wires connected to A and B
RS485 connection from PTZ, labeled for A (+) and B (-)
Wires connected from PTZ to recorder
2. Connect the video out cable of the PTZ camera to the video input port on the Device.
3. Turn on the PTZ camera.
Determine PTZ's Address, Baud, & Protocol
Method 1: Reboot and View OSD
1. Connect Analog or HD-CVI PTZ to Channel 1.
2. Bring up Channel 1 Live View
3. Power cycle PTZ.
4. Wait for PTZ to boot, and watch Channel 1 for PTZ Info.
Method 2: Check Manufacturer's Manual or Specifications
Configure ImaxcamproRecorder
[Expand]
SystemUI Old
[Expand]
SystemUI New
[Expand]

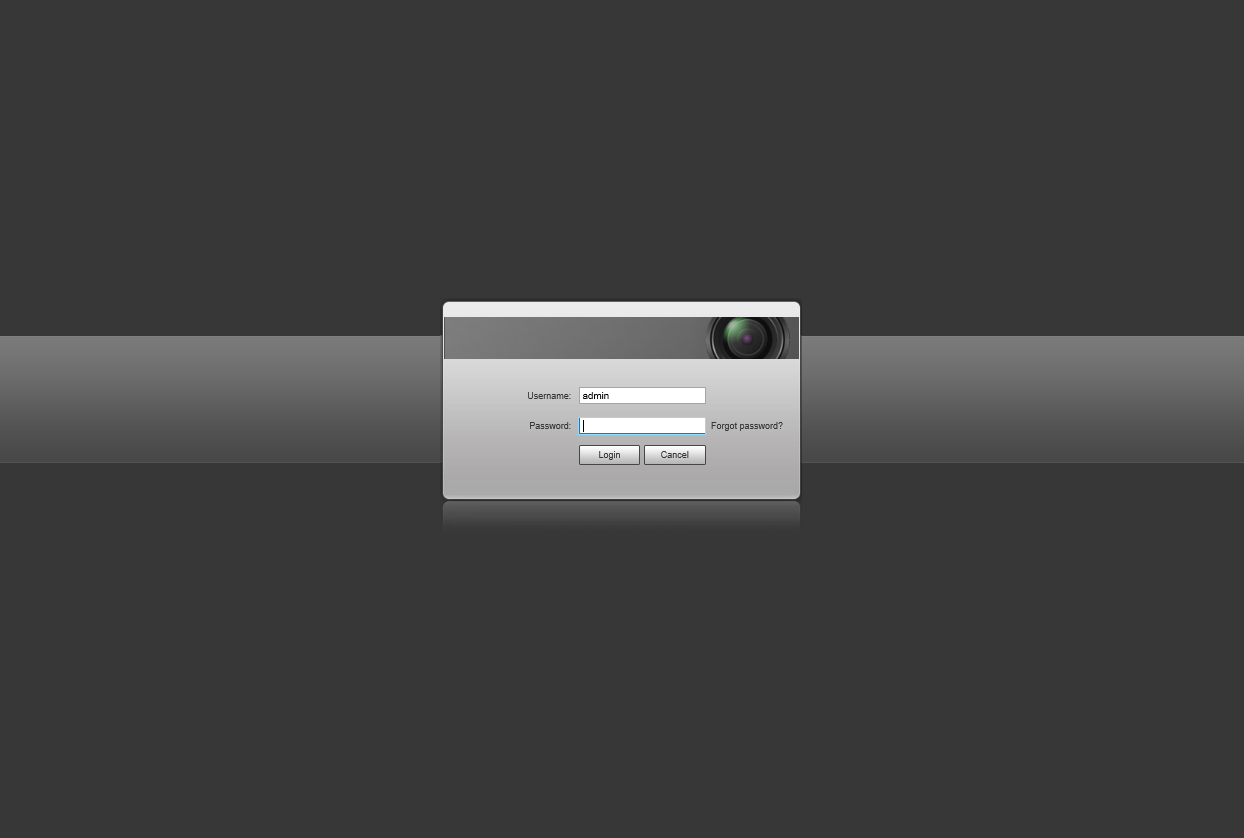

WebUI Old
[Expand]

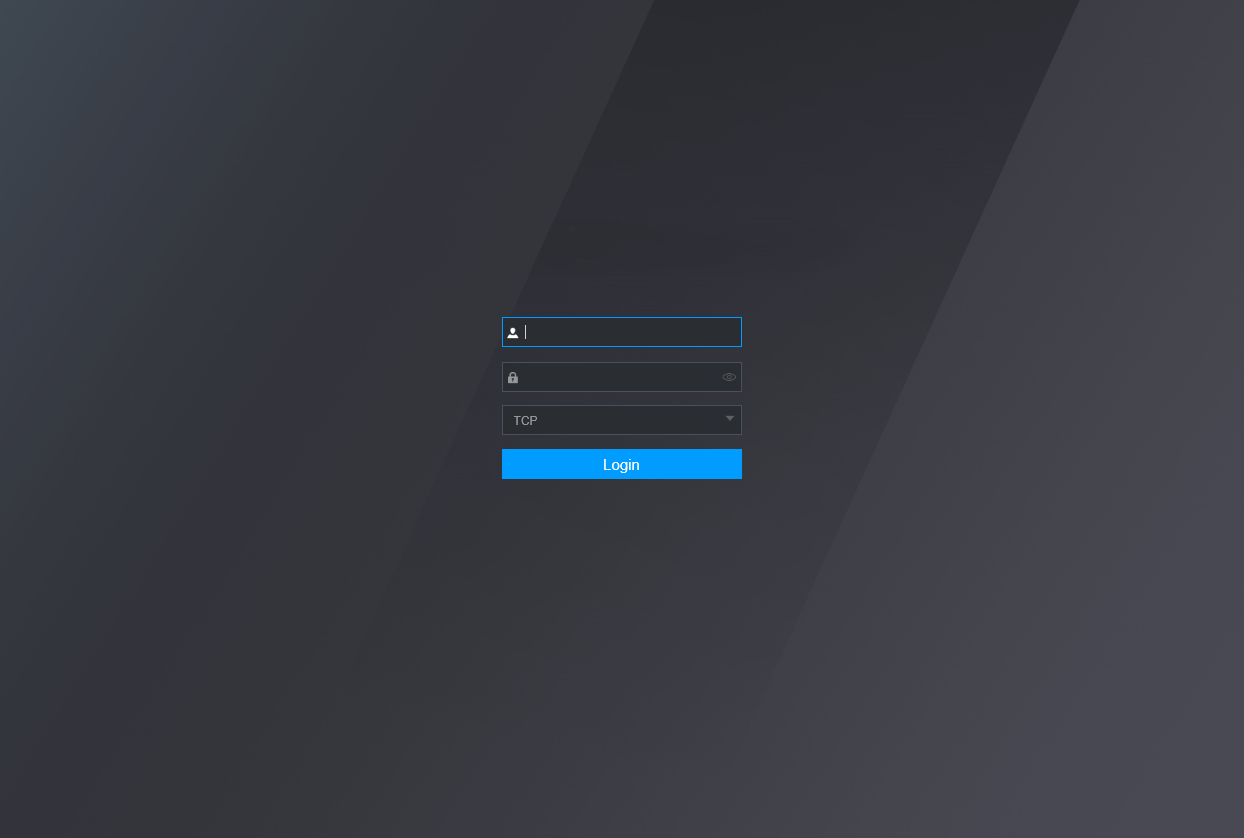

WebUI New
[Expand]
SmartPSS
