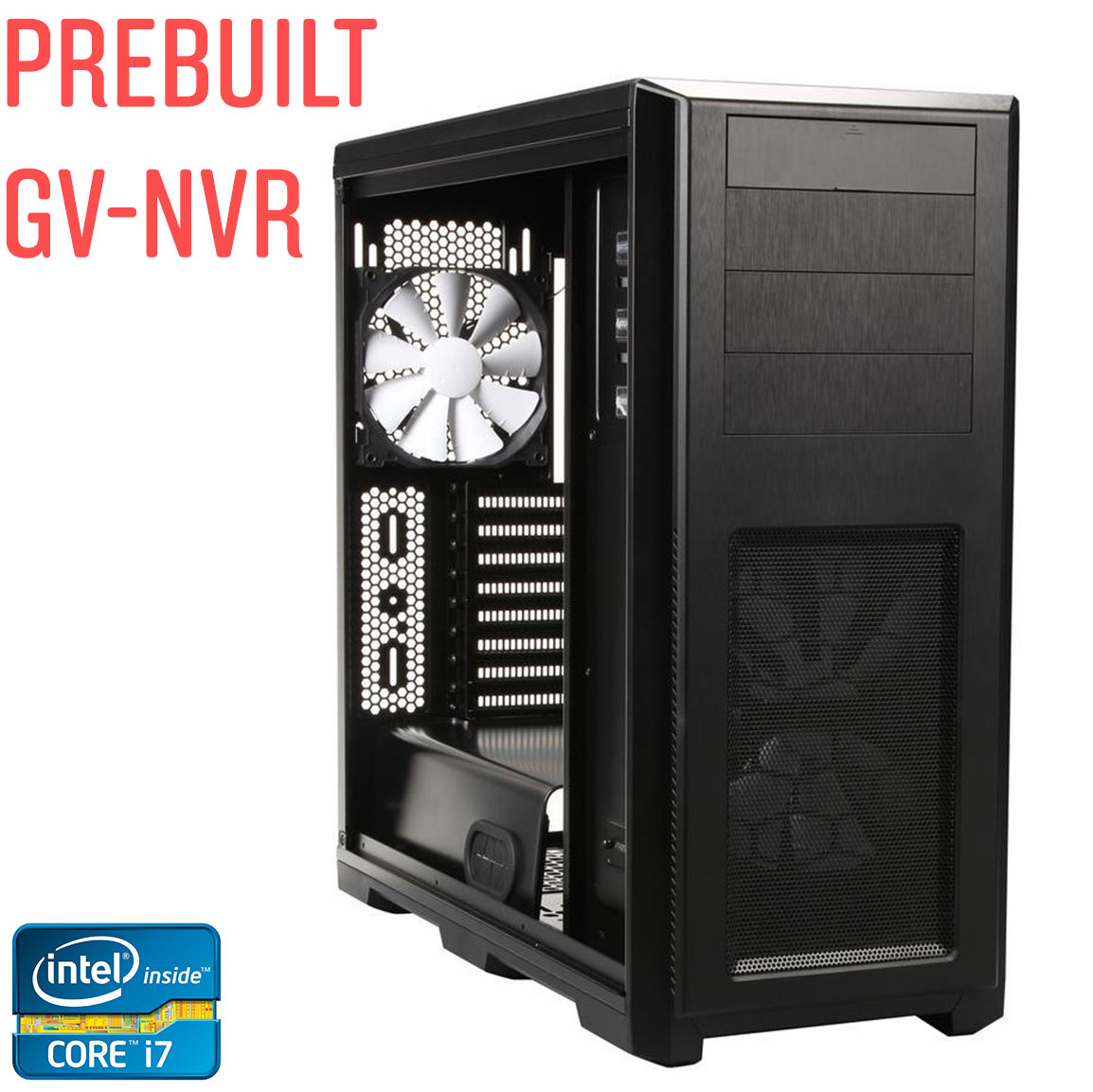

Pre-Built GV-NVR Supports 32 IP Cameras


Details

Weight 29.00 lbs
SKU GV-PB-NVR-32-CH
Manufacturer Geovision
Keywords: High Definition 1.3MP to 5 Megapixel: Supports 1 to 32 IP Megapixel Cameras NVR Network Video Recorder
Description: High Definition 1.3MP to 5 Megapixel: Supports 1 to 32 IP Megapixel Cameras NVR Network Video Recorder
Shipping Lead Time: Ships within 1 to 12 Hours
Recorder Type: NVR
List Price: $9,000.00
Sale Price: $6,999.00 (Save 22%)

Description









The Pre-Built GeoVision NVR is carefully planned and built to meet the specific needs to support smooth live view and playback for up to 32 IP cameras up to 8 MP each. Our pre-built systems come with all hardware and software pre-installed for a fast and easy set up. This System comes standard with Intel Core i7 (7th Gen), 8gb DDR4 2666Mhz Ram, 128gb OS SSD, and 1 TB subservience HDD.



GV-NVR Specs



Flawless Performance i7



Flawless Performance i7

NVR Specs

System Pre-Built 32 GV-NVR
CPU Intel Core i7-7700 3.6GHz
RAM 8GB DDR4 2666Mhz
HDD Slots 6x 3.5" Drive Bays (HDD)
3x 5.25" Drive Bays (DVD/HDD)
OS HDD 128GB SATA III SSD
Operating System Windows 7 Home (Included)
Windows 7 Professional (Optional)
Windows 10 Professional (Optional)
Power Supply 650w 80 Plus Bronze PSU
HDD 1TB Surveillance HDD (Included)
Add up to 5 more HDDs (Optional)
Video Card EVGA 2GB GPU (2 DVI)
Connectors 1x RJ-45 (Ethernet) (On Board)
4x USB 3.0 (On Board)
2x USB 2.0 (On Board)
PS/2 Keyboard (On Board)
PS/2 Mouse (On Board)
1x Front Stereo Port (On Board)
1x Mic Input Port (On Board)
1x Audio Input Port (On Board)
Case Specs Steel/platic ATX Full Tower
2x USB 3.0 2x USB 2.0 / Audio & Mic Port
1x Front Fan
1x Back Fan
Dimensions 21.06" x 9.25" x 21.65"
Weight Approx. 30 lbs

GeoVision Software

Video and Audio
Video Standard NTSC & Pal
Video Input 16 Channels (Analog)
32 Channels (IP)
(Max 32 Channels)
Video Input Level 1.0 VP-P (± 10%) Composite, 75Ω
Video Compression Format Hardware: H.265, H.264 & MJPEG
Software: Geo MP4, Geo H.264/H.265 & MJPEG
Display Rate 1920 x 1200, 1680 x 1050,
1600 x 1200, 1280 x 800,
1440 x 900, 1920 x 1080
and 1280 x 1024
Recording Rate Up to 8MP
Video Resolution Up to 8MP
Live View & Playback
Image Control Contrast / Brightness / Saturation / Hue
Recording Mode Round the Clock / Motion Detection / Sensor Detection /
Pre & Post Recording / Schedule Recording
Pre Recording 1~45 Minutes
Instant Playback 10 sec / 30 sec / 1 min / 5 min
Watermark Supported
Searching & Playback
Search Method Date / Time / Camera / Event Type
Backup Type DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R /
DVD-RW / CD-R / CD-RW
Remote Monitoring
Monitoring Enviroment Web Browser (Internet Explorer, Chrome, Firefox & Safari)
Mobile Device (Apple & Android Smartphones and Tablets)
Live View Max 32-Channel Multi Views
(up to 200 channels connection to GV-Tower System V2)
Recovery Windows Recovery from Internal OS HDD
System Monitoring & Recovery
Power Restoration Automatic Restart After Power Outage
Monitoring Two Independent Watchdogs
(Hardware Watchdog + Software Watchdog)
Network Type LAN, WAN, Internet
Software Language
Language Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German /
Greek / Hebrew / Hungarian/Indonesian / Italian / Japanese / Lithuanian /
Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian /
Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish /
Swedish / Thai / Traditional Chinese / Turkish
Software License
Free License 32 Channels from GV-IP Devices
Maximum License 32 Channels from Third-Party IP Devices
Increment of Each License 1 to 32 Third-Party IP Cameras in Increments of 2
Dongle Type External
