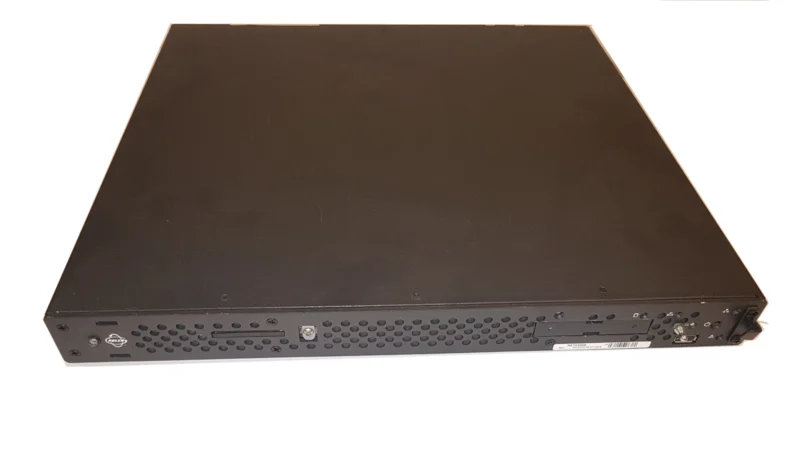

Pelco NET5300B Enduraâ„¢ Video Encoder Base Module

SKU: WECNET5300B
Pelco
SKU: WECNET5300B
    • 42% less
    Market price:$763.59 save $318.16
  • $445.43

OR

Description
The NET5308T is a high-performance, dual-stream, eight- or 16-input video encoding set of units.
Each set includes one NET5300B unit and either one or two NET5308T-EXP units. This product’s main function is to convert live analog video signals into dual MPEG-4 streams. It can process up to 30 high quality images per second per stream. In addition, the NET5308T uses motion adaptive deinterlacing technology to reduce jitter in 4CIF images.


FEATURES
• Up to 8 or 16 Video Inputs
• Two Simultaneous MPEG-4 Video Streams Per Input
• Up to 30 High Quality (4CIF) Images Per Second Per Stream
• Video, Audio, and Data Over IP Network
• Simultaneously View Video on a Computer User Interface, Console User Interface, and Video Decoder • Adaptive Deinterlacing Technology
• Eight or 16 Programmable Alarm Inputs (Supervised or Unsupervised), Four or Eight Relay Outputs
• Two Security Modes
• Video Loss Indicator
• PTZ Support Using Pelco P or Pelco D (RS-422) and Coaxitron (up-the-coax) Protocols
• Plug-and-Play Configuration • Fully Compatible with Pelco’s Integrated System Architecture
• System Diagnostics and Error Logging
• Full Over-the-Network Remote Control and Administration


Specifications

VIDEO/AUDIO
Video Standards NTSC/PAL/EIA/CCIR composite
Video Compression MPEG-4
Video Streams 2, simultaneous per input
Video Resolutions NTSC PAL 4CIF 704 x 480 704 x 576 2CIF 704 x 240 704 x 288 CIF 352 x 240 352 x 288
NETWORK
Interface 1 gigabit Ethernet RJ-45 ports (1000BaseT)
Security 2 modes: secure mode (device authentication) and unsecure mode

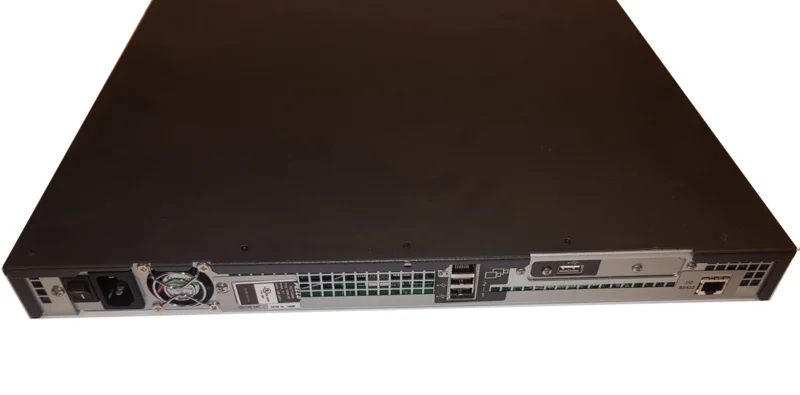

AUXILIARY INTERFACES
USB 2.0 3 high-speed USB 2.0 ports on rear of unit
Camera Control 1 RJ-45 connector; connects NET5300B to CM9760-CDU-T; Pelco D/Pelco P
FRONT PANEL INDICATORS/FUNCTIONS
Power Blue CPU
Activity Yellow
Network Activity Green
Network Status Green, amber, red
Unit Status Green, amber, red
Power Button On, off (soft), off (hard)
Configuration/Reset Button Configuration, reboot, reset, cancel
POWER
Power Input 100-240 VAC, 50/60 Hz, 0.7 A, autoranging
Cable Type 1 USA (117 VAC), 1 European (220 VAC), 1 UK (250 VAC) All, 3 prongs, molded connector, 6 ft (1.8 m) cord
Power Consumption (maximum) 40 W, 137 BTU/H
Uninterruptible Power Supply Compatible with APC Smart-UPS;managed through the Endura product architecture (UPS


    • SKU
      WECNET5300B
    • Weight
      15 lbs
  • Manufacturer
    Pelco
  • Shipping Lead Time
    Discontinued
