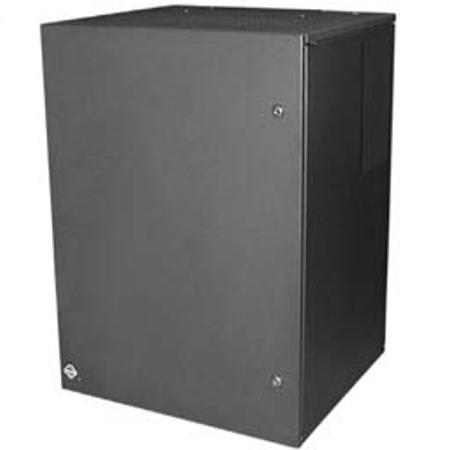

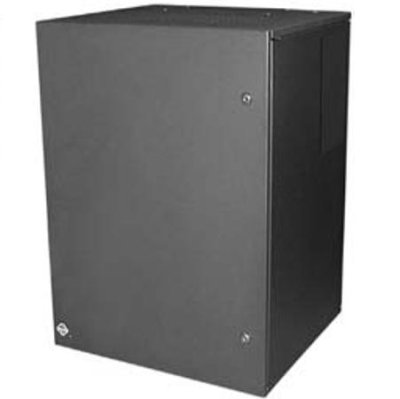

PELCO LB3000PS Wall Mount Lock Box for VCR or Multiplexer
SKU: LB3000PS

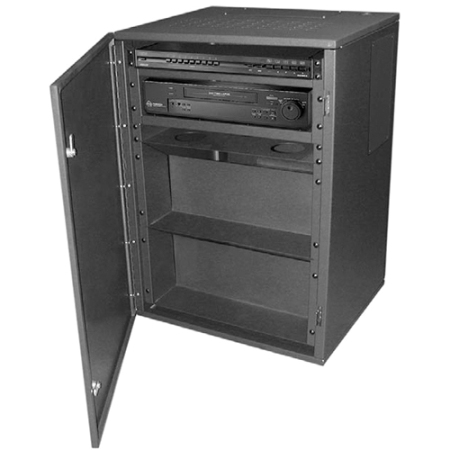

The shelved interior of the Pelco LB3000PS Lock Box offers storage and security for a VCR, multiplexer, up to 32 VCR tapes and printed material such as user manuals. The built in power supply can provide up to 16 cameras with 24 VAC power.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
PELCO LB3000PS Wall Mount Lock Box for VCR or Multiplexer
The shelved interior of the Pelco LB3000PS Lock Box offers storage and security for a VCR, multiplexer, up to 32 VCR tapes and printed material such as user manuals. The built in power supply can provide up to 16 cameras with 24 VAC power.
The charcoal gray powder-coat steel and aluminum box has 2 keyed locks and is wall mountable. A mounting plate is attached to the wall over a standard outlet electrical box, and then the lock box is quickly fastened to the mounting plate. Cables for video and power cables are brought into the lock box through a hole in the wall.
The top of the box is ideal for accommodating a video or computer monitor. Weight capacity of the LB3000PS is 65 lb (29.4 kg).
Features :
- An integral master power supply is provided with the LB3000PS to provide 24 VAC power to up to 16 cameras that are connected to the multiplexer.
- Holds VCR, multiplexer and tapes
- Monitor can be placed on top of lock box
- Vented top and bottom panels
- Wall mount; wiring access through wall
- Tamper-resistant top and side panel access for connections
Specifications :
| Electrical | Input Voltage: 120 or 240 VAC, 50/60 Hz Output Voltage: 24/28 VAC Outputs: 16 Supply Current: 10 A Maximum Current per Channel: 3 A Required Input Current: 120 VAC 2.20 A, 240 VAC 1.15 A Surge Protection: Yes Output Fuse Rating: 3A Output Connectors: Screw-type barrier strips Output Wire Size: 12-22 gauge, solid or stranded wire |
| Maximum Load | 65 lb (29.4 kg) |
| Mounting | 8x 3/8-inch mounting holes |
| Cable Entry | Opening in back of lock box: 11.0" W x 9.5" H (27.9 x 24.1 cm) |
| Environment | Indoor |
| Dimensions (DxWxH) | 19 x 21 x 29" (48.2 x 53.3 x 73.6 cm) |
| Construction | Aluminum, steel |
| Finish | Charcoal gray polyester powder coat |
| Weight | 65 lb (29.4 kg) |
