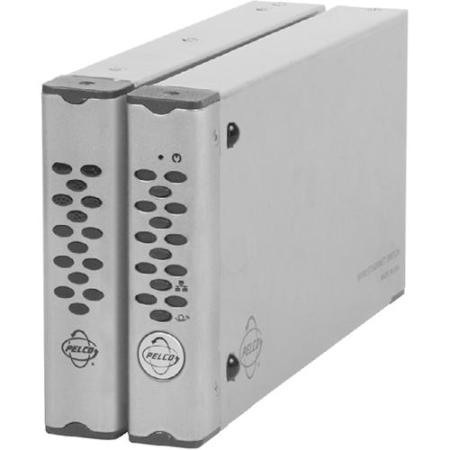

Pelco FX82051MSTR-2 Multimode Unmanaged Ethernet Switch, 2 Fiber, ST Connector
SKU: FX82051MSTR-2
Features :
- Unmanaged Ethernet Switch for the Transport of Bidirectional Ethernet Data:
- Five 10BASE-T/100BASE-TX Ports
- One 100BASE-FX Port That Accepts 2 Fibers
- Compatibility with Third-Party 100BASE-FX Ethernet Equipment (Multimode ST and SC Models Only)
- Designed for Point-to-Point Applications
- User-Selectable Networking Functions for Each 10BASE-T/100BASE-TX Port:
- Autonegotiation Between 10 Mbps and 100 Mbps Data Rates and Between Full-Duplex and Half-Duplex Modes
- 10 Mbps or 100 Mbps Selectable
- Full-Duplex or Half-Duplex Mode Selectable
- Enabling/Disabling of Flow Control
- Auto MDI/MDI-X (Medium Dependent Interface/Medium Dependent Interface Crossover) Operation
- Compliant with IEEE 802.3, 802.3u, and 802.3x Standards
- Multimode Fiber Support for Distances up to 6 km
- Laser Diode for Transmission of Optical Signals
- Environmentally Hardened
- Designed to Meet NEMA TS 2 and Caltrans Traffic Signal Control Equipment Environmental Standards
- No Performance Adjustments Required
- 12 VDC or 24 VAC Power Supply
- Stand-Alone and Rack-Mountable Modular Design
- LED Indicators for Monitoring of Optic Signal/Laser Status, 100BASE-FX Port Status Including Far End Fault Indication (FEFI), 10BASE-T/100BASE-TX Port Status, and Operating Power
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Pelco FX82051MSTR-2 Multimode Unmanaged Ethernet Switch, 2 Fiber, ST Connector
The Pelco FX82051 unmanaged Ethernet switch provides five 10Base-T/100Base-TX ports and one 100Base-FX fiber port for the transport of bidirectional Ethernet data. Two fibers are required to transport bidirectional data over the fiber port. Available in multimode and single-mode versions, the FX82051 switch is designed for point-to-point applications.
Autonegotiation
The fiber port on the FX82051 switch is forced to full-duplex 100 Mbps operation. Networking functions for each of the five 10Base-T/100Base-TX ports (RJ-45 twisted-pair copper ports) are user-selectable by means of a rotary switch. Autonegotiation allows a 10Base-T/100Base-TX port to automatically negotiate between 10 Mbps and 100 Mbps data rates and between full-duplex and half-duplex modes. If autonegotiation is not desired, a port can be forced to specific modes of operation: 10 Mbps or 100 Mbps data rate, half-duplex or full-duplex mode, and the enabling/disabling of flow control. The auto MDI/MDI-X feature allows each RJ-45 port to connect to either a straight-through or crossover RJ-45 cable.
Rack Mountable
Modular in design, the FX82051 unit can be rack mounted or can be used as a stand-alone module. Rack mounting is accomplished using the RK5000 Series rack mount chassis. As a stand-alone module, the unit can be placed on a desktop or can be mounted to a wall.
Features :
Specifications :
The Pelco FX82051 unmanaged Ethernet switch provides five 10Base-T/100Base-TX ports and one 100Base-FX fiber port for the transport of bidirectional Ethernet data. Two fibers are required to transport bidirectional data over the fiber port. Available in multimode and single-mode versions, the FX82051 switch is designed for point-to-point applications.
Autonegotiation
The fiber port on the FX82051 switch is forced to full-duplex 100 Mbps operation. Networking functions for each of the five 10Base-T/100Base-TX ports (RJ-45 twisted-pair copper ports) are user-selectable by means of a rotary switch. Autonegotiation allows a 10Base-T/100Base-TX port to automatically negotiate between 10 Mbps and 100 Mbps data rates and between full-duplex and half-duplex modes. If autonegotiation is not desired, a port can be forced to specific modes of operation: 10 Mbps or 100 Mbps data rate, half-duplex or full-duplex mode, and the enabling/disabling of flow control. The auto MDI/MDI-X feature allows each RJ-45 port to connect to either a straight-through or crossover RJ-45 cable.
Rack Mountable
Modular in design, the FX82051 unit can be rack mounted or can be used as a stand-alone module. Rack mounting is accomplished using the RK5000 Series rack mount chassis. As a stand-alone module, the unit can be placed on a desktop or can be mounted to a wall.
Features :
- Unmanaged Ethernet Switch for the Transport of Bidirectional Ethernet Data:
- Five 10BASE-T/100BASE-TX Ports
- One 100BASE-FX Port That Accepts 2 Fibers
- Compatibility with Third-Party 100BASE-FX Ethernet Equipment (Multimode ST and SC Models Only)
- Designed for Point-to-Point Applications
- User-Selectable Networking Functions for Each 10BASE-T/100BASE-TX Port:
- Autonegotiation Between 10 Mbps and 100 Mbps Data Rates and Between Full-Duplex and Half-Duplex Modes
- 10 Mbps or 100 Mbps Selectable
- Full-Duplex or Half-Duplex Mode Selectable
- Enabling/Disabling of Flow Control
- Auto MDI/MDI-X (Medium Dependent Interface/Medium Dependent Interface Crossover) Operation
- Compliant with IEEE 802.3, 802.3u, and 802.3x Standards
- Multimode Fiber Support for Distances up to 6 km
- Laser Diode for Transmission of Optical Signals
- Environmentally Hardened
- Designed to Meet NEMA TS 2 and Caltrans Traffic Signal Control Equipment Environmental Standards
- No Performance Adjustments Required
- 12 VDC or 24 VAC Power Supply
- Stand-Alone and Rack-Mountable Modular Design
- LED Indicators for Monitoring of Optic Signal/Laser Status, 100BASE-FX Port Status Including Far End Fault Indication (FEFI), 10BASE-T/100BASE-TX Port Status, and Operating Power
Specifications :
| Channels | Switch Type: Unmanaged Layer 2 |
| Modulation | Switching Method: Store and forward |
| Data Rate | 10/100 Mbps |
| Compliance | IEEE 802.3, 802.u, 802.3x |
| Interface | Auto MDI/MDI-X |
| Operating Modes | Half-duplex or full-duplex |
| MAC Address Table Size | 1,024 MAC address entries with automatic learning and aging |
| Quality of Service | IEEE 802.1p priority, tag-based, 4 queues per port, weighted fair queuing scheduling |
| Maximum Frame Size |
Untagged Ethernet frames up to 1,518 bytes Tagged Ethernet frames up to 1,522 bytes |
| Wavelength | 1310 nm |
| Optical Power Budget | 26dB |
| Maximum Transmission Distance | 3.7 Mile (6km) |
| Connectors |
5x RJ-45, 10Base-T/100Base-TX 1x ST dual-fiber connector |
| Power Requirements | 12VDC or 24VAC (includes 12VDC adapter) |
| Power Consumption | 500mA |
| Operating Temperature | -40 ~ 167°F (-40 ~ +75°C) |
| Dimensions (WxHxD) | 2.3 x 4.8 x 8.8" (57 x 122 x 222mm) |
| Weight | 4 lbs (1.8kg) |
