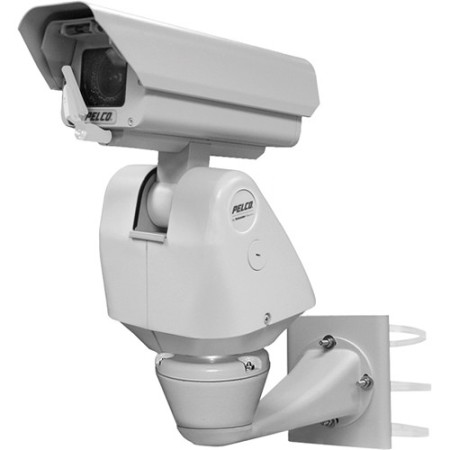

Pelco ES4036-5W Esprit SE 36x Wall PTZ System, 120/230VAC, NTSC

SKU: ES4036-5W
Pelco
SKU: ES4036-5W

Information

  • ESPRIT IOP 36X HIGH RES NTSC
  • Esprit Iop 36X High Res Ntsc
  • Analog Box Cameras
    Analog Cameras
  • 999999407882

Overview

For a wide range of applications, the ES40/ES41 Series offers a high resolution, color/black-white camera (540 TVL) with an infrared cut filter, 432X zoom (36X optical, 12X digital), electronic image stabilization, and wide dynamic range. A powder-coated, aluminum construction makes the ES40/ES41 Series ideal for either indoor or outdoor applications. The system has an absolute operating temperature range of --45 degree to 50 degree C (--50 degree to 122 degree F). Within two hours after power-up, the entire unit can de-ice and be operational from a temperature of --25 degree C (--13 degree F).

  • Receiver, Pan/Tilt, and Enclosure with Integrated Optics Package (IOP)
  • Day/Night, 540 TVL, Autofocus, 128X Wide Dynamic Range (WDR), Motion Detection, Image Enhancement, and Electronic Image Stabilization
  • Preset Positioning Accuracy +/- 0.1, Variable Speed Pan: 0.1 degree to 100 degree /Sec with Proportional Pan
  • Window Blanking, Multishaped
  • Internal Scheduling Clock
  • On-Screen Compass, Tilt, and Zoom Display
  • Autotracking
  • Tilt Range of +36 degree to --85 degree from Horizontal
  • Password Protection

*Includes Esprit EWM wall mount. Optional mounting adapters for corner, pole, and parapet applications are available.

    • 45% less
    Market price:$5065.38 save $2297.13
  • $2768.25

OR

Information

  • ESPRIT IOP 36X HIGH RES NTSC
  • Esprit Iop 36X High Res Ntsc
  • Analog Box Cameras
    Analog Cameras
  • 999999407882

Overview

For a wide range of applications, the ES40/ES41 Series offers a high resolution, color/black-white camera (540 TVL) with an infrared cut filter, 432X zoom (36X optical, 12X digital), electronic image stabilization, and wide dynamic range. A powder-coated, aluminum construction makes the ES40/ES41 Series ideal for either indoor or outdoor applications. The system has an absolute operating temperature range of --45 degree to 50 degree C (--50 degree to 122 degree F). Within two hours after power-up, the entire unit can de-ice and be operational from a temperature of --25 degree C (--13 degree F).

  • Receiver, Pan/Tilt, and Enclosure with Integrated Optics Package (IOP)
  • Day/Night, 540 TVL, Autofocus, 128X Wide Dynamic Range (WDR), Motion Detection, Image Enhancement, and Electronic Image Stabilization
  • Preset Positioning Accuracy +/- 0.1, Variable Speed Pan: 0.1 degree to 100 degree /Sec with Proportional Pan
  • Window Blanking, Multishaped
  • Internal Scheduling Clock
  • On-Screen Compass, Tilt, and Zoom Display
  • Autotracking
  • Tilt Range of +36 degree to --85 degree from Horizontal
  • Password Protection

*Includes Esprit EWM wall mount. Optional mounting adapters for corner, pole, and parapet applications are available.

Specifications

Camera
Signal FormatNTSC
Scanning SystemProgressive or 2:1 interlace
Image Sensor1/4" CCD
Effective PixelsH x V: 768 x 494
Horizontal Resolution>540 TVL
Lensf/1.4 (focal length, 3.3 to 119 mm optical)
Zoom36x optical, 12x digital
Zoom SpeedOptical Range: 3.2 / 4.6 / 6.6 seconds
Angle of ViewHorizontal: 57.2° at 3.3 mm wide zoom; 1.7° at 119 mm telephoto zoom
FocusAutomatic with manual override
SensitivityMaximum: @ 35 IRE 0.02 lux at 1/2 sec shutter
0.55 lux at 1/60 sec shutter (color)
0.018 lux at 1/2 sec shutter (color)
0.00018 lux at 1/2 sec shutter (B&W)
Sync SystemAC line lock, phase adjustable using remote control, V-sync
White BalanceAutomatic with manual override
Shutter SpeedAutomatic Manual: 1/2 to 1/30,000
Iris ControlAutomatic with manual override
Gain ControlAutomatic / off
Video Output1 Vpp, 75 Ω
Signal-to-Noise RatioVideo: >50 dB
Image StabilizationElectronic: Integrated
Wide Dynamic Range128x
Electrical
Input Voltage120/230 VAC
Input Voltage Range±10%
Power ConsumptionMaximum 70 VA per system
HeaterThermostatically controlled (heater and defroster)
ConnectionsElectrical: 2 power source connections made at mount location with wire splices and 1 ground wire splice
1 BNC receptacle and 4 wire splices at mount location for RS-422 Pelco D and Pelco P protocols
2 wire splices for open collector auxiliary output
AUX 2Open collector output with 2-second activation 1
DistanceVideo Coaxial Cable Wiring RG59/U: 750' (229 m)
RG6/U: 1,000' (305 m)
RG11/U: 1,500' (457 m) 2
Mechanical
Pan Movement360° continuous pan rotation
Vertical TiltUnobstructed +36 to -85°
Variable SpeedPan: 0.1 to 40°/sec variable-speed operation, 100°/sec turbo
Tilt: 0.1 to 30°/sec variable-speed operation
Preset SpeedsPan: 100°/sec
Tilt: 30°/sec
Camera MountingIntegrated camera sled assembly
Latches1 link-lock, number 3 stainless-steel latch; can be secured with padlock (sold separately)
General
ConstructionDie-cast, extruded and sheet aluminum, stainless steel hardware
Viewing Window0.23" (5.84 mm) thick, optically clear, polycarbonate with proprietary impact-resistant UV rated coating
Operating Temperature-50° to 122°F (-45° to 50°C) for sustained system operation or 140°F (60°C) absolute maximum; within 2 hours after power-up, the entire unit can de-ice and be operational from a temperature of -13°F (-25°C)
Operating EnvironmentWill remain operational in 145 kph (90 mph) wind conditions; withstands 209 kph (130 mph)
CertificationsCE, Class B, FCC, Class B, , C-Tick, meets NEMA Type 4X and IP66 standards, U.S. Patent 340,940 and 5,224,675
Dimensions (L x W x H)13.30 x 7.70 x 17.50" (337.82 x 195.58 x 444.5 mm)
Weight22.0 lb (9.9 kg)



    • SKU
      ES4036-5W
    • Weight
      22 lbs
  • Manufacturer
    Pelco
  • UPC
    999999407882
