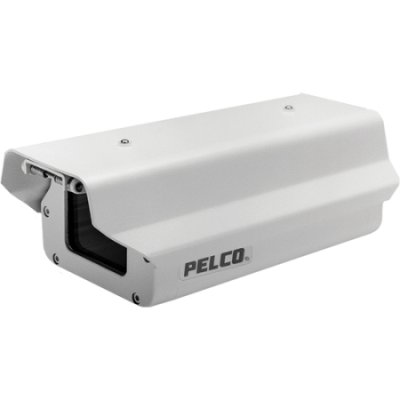

PELCO EH3508MT EH3508 HOUSING
SKU: EH3508MT
PELCO EH3508MT EH3508 HOUSING
The Pelco EH3508-MT 8" Enclosure is designed for both indoor and outdoor applications. The unit, one of the smallest outdoor enclosures from Pelco, is suitable for small cameras and fixed mount applications. The die cast and extruded aluminum construction make the enclosure sustainable and recyclable.
The enclosure can accommodate fixed focal length lenses or motorized zoom lenses, with or without auto-iris. For applications that require additional security, this small outdoor enclosure features a rear link-lock latch that can be used with a padlock of suitable size, a front hinged lid, and two flexible cable glands at the bottom.
Features:
The Pelco EH3508-MT 8" Enclosure is designed for both indoor and outdoor applications. The unit, one of the smallest outdoor enclosures from Pelco, is suitable for small cameras and fixed mount applications. The die cast and extruded aluminum construction make the enclosure sustainable and recyclable.
The enclosure can accommodate fixed focal length lenses or motorized zoom lenses, with or without auto-iris. For applications that require additional security, this small outdoor enclosure features a rear link-lock latch that can be used with a padlock of suitable size, a front hinged lid, and two flexible cable glands at the bottom.
Features:
- Designed for indoor/outdoor applications
- Smallest Pelco outdoor enclosure
- For use with small cameras and fixed mount applications
- Construction: Extruded and die-cast aluminum
- Forward-opening hinged lid
- Rear link-lock latch
- Easy access for servicing and installation
- Cable entry glands and mounting holes on bottom of enclosure
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
PELCO EH3508MT EH3508 HOUSING
The Pelco EH3508-MT 8" Enclosure is designed for both indoor and outdoor applications. The unit, one of the smallest outdoor enclosures from Pelco, is suitable for small cameras and fixed mount applications. The die cast and extruded aluminum construction make the enclosure sustainable and recyclable.
The enclosure can accommodate fixed focal length lenses or motorized zoom lenses, with or without auto-iris. For applications that require additional security, this small outdoor enclosure features a rear link-lock latch that can be used with a padlock of suitable size, a front hinged lid, and two flexible cable glands at the bottom.
Features:
Specifications:
The Pelco EH3508-MT 8" Enclosure is designed for both indoor and outdoor applications. The unit, one of the smallest outdoor enclosures from Pelco, is suitable for small cameras and fixed mount applications. The die cast and extruded aluminum construction make the enclosure sustainable and recyclable.
The enclosure can accommodate fixed focal length lenses or motorized zoom lenses, with or without auto-iris. For applications that require additional security, this small outdoor enclosure features a rear link-lock latch that can be used with a padlock of suitable size, a front hinged lid, and two flexible cable glands at the bottom.
Features:
- Designed for indoor/outdoor applications
- Smallest Pelco outdoor enclosure
- For use with small cameras and fixed mount applications
- Construction: Extruded and die-cast aluminum
- Forward-opening hinged lid
- Rear link-lock latch
- Easy access for servicing and installation
- Cable entry glands and mounting holes on bottom of enclosure
Specifications:
| Mount Type |
Pedestal: EM1009U / EM1015U Wall: EM1450 / EM2400 (indoor) / EM1900U Pipe/Pole: EM1109 / EM2000 / EM2200 |
| Compatible Cameras | Fixed CCTV camera |
| Maximum Camera/Lens Size | WxHxD: 2.9 x 3 x 6.8" (7.3 x 7.6 x 17.3cm) |
| Clear or Tinted | Clear |
| Construction |
Material: Extruded and die-cast aluminum with gray polyester powder coat Viewing Window: 0.187" (4.75 mm) thick Lexan Camera Mounting: Multiple holes on adjustable camera sled; camera sled mounts in threaded strip for easier removal and can be inverted for additional camera elevation Cable Entry: Two PG13.5 compression glands on bottom; maximum cable diameter 0.47" (1.19 cm) |
| Heater/Blower | No |
| Enclosure Rating | Meets NEMA Type 4 standards |
| Operating Temperature | -10 ~ 120°F (-23 ~ +49°C) |
| Power Requirements | N/A |
| Power Consumption | N/A |
| Dimensions (WxHxD) | 5.1 3.9 x 10.8" (13.1 x 9.9 x 27.3cm) |
| Weight | 2.7 lbs (1.2kg) |
