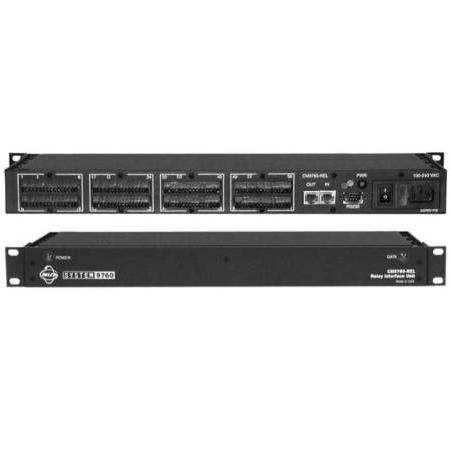

Pelco CM9760-REL Matrix Relay Interface Unit
SKU: CM9760-REL
The Pelco CM9760-REL relay interface unit connects directly to a 9760 matrix system, providing up to 64 SPST dry contact switching outputs for manual or automatic control of peripheral equipment. This unit connects to any RS-422 COM port on the rear of the CM9700-CC1.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Pelco CM9760-REL Matrix Relay Interface Unit
The Pelco CM9760-REL relay interface unit connects directly to a 9760 matrix system, providing up to 64 SPST dry contact switching outputs for manual or automatic control of peripheral equipment. This unit connects to any RS-422 COM port on the rear of the CM9700-CC1.
64 Contact Outputs
Each unit provides up to 64 single-pole, single-throw (SPST) contact outputs for operating different peripheral equipment.
Configurable Contacts
Relay output contacts can be configured for normally open (factory default) or normally closed operation.
Integrated Memory Function
A memory feature allows relay groups to retain or hold their contact position in the event of a power failure or front panel reset.
Expandable to Multiple Units
Multiple units can be daisy-chained to extend the number of relay contact outputs controlled from a single port on the CC1 (more than 5,000 relay outputs can be configured).
Long Distance Control
The relay unit can be remotely placed up to 4,000' (1,219 m) from the controller (RS-422 operation).
Features :
Specifications :
The Pelco CM9760-REL relay interface unit connects directly to a 9760 matrix system, providing up to 64 SPST dry contact switching outputs for manual or automatic control of peripheral equipment. This unit connects to any RS-422 COM port on the rear of the CM9700-CC1.
64 Contact Outputs
Each unit provides up to 64 single-pole, single-throw (SPST) contact outputs for operating different peripheral equipment.
Configurable Contacts
Relay output contacts can be configured for normally open (factory default) or normally closed operation.
Integrated Memory Function
A memory feature allows relay groups to retain or hold their contact position in the event of a power failure or front panel reset.
Expandable to Multiple Units
Multiple units can be daisy-chained to extend the number of relay contact outputs controlled from a single port on the CC1 (more than 5,000 relay outputs can be configured).
Long Distance Control
The relay unit can be remotely placed up to 4,000' (1,219 m) from the controller (RS-422 operation).
Features :
- Each Unit Provides Up to 64 Single-Pole, Single-Throw (SPST) Contact Outputs for Operating Different
- Peripheral Equipment
- Relay Output Contacts Can Be Configured for Normally Open (Factory Default) or Normally Closed Operation
- Memory Feature Allows Relay Groups to Retain or Hold Their Contact Position in the Event of a Power
- Failure or Front Panel Reset
- Multiple Units Can Be Daisy-Chained to Extend the Number of Relay Contact Outputs Controlled from a Single
- Port on the CC1 (Over 5,000 Relay Outputs Can Be Configured)
- The Relay Unit Can Be Remotely Placed Up to 4,000 Feet (1,219 meters) from the Controller (RS-422 Operation)
Specifications :
| Control Ports |
REL Input: 4x dual-header, 32-input connectors with mating plugs RS-422: 2x RJ45 RS-232: 1x DB9 connector (factory use only) Relay Out: 1x 3-pin header with mating plug |
| Power Requirements | 100-230VAC |
| Power Consumption | 30VA (5W active) |
| Operating Temperature | 32 - 122°F (0 - 50°C) |
| Dimensions (WxHxD) |
(without rack ears) 17.4 x 1.8 x 8.2" (442 x 45 x 207mm) |
| Weight | 8 lbs (3.6kg) |
