Resideo 943WG-WH Honeywell Home 943WG-WH Mini Magnetic Contact with 12" Leads, 1" Gap, White (Replaces PR20443)
SKU: 943
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Product Overview

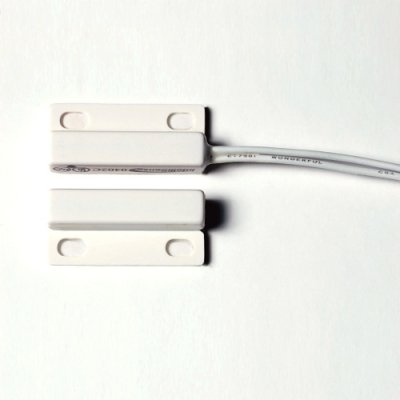

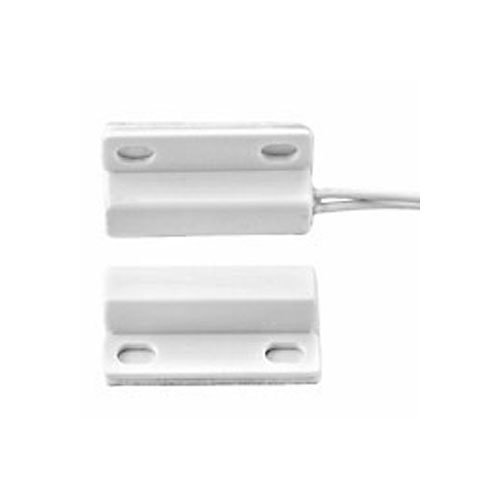

The HoneywellHome 943WG is a miniature-sized magnetic contact with wire leads. The 943WG is a surface-mounted contact that comes with two pieces. The contact has two wire leads and a built-in reed switch and should be mounted on the door or window frame. The magnet, identical in size, closes the circuit when next to the contact, and should be mounted on the door or window.
The Honeywell Home 943WG comes with self-adhesive strips for easy mounting and is also equipped with cutouts for mounting with screws. The two 12” lead wires should be connected to your hardwired alarm control panel. You can connect multiple 943WG contacts on one circuit or zone of your security system. When mounting, keep in mind that the maximum standard gap between the contact and magnet of the 943WG when the door or window is closed should be just 1”.
- Self-Adhesive strips for easy mounting
- Equipped with cutouts for mounting with screws
- Hardwired Alarm Control Panel
- Small surface mount door
Name: Resideo 943WG-WH Honeywell Home 943WG-WH Mini Magnetic Contact with 12" Leads, 1" Gap, White (Replaces PR20443)
Category: Resideo, Intrusion, Alarm Contacts, Magnetic Contacts, WEC Pro Rewards
UPC Code: 781410776180
Country of Origin: China. Country of origin is subject to change.
| Specifications | Details |
|---|---|
| Brand Name | Resideo |
| Manufacturer | Resideo |
| Manufacturer Part Number | 943WG-WH |
| Packaged Quantity | 1 |
| Product Model | 943 |
| Product Name | Mini Magnetic Contact |
| Product Type | Magnetic Contact |
| Connectivity Technology | Wired |
| Contact Form | Form A |
| Contact Type | Normally Closed (N.C.) |
| Switch Type | Reed Switch |
| Standard Gap | 1" |
| Mount Type | Surface Mount |
| Installation Type | Commercial |
| Application/Usage | Security System Sensors |
| Color | White |
| Cable Length | 12" |
| Technical Information | Details |
|---|---|
| Input Voltage | 30V DC |
| Input Current | 300mA |
| Power Source | DC Adapter |
| Minimum Operating Temp. | -40°F |
| Height | 0.25" |
| Width | 0.5" |
| Length | 1.1" |
| Country of Origin | China (CN) |
| Features | Self Adhesive |
943WG-WH_User_Manual.pdf786.7 kB
