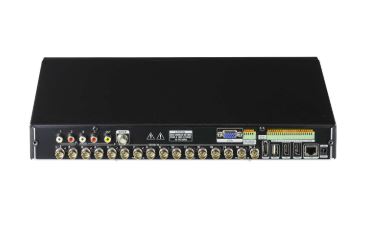

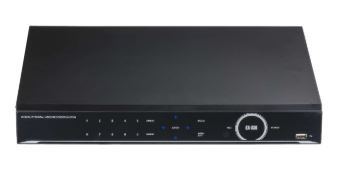

MAGIC QN Series 16CH DVR System
SKU: WEC-UVST-MAGIC-QN16
SKU: WEC-UVST-MAGIC-QN16- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
FEATURES
- Full GUI with alpha blending
- PLUS⁺: 16 Coax + 16 IP
- Individual setting of resolution, frame rates and picture quality
- Instant Replay, Digital Zoom, Mouse Control
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 576 area setting
- PTZ control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi User Authority upto 8 users, 22 languages with full graphic
- Deinterlacer upon live and playback
- Relay alarm output, Individual Network port setting
- Auto Deletion
- Interactive setup via network
- POS Interface, Mirroring
- Dual CODEC Engine for independent video transmission
SPECIFICATIONS
| Others | |
|---|---|
| NETWORK | |
| PLAYBACK | |
| Dual Recording | |
| Main Recording | |
| DISPLAY | |
| System | |
| IP | |
| VIDEO | |
| Camera input | 16 Coax + 16 IP (Plus+) |
| Individual HD/Analog selec. | Analog, HD-SDI, EX-SDI, AHD, TVI, CVI, IP |
| Available source | HD-SDI/EX-SDI (1080p25,30/ 4MP@25,30)/TVI/AHD/CVI (720p25,30/ 1080p25,30/ 3MP@18 ~ 30/ 4MP@12 ~ 30/ 5MP@20/ 8MP@15)/ Composite/ 960H/ Mixed |
| Output | 2 HDMI (Main Display or Programmable HD Spot), 1 VGA (Main Display or Programmable HD Spot), 1 Composite(Programmable SPOT) |
| CH | Up to 16 |
| Resolution | ~ 8MP@30 |
| Spec. | ONVIF 2.3, RTSP, H.264, H.265, Dual stream use gigabit ethernet hub |
| Restriction | Cannot setup Private ZONE, Cannot support Timestamp |
| Audio input | 4 RCA |
| Audio output | 1 RCA |
| Sensor in | 16 (NC, NO selectable) |
| Alarm out | 1 Relay |
| Speed | Real Time |
| Resolution(pixel) | 1280 × 1024, 1280 × 720, 1920 × 1080, 2560 × 1440, 3840 × 2160 |
| Split screen | 1, 4, 6, 8, 9, 13, 16 (Plus+) |
| CODEC | H.265 |
| Resolution (pixel) | 8MP: 8MP, 1080p / 5MP: 5MP, 720p / 4MP: 4MP, 720p / 3MP: 3MP, 720p 1080p: 1080p, 720p / 720p: 720p, 960 × 540 / 960H, Composite: 960H, D1 |
| Picture quality | 4 steps (Super, High, Medium, Low) |
| Speed | 240fps@4MP |
| CODEC | H.265 |
| Resolution (pixel) | 640 × 352 |
| Display | 1, 4, 6, 8, 9, 13, 16 (Plus+) |
| Search mode | Calendar, Event , POS, Panorama, Thumbnail |
| Fast/Slow speed | Normal, REW & FF (recorded speed × 2, × 4, × 8, × 16,x32,x64,x1/2,x1/4), Frame to frame, Pause |
| Speed | 240fps |
| Network Interface | Gigabit Ethernet |
| Low Resolution (Pixel) | 720, 1080p, 3MP, 4MP, 5MP, 8MP : 480 × 256, 960H, Composite : CIF |
| Speed | 140fps@1080p |
| Protocol | TCP/IP, HTTP, DHCP |
| Application/Mobile App. | Windows 7, 8, 10, 11 (PC client system & IE), Mac / Android, iPhone for live & search |
| Web browser | Internet Explorer, Edge(IE mode), Chrome(IE extension) |
| Backup interface / device | USB2.0 × 2, USB3.0 × 1 / External HDD, Network, Thumb Drive |
| The number of HDD | 2 SATA (No capacity limit ; 12TB of more) |
| Power Consumption | 60W |
| Operating Temp. / Relative Humidity | 5 ~ 40°C (41 ~ 104°F) / Max. 80% non-condensing |
