KBD960-US FULL FUNCTON DESKTOP KEY BOARD
SKU: KBD960-US
KBD960-US FULL FUNCTON DESKTOP KEY BOARD

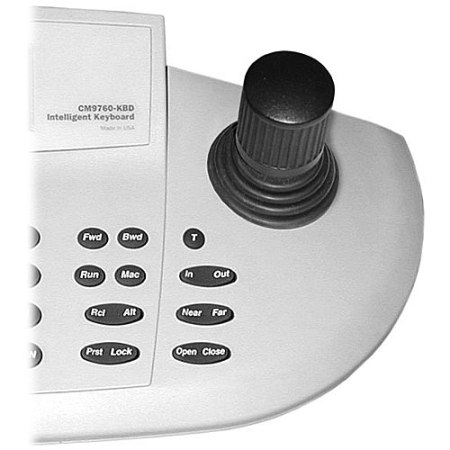

Joystick
Provides smooth and flexible maneuvering when controlling the camera's variable speed pan/tilt, zoom and dome control.

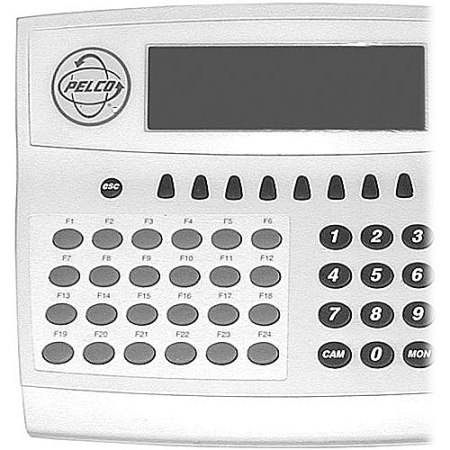

Programmable Keys
The keyboard features 24 programmable soft keys which can be assigned a description for quick call-up based on the camera's field of view rather than camera numbers.
Lens Control Keys
Additional lens control keys are located next to the joystick for one-handed operation.
Back-Lit LCD
For easy viewing in different lighting conditions.
Audible Alarm
An adjustable beeper alerts the operator to all alarm events occurring at the camera site.
Key Configuration
Download key function configuration to and from other KBD960 keyboards.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
KBD960-US FULL FUNCTON DESKTOP KEY BOARD
Joystick
Provides smooth and flexible maneuvering when controlling the camera's variable speed pan/tilt, zoom and dome control.
Programmable Keys
The keyboard features 24 programmable soft keys which can be assigned a description for quick call-up based on the camera's field of view rather than camera numbers.
Lens Control Keys
Additional lens control keys are located next to the joystick for one-handed operation.
Back-Lit LCD
For easy viewing in different lighting conditions.
Audible Alarm
An adjustable beeper alerts the operator to all alarm events occurring at the camera site.
Key Configuration
Download key function configuration to and from other KBD960 keyboards.
Specifications:
| Controls | Joystick: Vector-solving, variable-speed with zoom Display: LCD, backlit icon and alphanumeric Display Keys: Eight multi-function keys to access programming icons and menus Definable Keys: Twenty-four programmable soft keys Numeric Keys: Numeric keys (0-9) plus (Cam) and (Mon) Specialty Keys Turbo: Activates high speed mode of Spectra domes and Esprit positioning systems. Bkwd/Fwd: Initiates backward or forward camera sequencing of next/last camera Run/Mac: Initiates sequencing/calls pre-programmed macros Rcl/Alt: Recalls previously selected cameras/calls next camera in group Prst/Lock: Calls preset position scene/locks currently displayed camera to monitor |
| Interface | Operating Distance: 4,000 feet (1,219 m) on 24 AWG wire Communication: RS-485 Keyboard Connectors Two 8-pin RJ-45 connectors (female) (RS-485 serial ports) One 4-pin RJ-45 connector (female) (RS-232 serial port) Two 6-pin RJ-45 connectors (female) Keyboard Communication Interface: RS-485 Baud: 19200 Communication Parameters: 8 data bits, no parity, 1 stop bit |
| Power Requirements | 120VAC @ 60Hz |
| Power Consumption | 10 W |
| Dimensions (HxWxD) |
3.3 x 15.5 x 7.8" 8.3 x 39.4 x 19.8cm |
| Weight |
4.5 lb 2.08kg |
