Aiphone IXW-MAA Multi-Purpose Adaptor for IX Series
SKU: IXW-MAA
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Product Overview

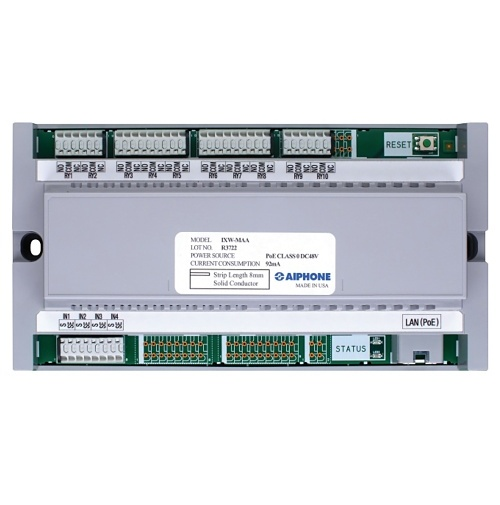

The IXW-MAA is a multi-purpose adaptor for the IX Series with four contact inputs and ten relay outputs. The inputs can be used to send a command to a specific station to perform a task. The relay ouputs are assigned to a specific station and programmed to change state when relay output 1 or 2 on the associated station changes state.
The IXW-MAA is surface mounted directly to the wall through the mounting points on either side, or it can be mounted on a standard DIN rail. Wire terminations connect directly to the inputs and outputs on the station. The IXW-MAA is programmed as an IXW-MA in IX Support Tool.
The IXW-MAA is surface mounted directly to the wall through the mounting points on either side, or it can be mounted on a standard DIN rail. Wire terminations connect directly to the inputs and outputs on the station. The IXW-MAA is programmed as an IXW-MA in IX Support Tool.
Main Features
- 802.3af PoE
- Four contact inputs
- Ten Form C relay outputs
- 24V AC/DC 500mA relay contact rating
- Mountable to a 170mm DIN rail or directly to a wall
General Information
Name: Aiphone IXW-MAA Multi-Purpose Adaptor for IX Series
Category: Aiphone, Communications, Intercoms & Telephone Entry, Intercom & Entry AccessoriesWEC Pro Rewards
Country of Origin: United States. Country of origin is subject to change.
| Field | Value |
|---|---|
| Brand Name | Aiphone |
| Manufacturer Part Number | IXW‑MAA |
| Product Series | IX |
| Product Type | Relay Adapter |
| Field | Value |
|---|---|
| Connectivity Technology | Wired |
| Certifications | NDAA Compliant: Yes |
| Field | Value |
|---|---|
| Form Factor | DIN Rail or Wall-Mounted |
| Input Voltage | PoE (802.3af) |
| Relay Outputs | 10 Form C dry relays, 24 V AC/DC, 500 mA |
| Contact Inputs | 4 programmable contact inputs |
| Power Draw | 4.48 W max |
| LAN | Ethernet (10BASE-T, 100BASE-TX) |
| Port Security | IEEE 802.1X |
| Field | Value |
|---|---|
| Country of Origin | United States (US) |
| Indoor/Outdoor Use | Indoor only |
