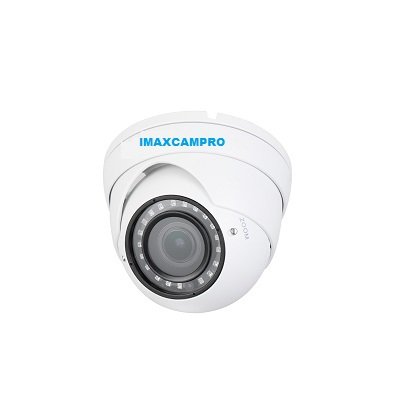

4MP HDCVI IR Eyeball Camera
· Max 30fps@4MP · HD and SD output switchable · 2.7-13.5mm vari-focal lens · Max. IR length 30m, Smart IR · IP67, DC12V
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
· Max 30fps@4MP · HD and SD output switchable · 2.7-13.5mm vari-focal lens · Max. IR length 30m, Smart IR · IP67, DC12V
System Overview
Experience superior clarity of real-time 4Mega-pixel video with the simplicity of using existing cabling infrastructure. The Lite series features compact design and high quality image at friendly price. It offers various vari-focal/fixed lens models with multi-language OSD and HD/SD switchable output. The structure flexibility and best cost-performance makes lite series camera an ideal choice for SMB solutions.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. * Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission without any loss. It supports up to 700m for 4MP HD video via coaxial cable, and up to 300m via UTP cable.* *Actual results verified by real-scene testing in Imaxcampro test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.
Smart IR
The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Imaxcampro unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.
HD/SD Switchable
The camera supports switchable HDCVI high definition video output and CVBS standard definition video output. The two formats can be switched over through OSD menu or by PFM820(UTC controller). This feature makes the camera to be compatible with both HCVRs and existing analog DVRs and also facilitates debugging through analog testers.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.
5X Optical Zoom
With the adoption of 2.7-13.5mm vari-focal lens, the camera allows 5X optical zoom, better adapting the requirements under various monitoring scenes. The camera is able to cover a wider angle of view range at the wide end and is suitable for monitoring the faraway objects at the tele end.
Large Aperture Lens
The camera adopts F1.3 large aperture lens. With higher amount of absorbed light, the camera presents an impressive lowlight performance.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
| Make | Imaxcampro Technology |
|---|---|
| Manufacturer | Imaxcampro Technology Ltd |
| Model code | IMAXHAC-HDW1400R-VF |
| Series | Lite series |
| Resolution TVL | 4MP TVL resolution |
| HD | Yes |
| Digital (DSP) | Yes |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Sensitivity lux | 0 ~ 0.03 lux |
| Electrical Specifications | Voltage: 12 V DC Power Consumption: 4.6 W |
| Motion Activated | Yes |
| Focal Length mm | 2.7 ~ 13.5 |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 2688 x 1520 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/25 ~ 1/100000s |
| S/ N (Signal/ Noise) Ratio dB | 65 |
| Signal Mode | PAL, NTSC |
| Physical Specifications | Dimension mm: 119 x 97 Weight g: 560 |
| Environmental Specifications | Operating Temperature oC: -40 ~ +60 C (-40 ~ 140 F) Protection: IP67 Operating Humidity %: 0 ~ 90 |
