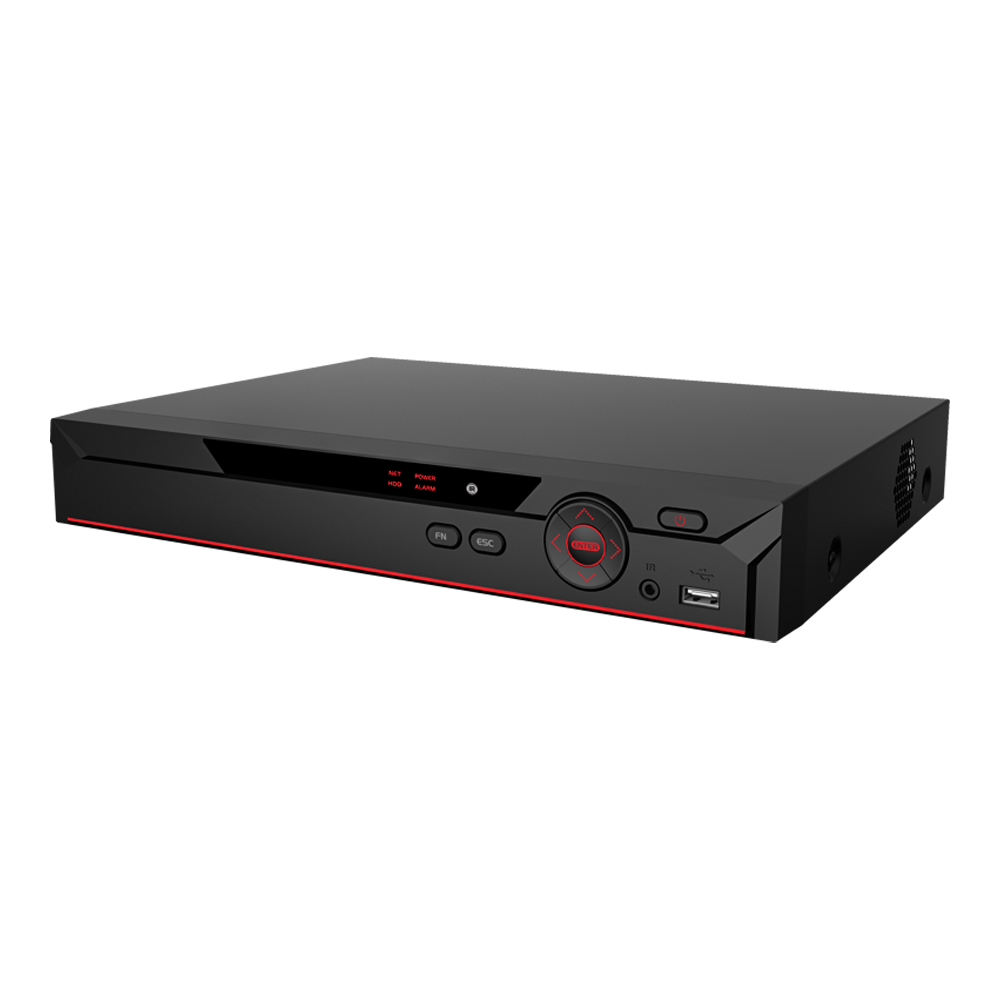

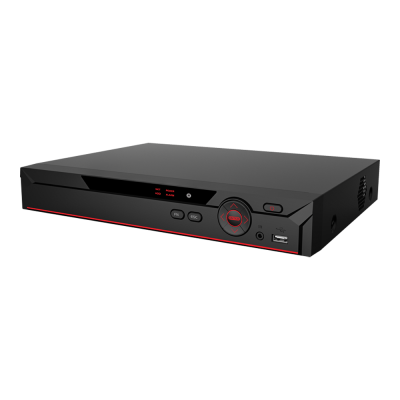

4 Ch Penta-brid 4K Mini 1U DVR | WECXVR701HE-04-4KL-X
Features
Embedded processor
H.264+/H.264 dual-stream video compression
Support HDCVI/AHD/TVI/CVBS/IP video inputs
Supports 8 channels of IPC access, each channel up to 8MP input
Max 32Mbps Incoming Bandwidth
IoT & POS functionalities
Smart Search and Intelligent Video System
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
More Information
System Compression H.265+/H.265/H.264+/H.264
Main Processor Embedded Processor
Operating System Embedded Linux
Video Interface 1 HDMI, 1 VGA
Video Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Multi-Screen Display 1/4 (IP extension mode: disabled), 1/4/16 (IP extension mode: enabled)
HDCVI Camera Input 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
IP Camera Input 4+4 Channel, each channel up to 8MP
OSD Yes
Recording Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Recording Frame Rate
Main stream: the 1st channel 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), others 4K-N(1~7fps), 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF(1~25/30fps)
Sub steram: 960H(1~15fps); D1/CIF(1~25/30fps)
Bit Rate 32Kbps ~ 6144Kbps Per Channel
Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Playback Channels 1/4
Playback Search Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Audio In 4
Audio Out 1
2 Way Audio Reuse audio in/out, RCA
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm In 8
Alarm Relay Output 3
Network Interface 1 RJ-45 Port (1000M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Network Max. Users 128 users
Interoperability ONVIF 16.12, CGI Conformant
Mobile iPhone, Android
RS485 1 Port, for PTZ Control
USB 2 USB Ports (2 USB 2.0)
RS232 N/A
RS422 N/A
Power Supply DC12V/4A
Power Consumption <10W (Without HDD)
Internal HDD 1 SATA Port, up to 10TB capacity for each disk
e-SATA N/A
Operating Conditions -10°C ~ +55°C (+14°F ~ 131°F), 0~90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ 158°F), 0~90% RH
Dimensions Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")
Weight Net Weight (without HDD) 1.2kg (2.6lb) Gross Weight 1.9kg (4.2lb)
